Electrical Diagrams

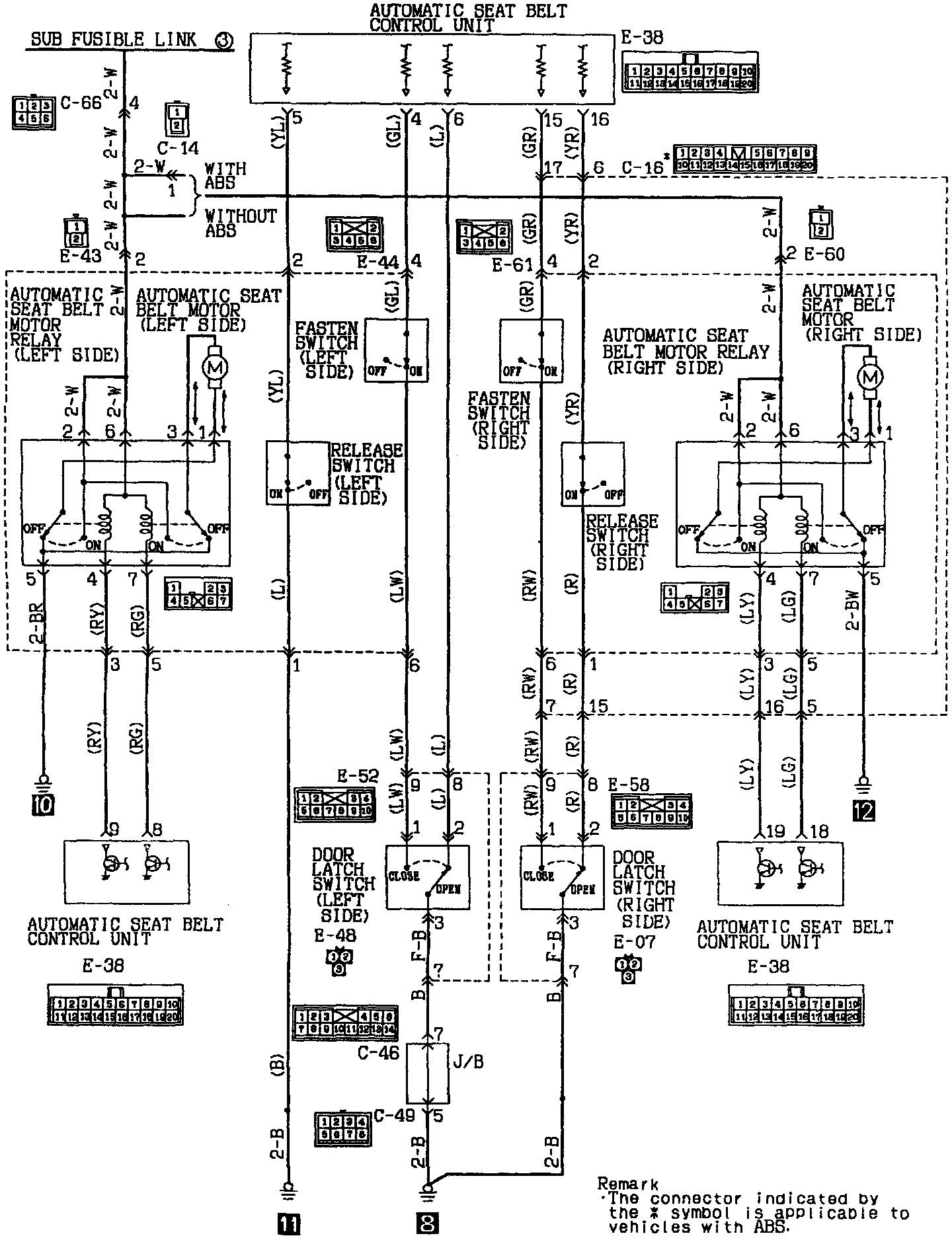

Automatic Seat Belt Circuit (Part 1 Of 2):

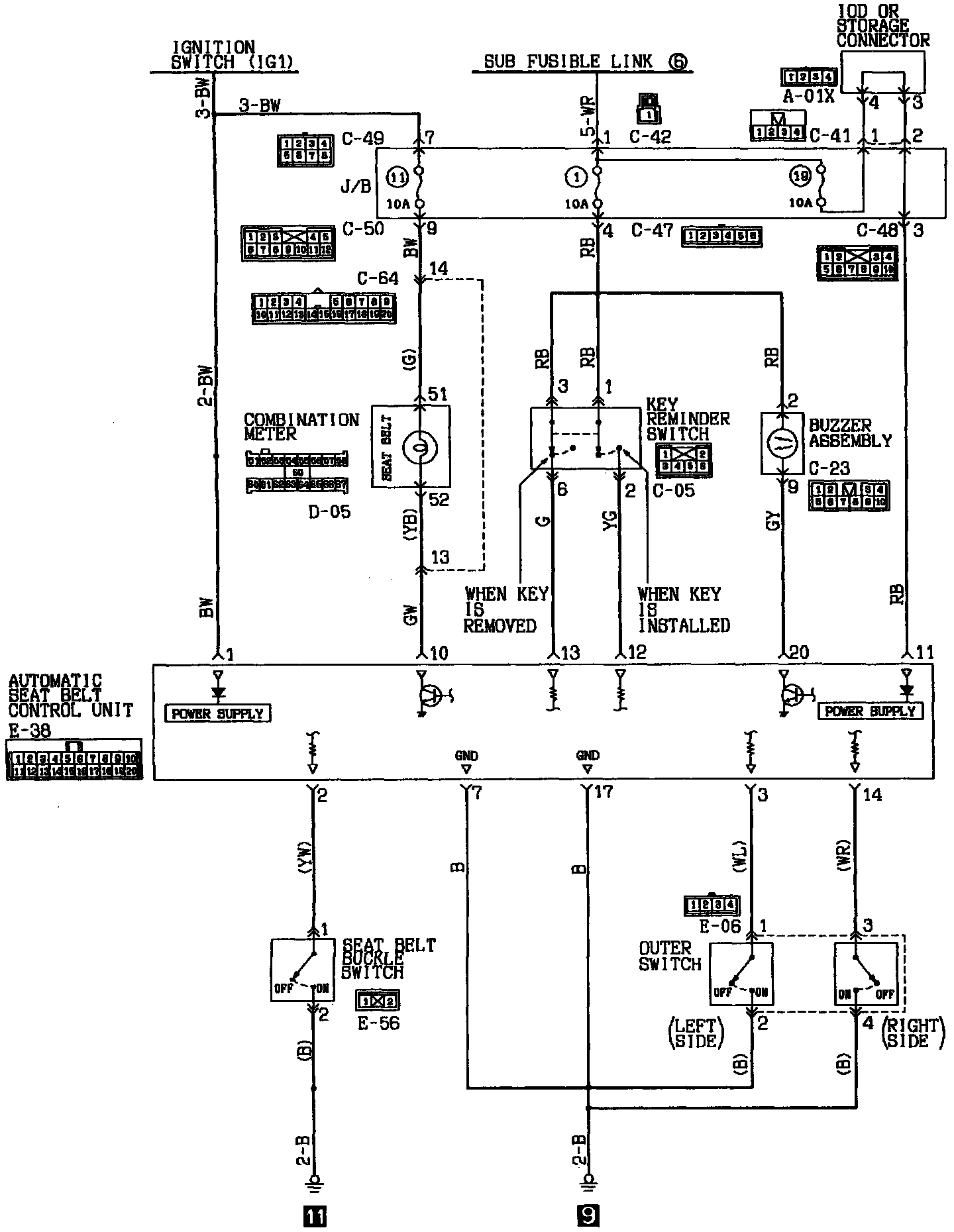

Automatic Seat Belt Circuit (Part 2 Of 2):
