Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures

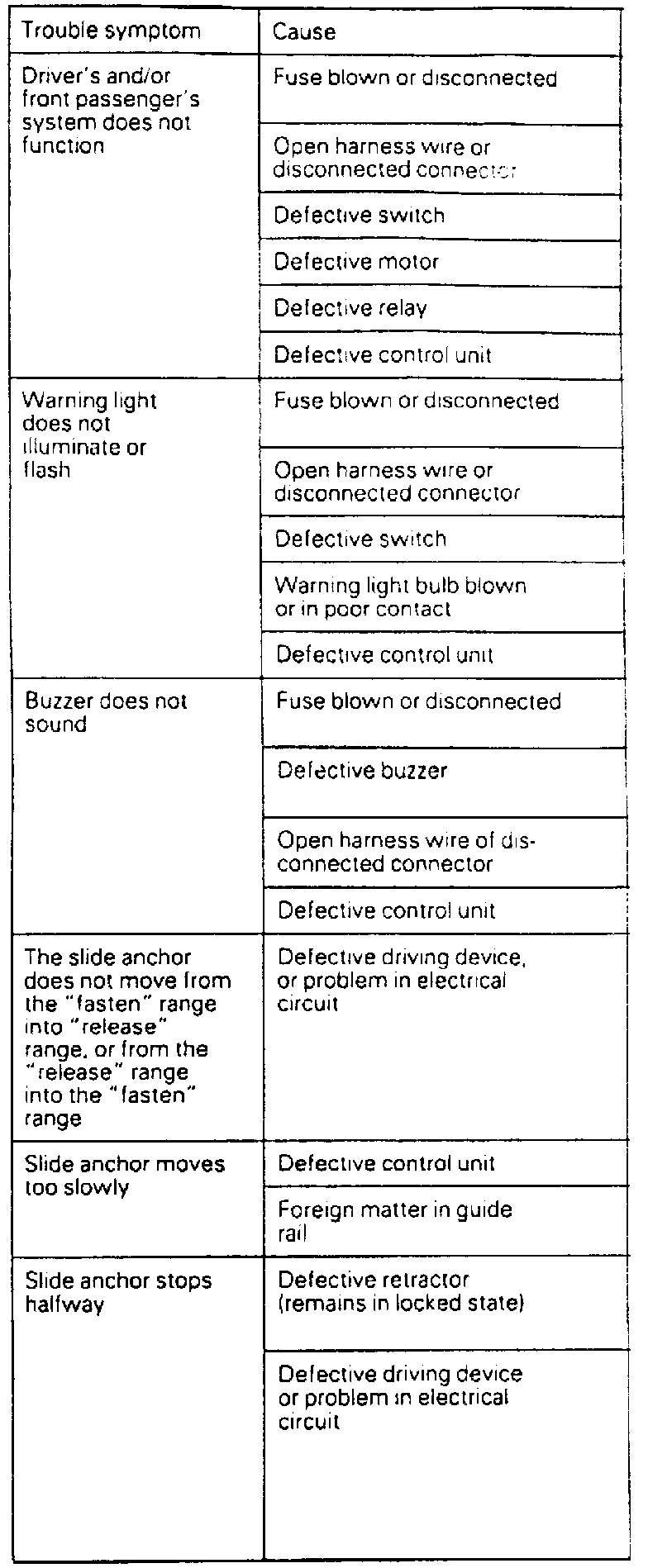

Fig. 2 Troubleshooting Chart:
