Reed Switch Inspection

Reed Switch Inspection:

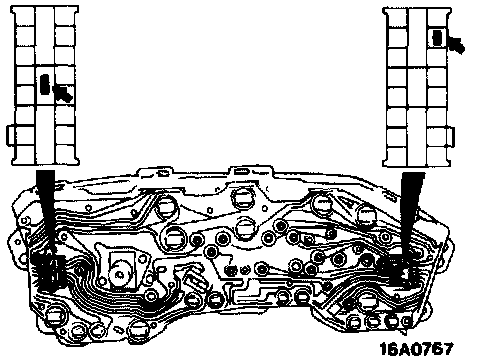

Use circuit tester to check circuit repeats off/on between terminals when speedometer shaft turned several times.
