Steering Column Removal and Installation
Steering Column Removal and Installation

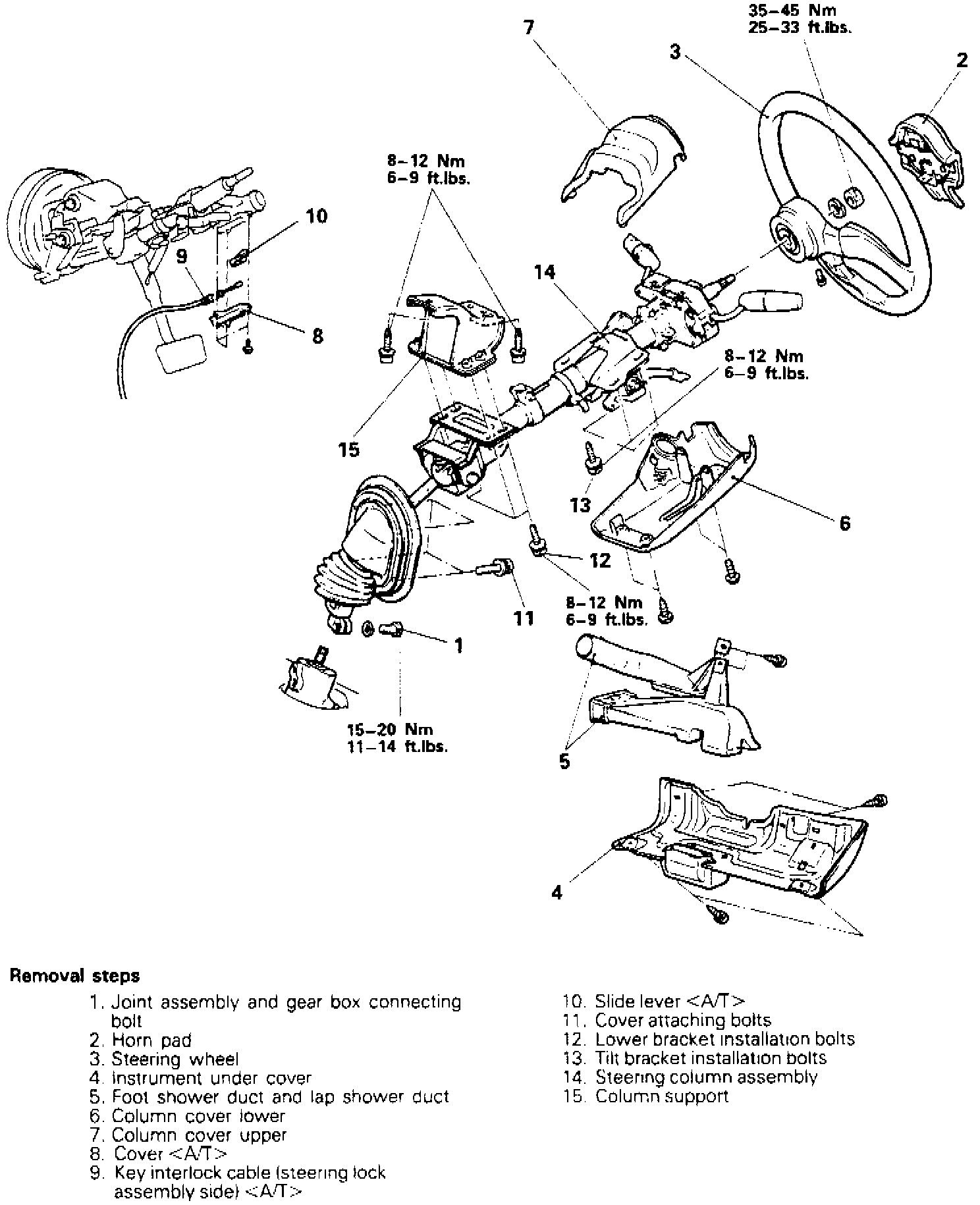

Fig.8 Exploded View Of Steering Column Assembly:
