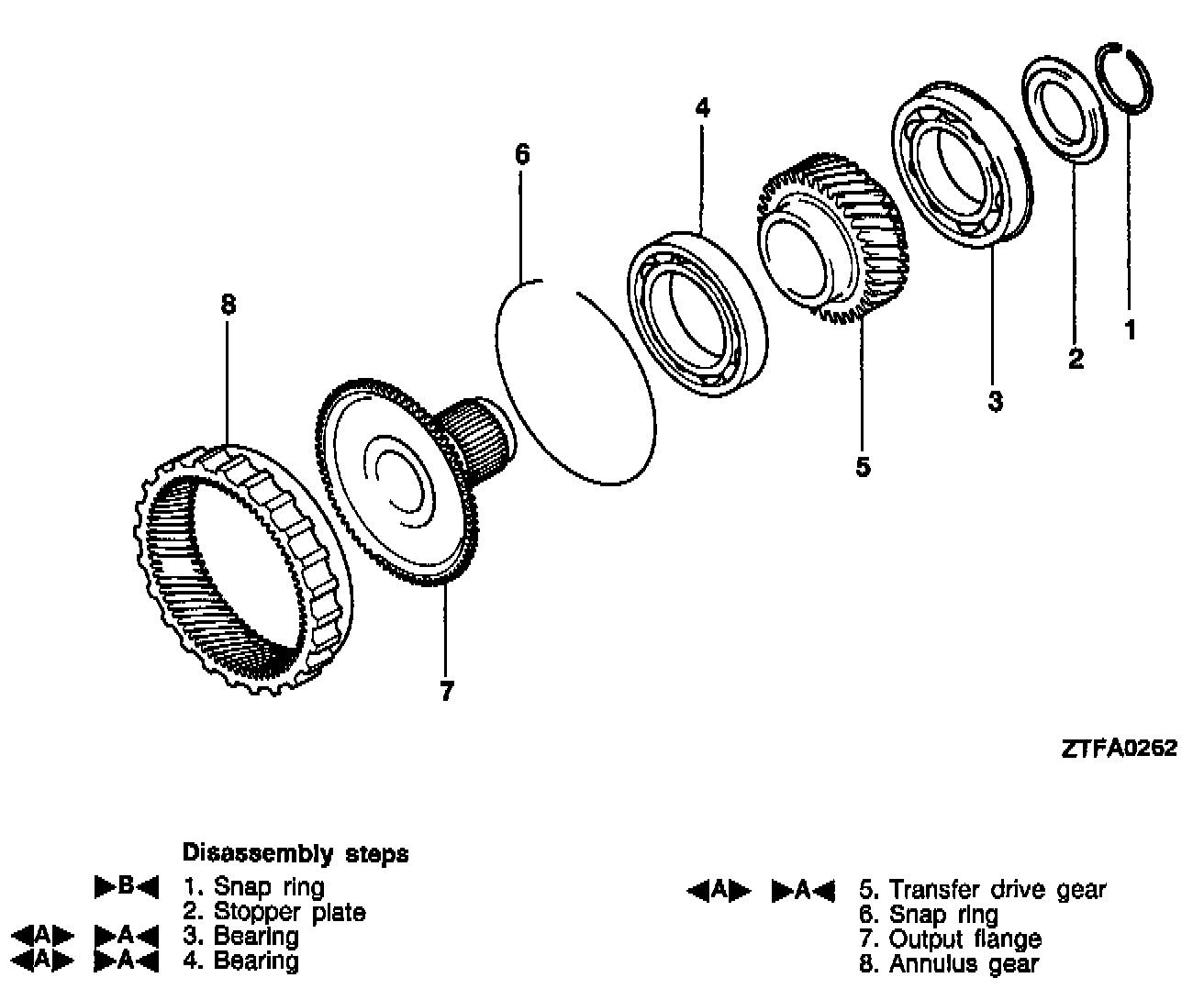

Dissassembly

BEARING/TRANSFER DRIVE GEAR REMOVAL

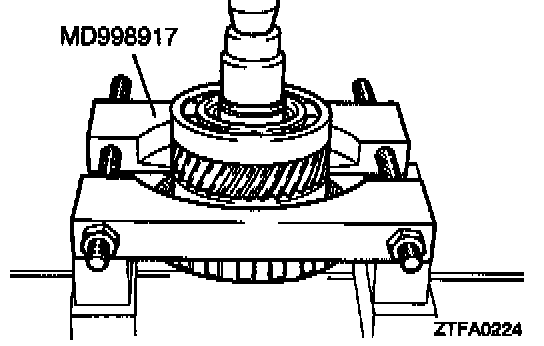

1. Use the special tool to remove the transfer drive gear with two bearings from the output flange.




Caution: Install the special tool in position between the output flange and bearings.
