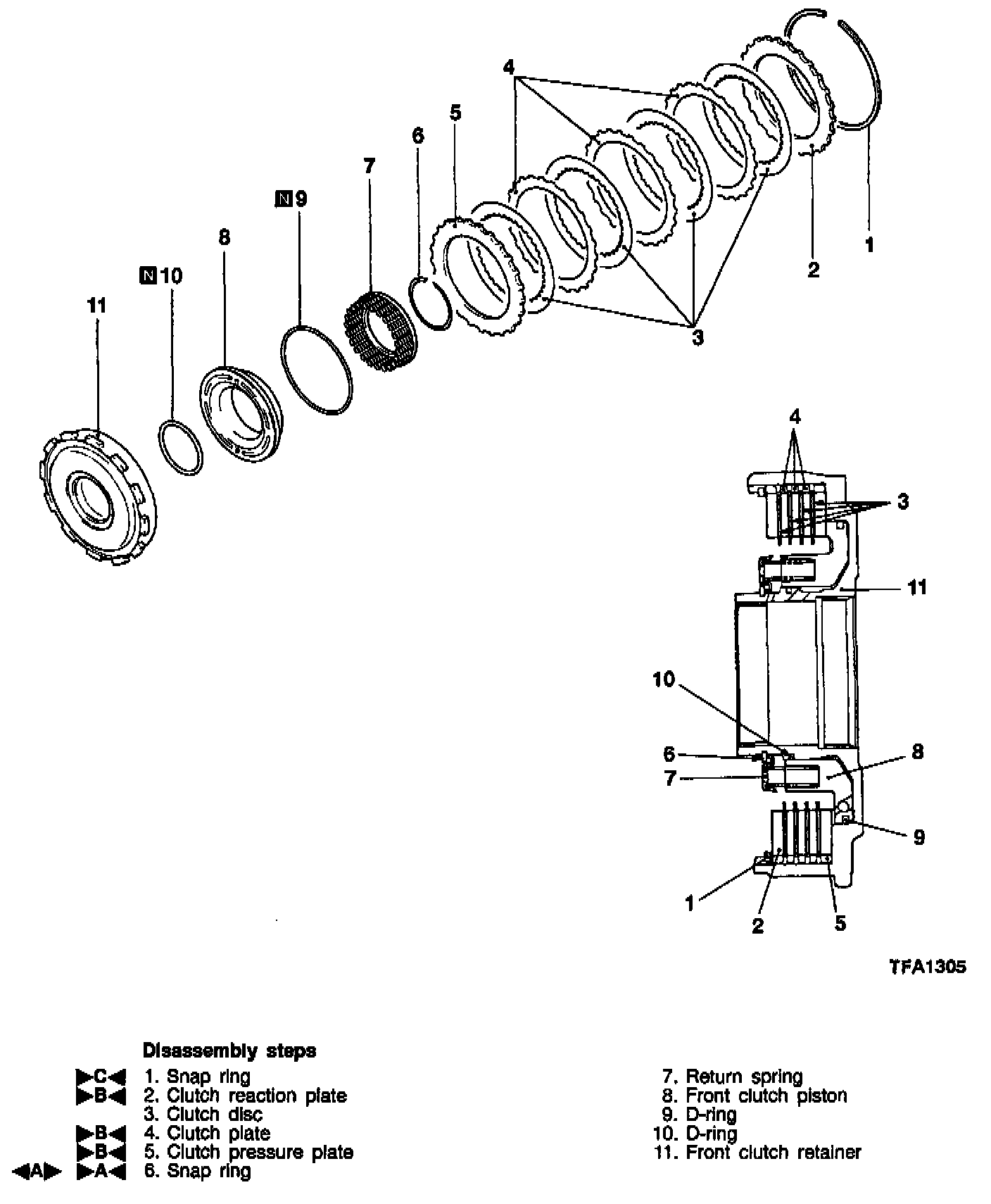

Dissassembly

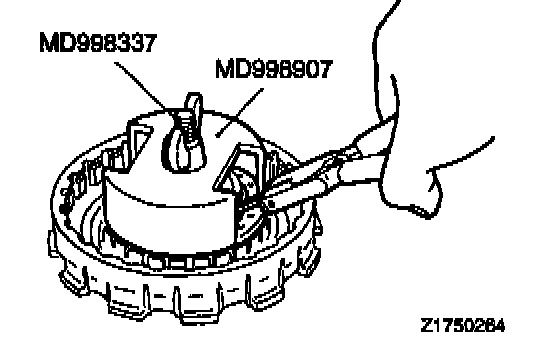

SNAP RING REMOVAL

1. Compress the return spring with the special tool.
2. Remove the snap ring.
