Home >> Eagle >> 1994 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Transmission and Drivetrain >> Testing and Inspection

Transmission and Drivetrain: Testing and Inspection

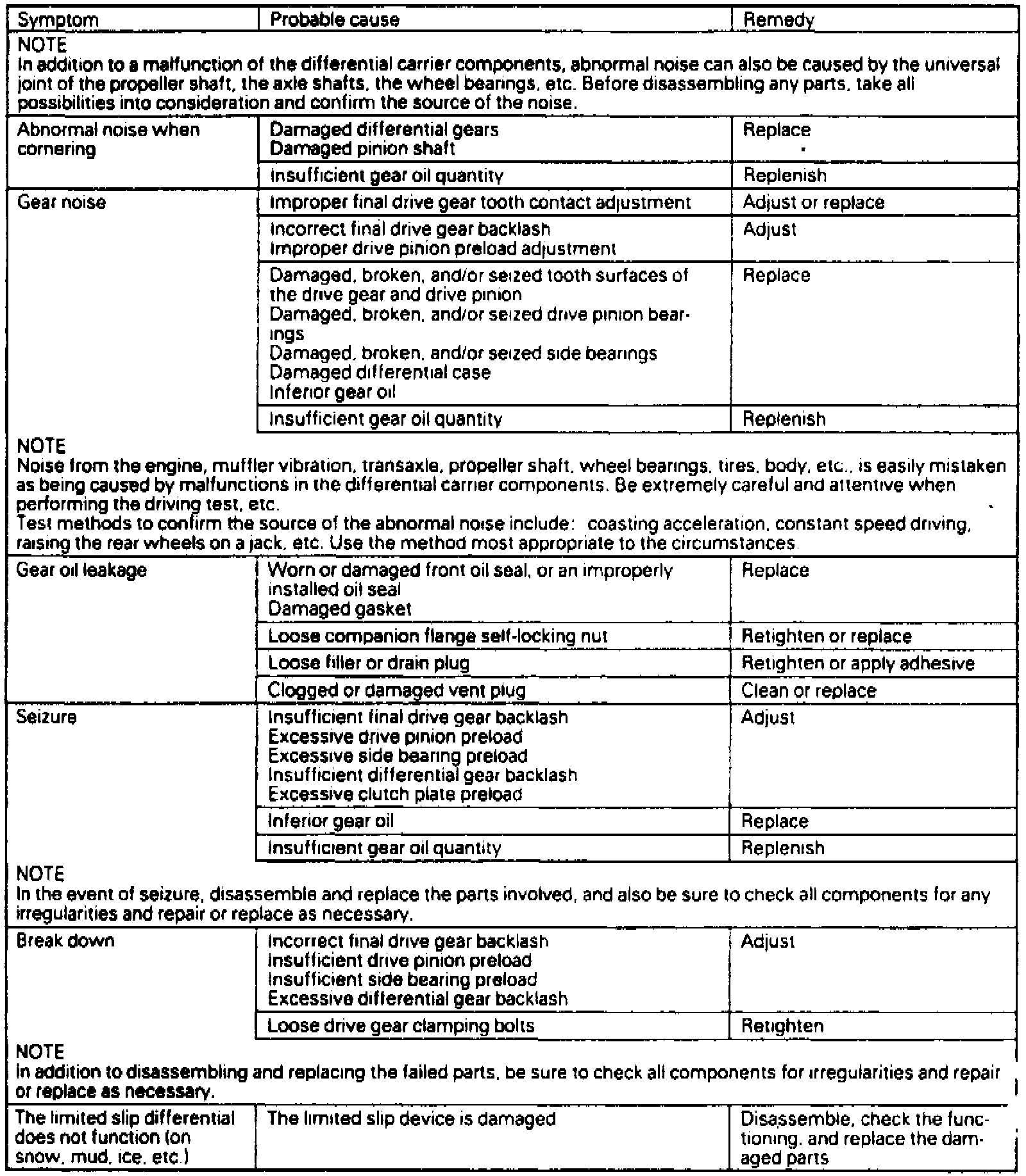

Fig.1 AWD Troubleshooting Chart Part 1/2:

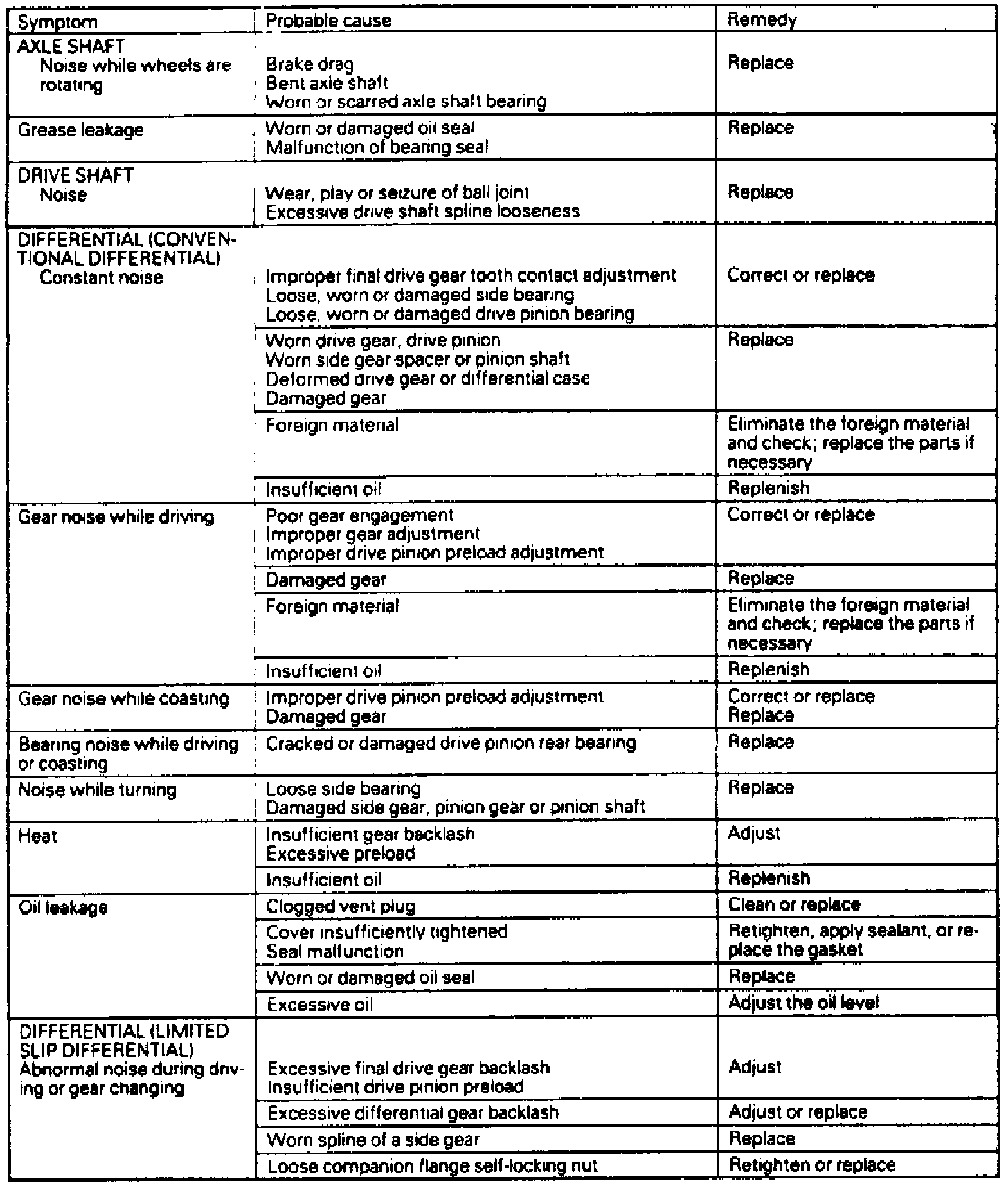

Fig.1 AWD Troubleshooting Chart Part 2/2:
