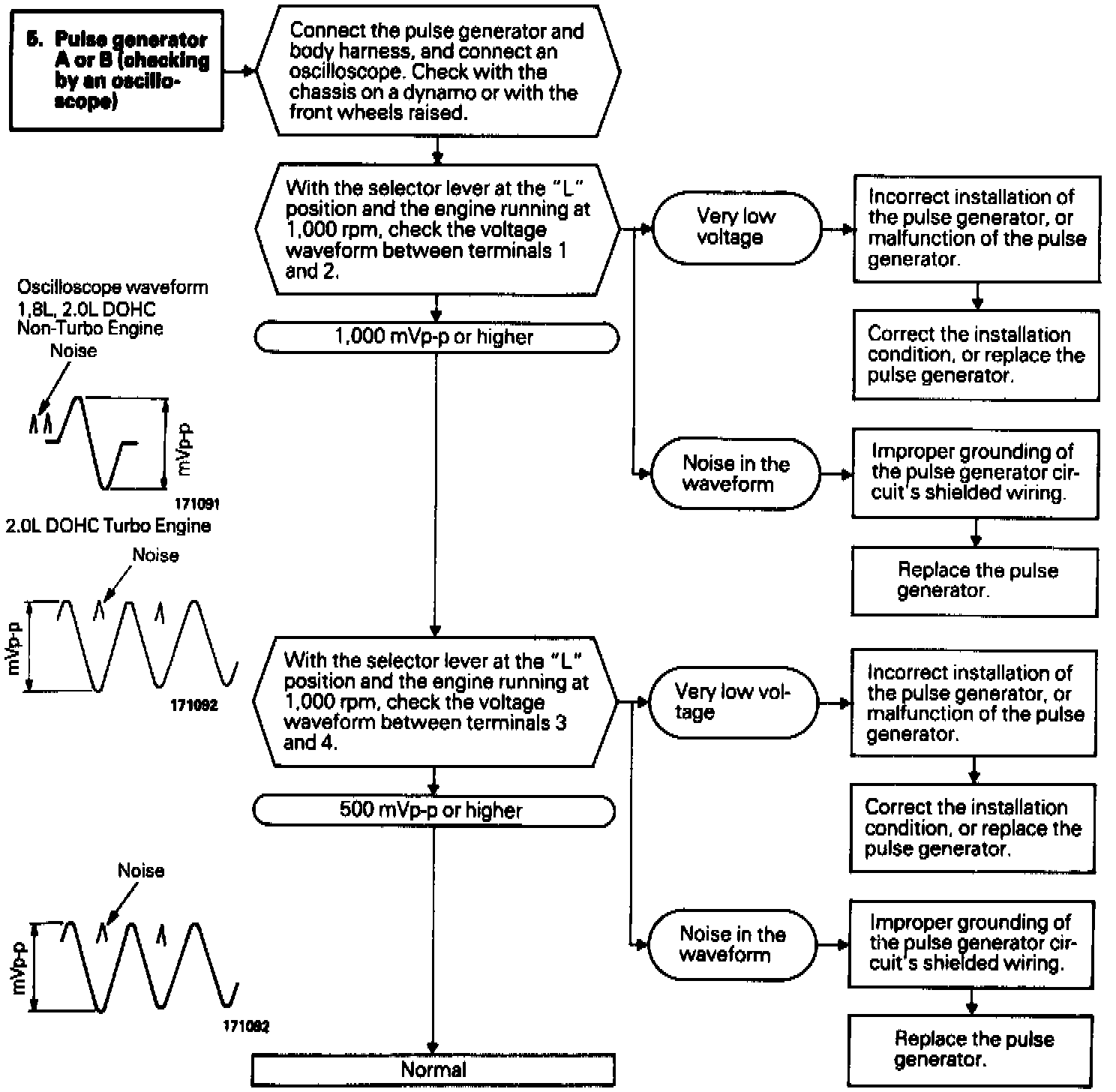

5 Inspection of Pulse Generator A or B With Oscilloscope
5 Inspection of Pulse Generator A or B With Oscilloscope
