Data Link Connector - Oxygen Sensor
>>
Locations
Data Link Connector - Oxygen Sensor: Locations

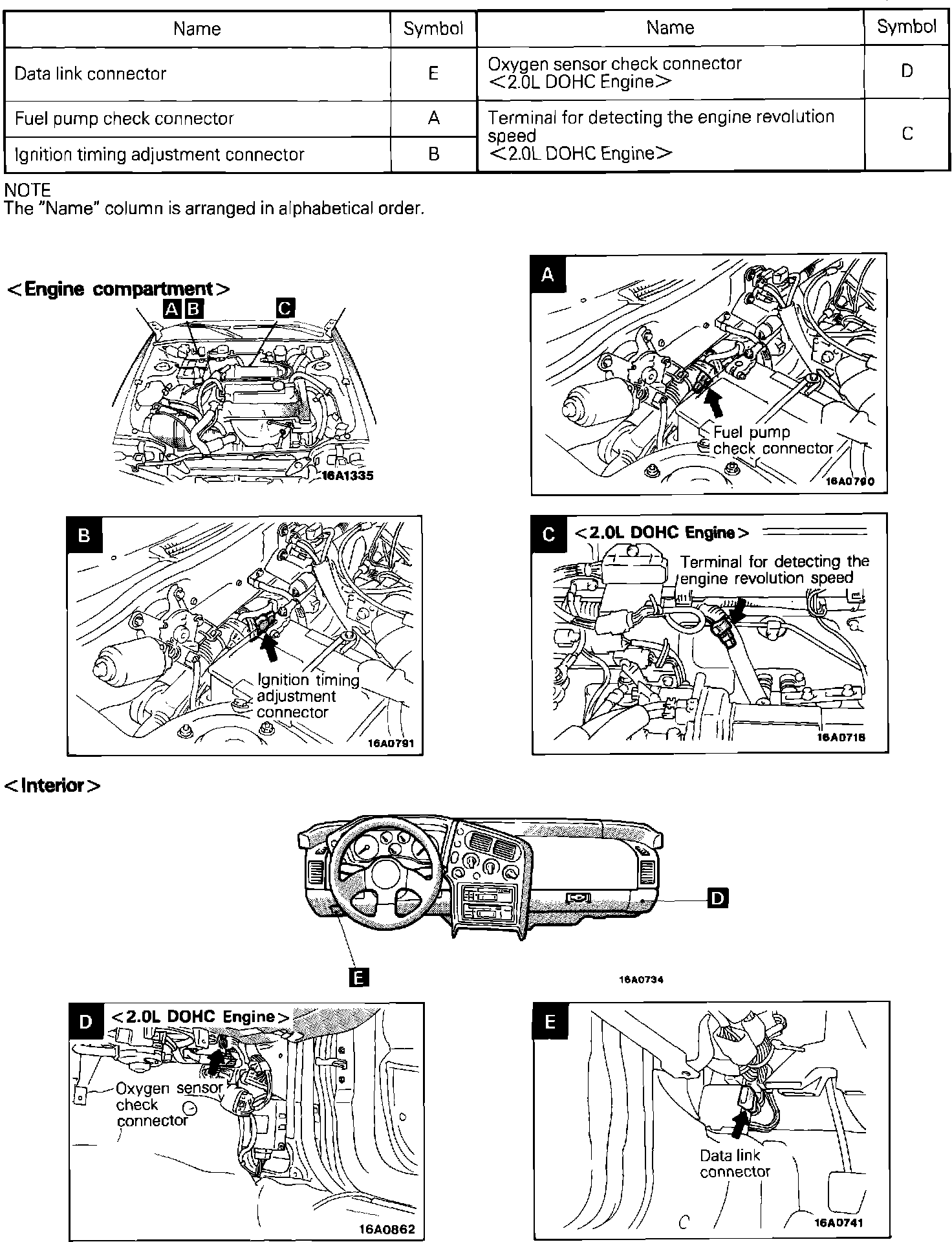

Inspection Terminal Location:
