Power Window Switch: Testing and Inspection

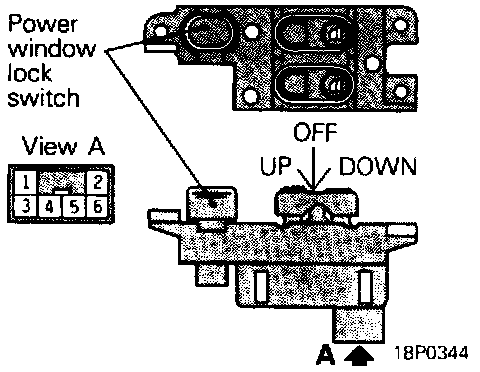

POWER WINDOW MAIN SWITCH

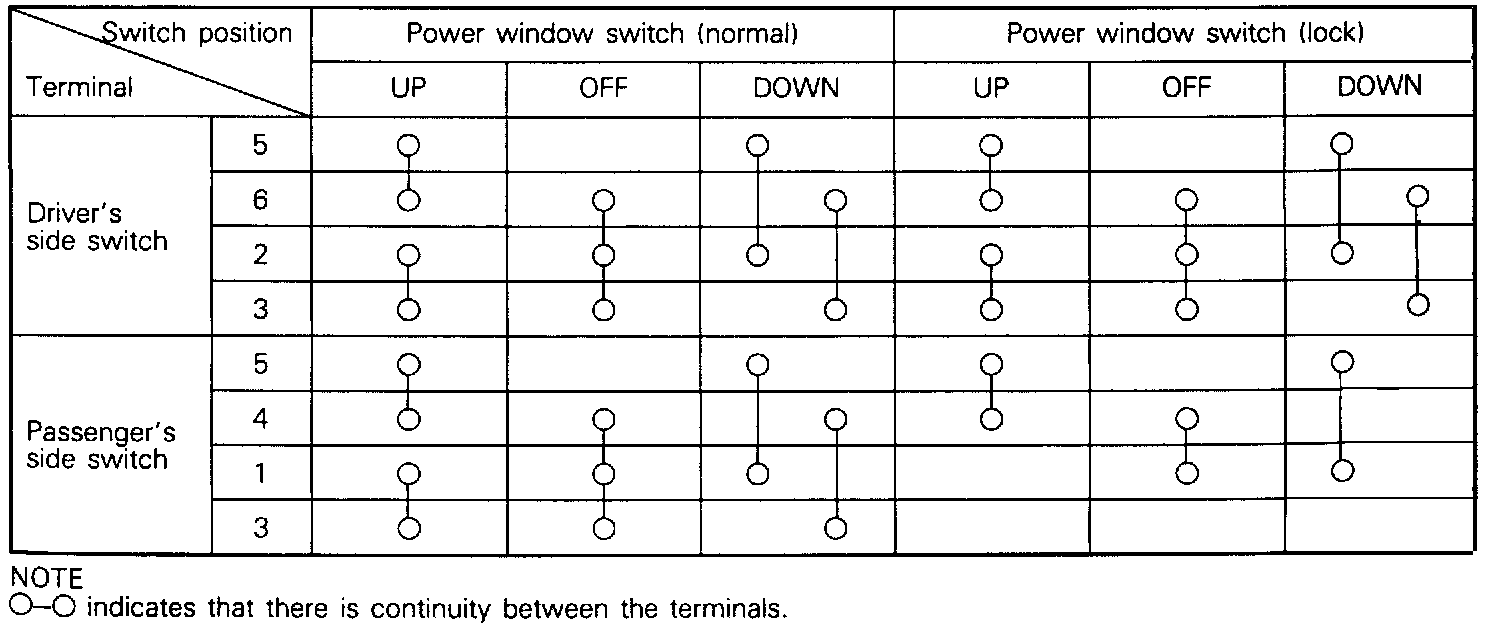

Check for continuity in accordance to the following connection table.

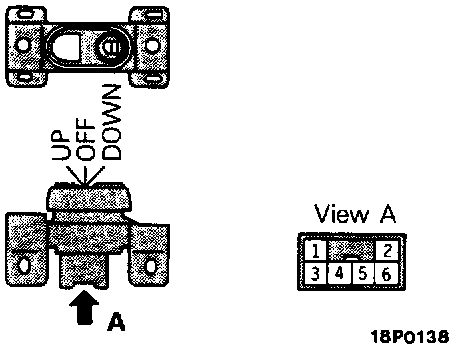

POWER WINDOW SUB SWITCH

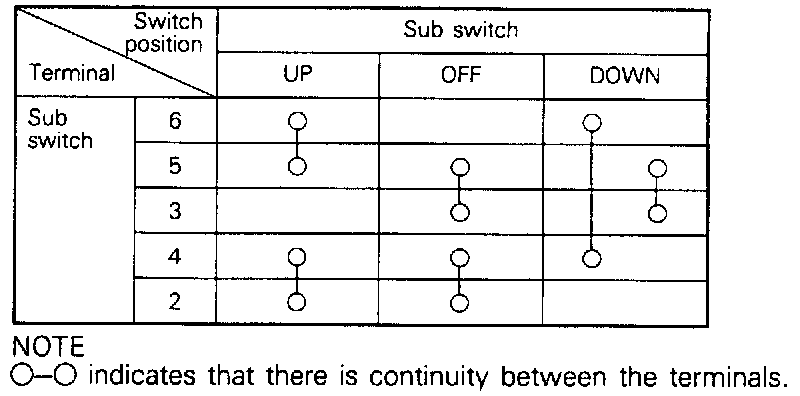

Check for continuity in accordance to the following connection table.
