Eagle
>>
1994
>>
Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Instrument Cluster
>>

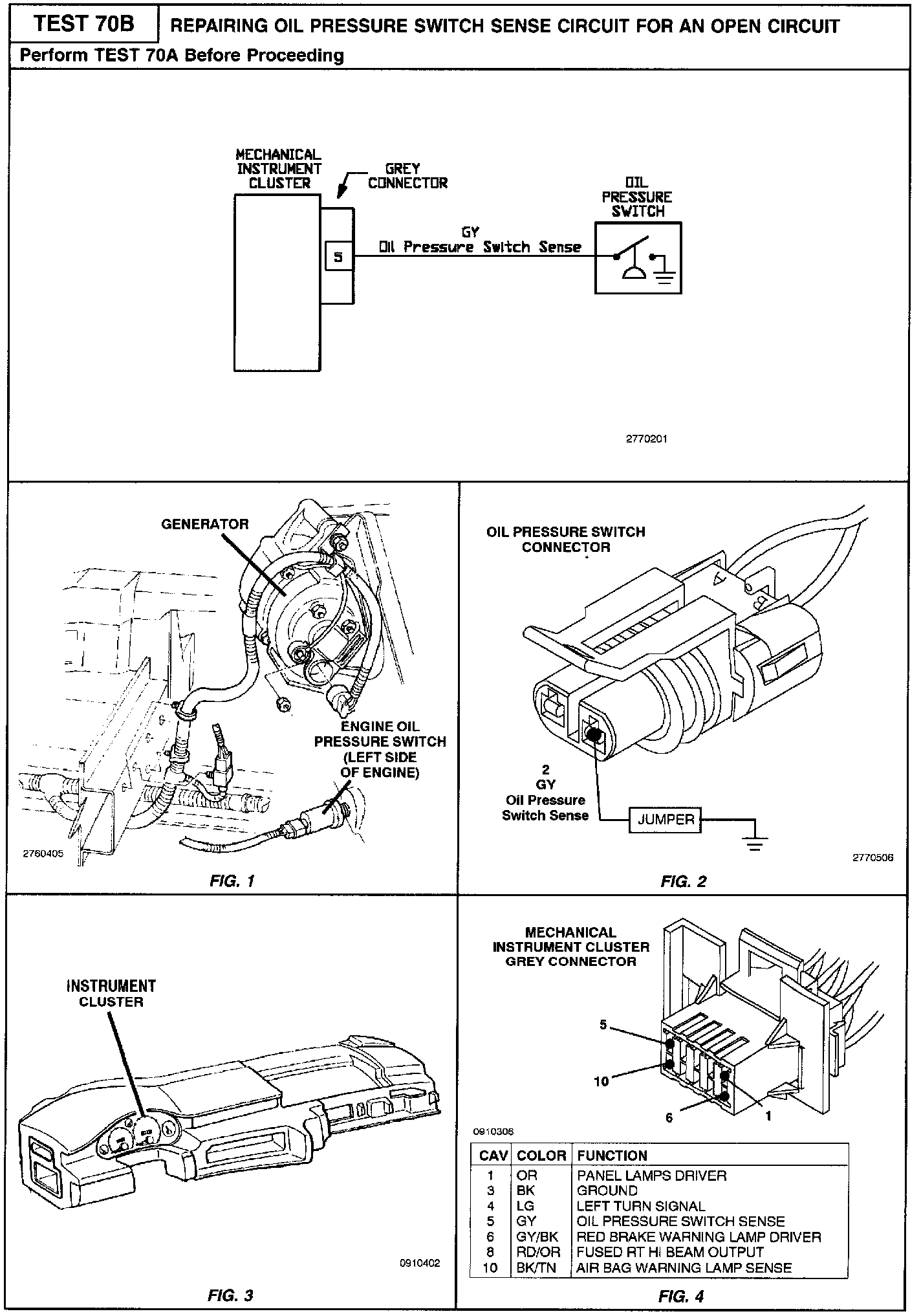

70B Oil Pressure Switch Sense Circuit Open
70B Oil Pressure Switch Sense Circuit Open
Related Images:
Diagnostic Chart:
