TC-44A Auto Shutdown (ASD) Relay Control Circuit

Part 1 Of 2:



Part 1 Of 2:

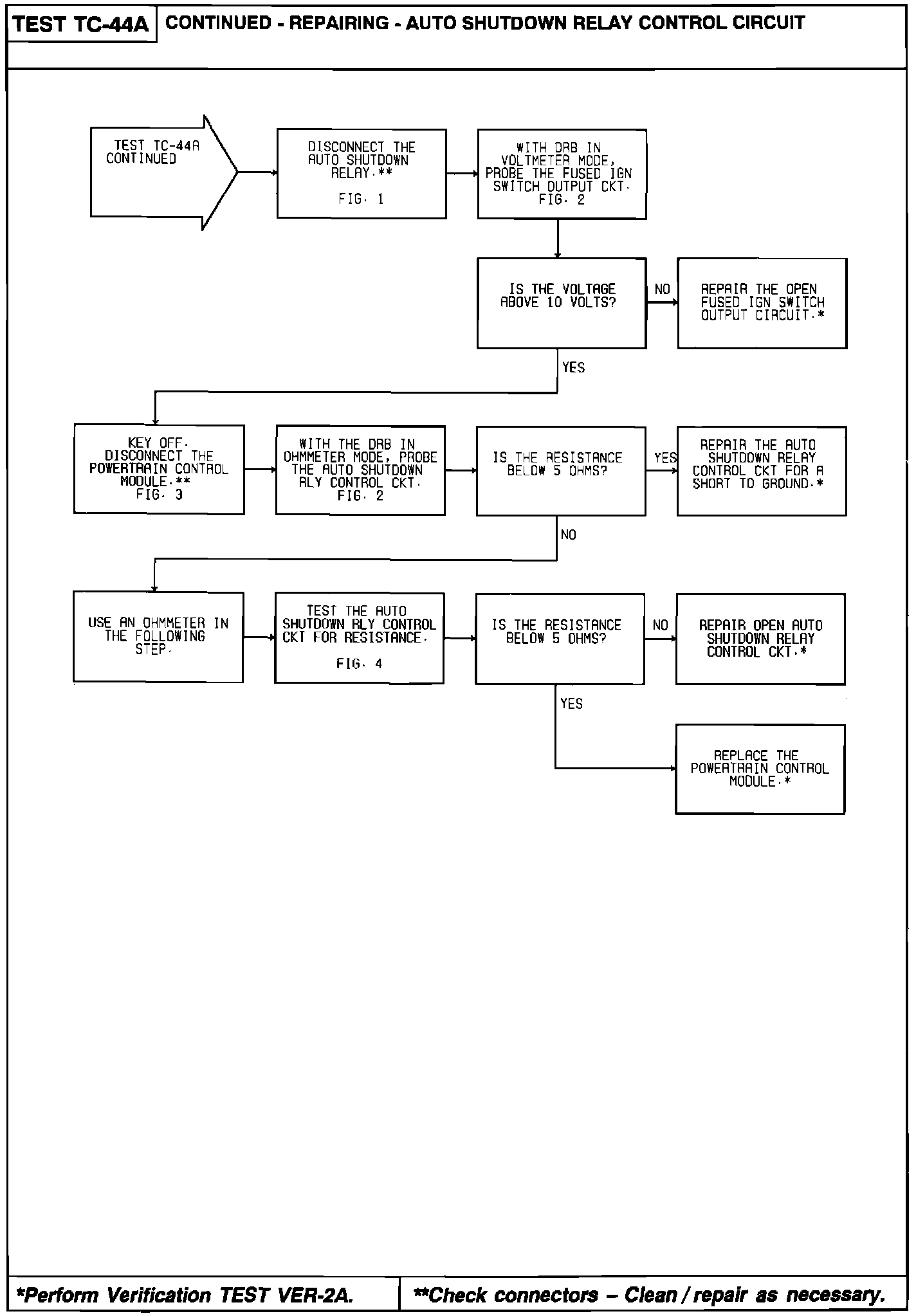

Part 2 Of 2:



Part 2 Of 2:
