Home
>>
Eagle
>>
1994
>>
Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Diagrams
>>
Connector Views
>>

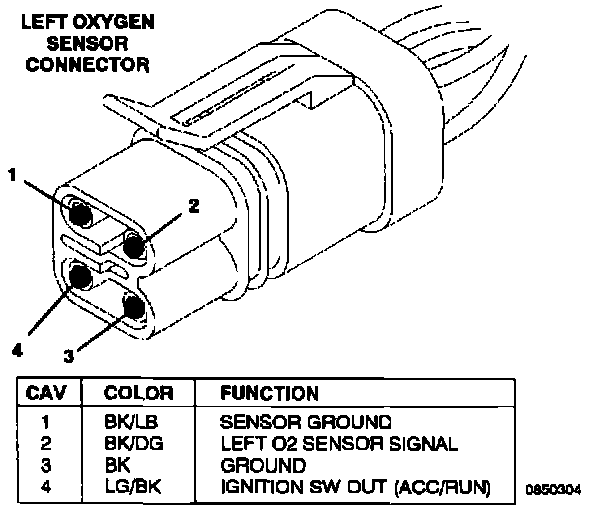

Left Oxygen Sensor Connector
Left Oxygen Sensor Connector
