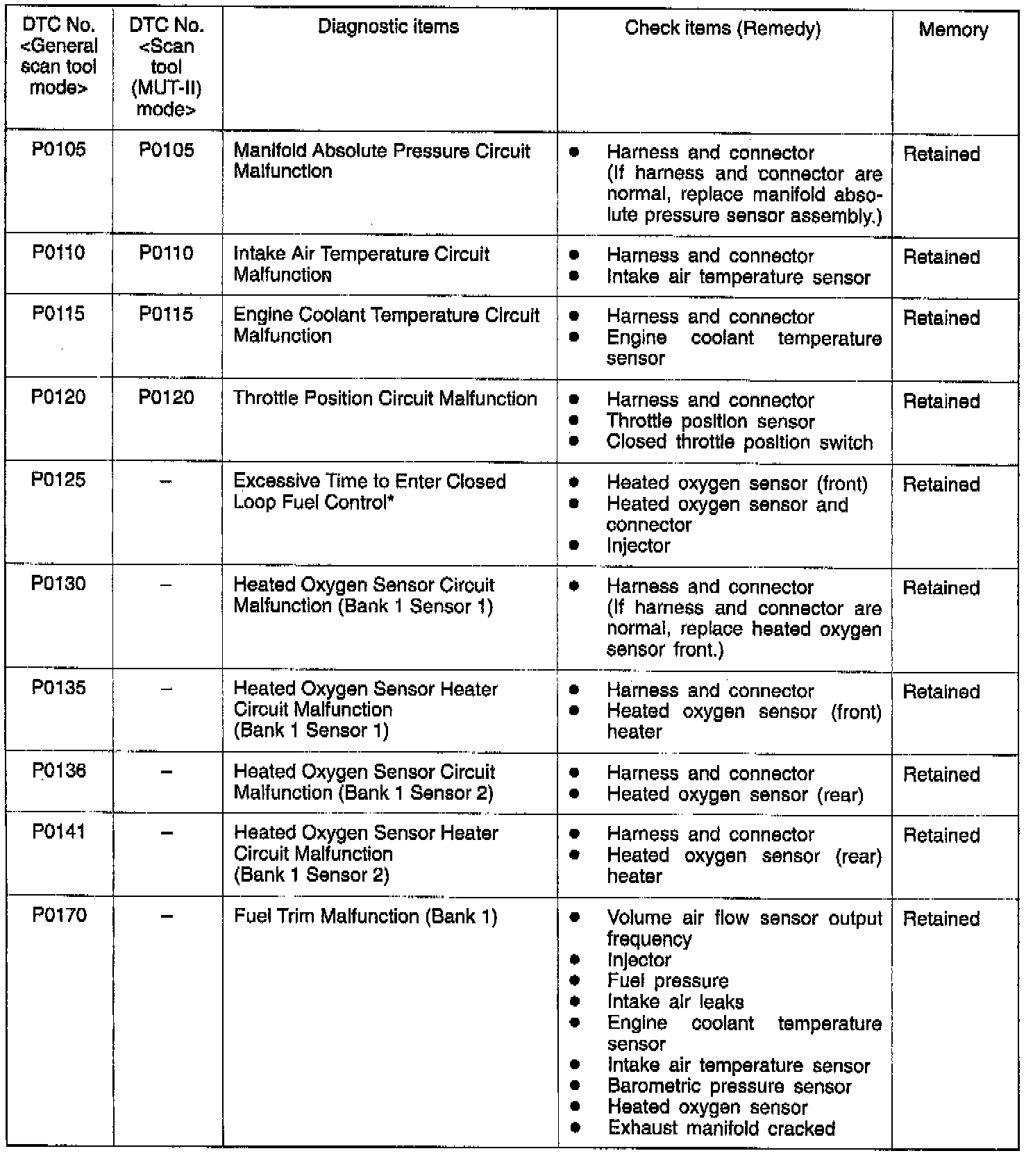

P Codes

With California Emissions:

With California Emissions:

With California Emissions:

NOTES:
1. Do not replace the engine control module (ECM) until a thorough terminal check reveals there are no short/open circuits

2. After the ECM detects a malfunction, a diagnostic trouble code is recorded when the engine is next started and the same malfunction is re-detected.. However, for items marked with an asterisk "*", the diagnostic trouble code is recorded on the first detection of the malfunction.

3. Sensor 1: indicates sensors which are mounted closest to the engine.

4. Sensor 2: indicates sensors which are mounted next-closest to the engine.
