Lighting and Horns: Service and Repair

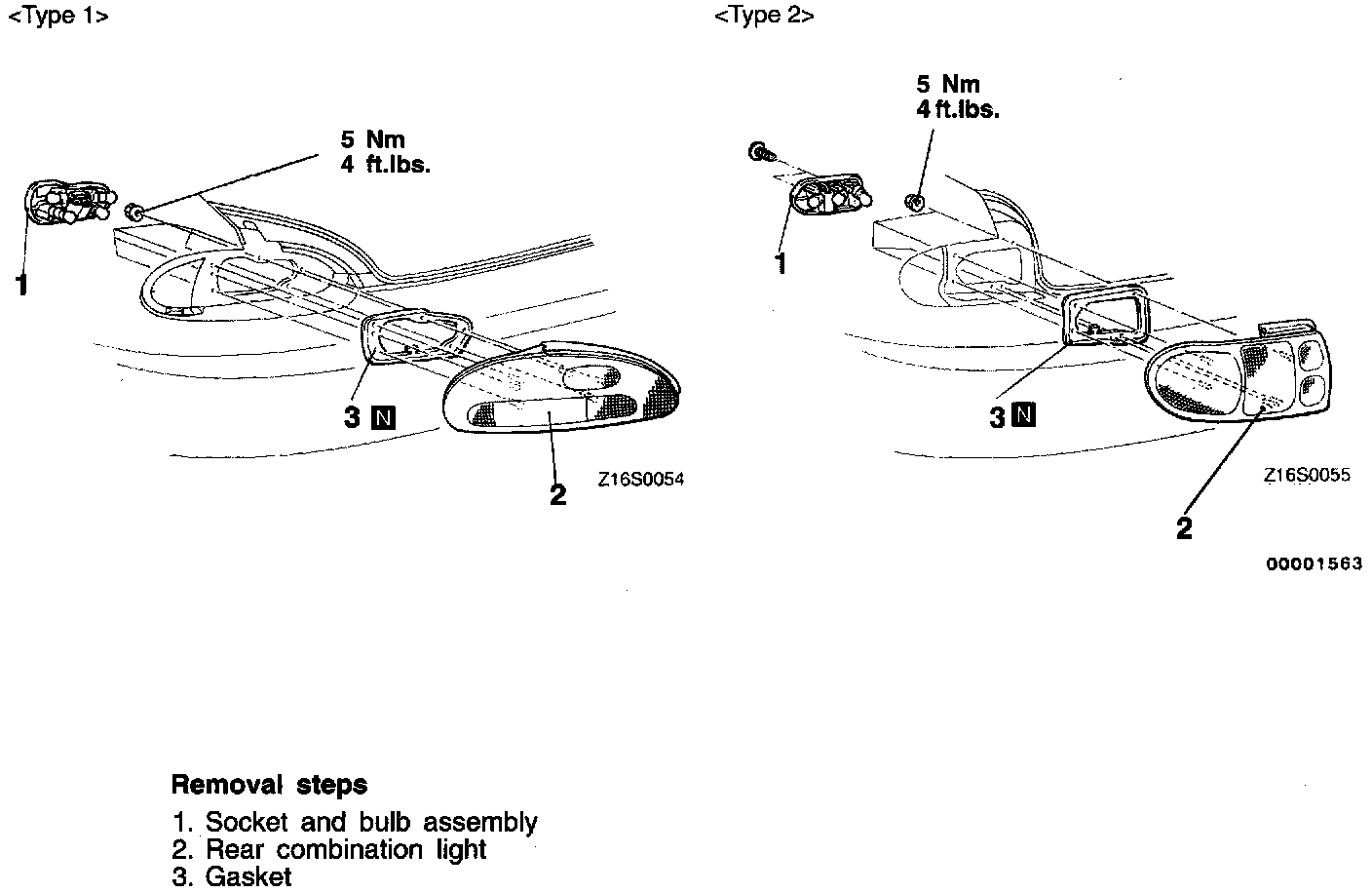

Rear Combination Light - Removal And Installation:

REMOVE
1. Socket and bulb assembly
2. Rear combination light
3. Gasket

Gasket Installation:

INSTALL

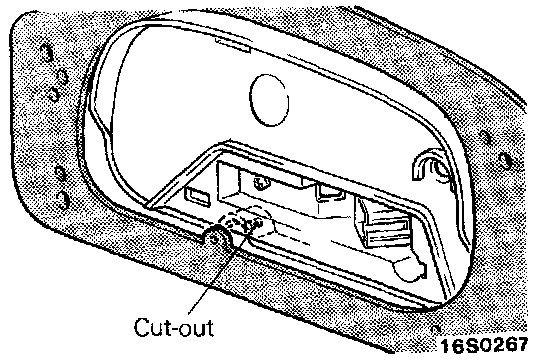

1. Gasket -- Securely insert the gasket onto the lamp unit cut-out.
2. Rear combination light
3. Socket and bulb assembly
