Home >> Eagle >> 1995 >> Summit Wagon FWD L4-1795cc 1.8L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning

Heating and Air Conditioning

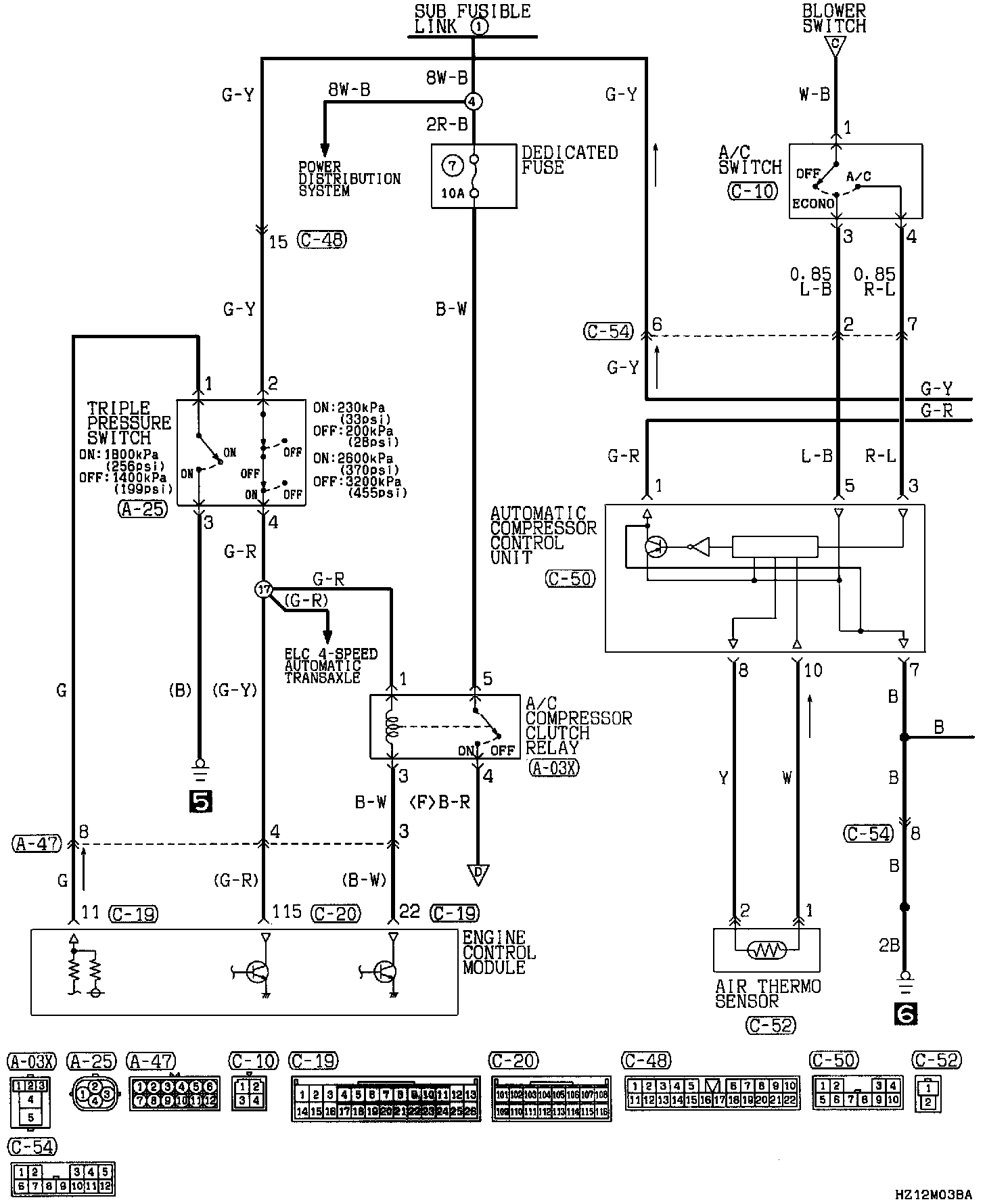

Heater And Air Conditioning Circuits (Part 1 Of 4):

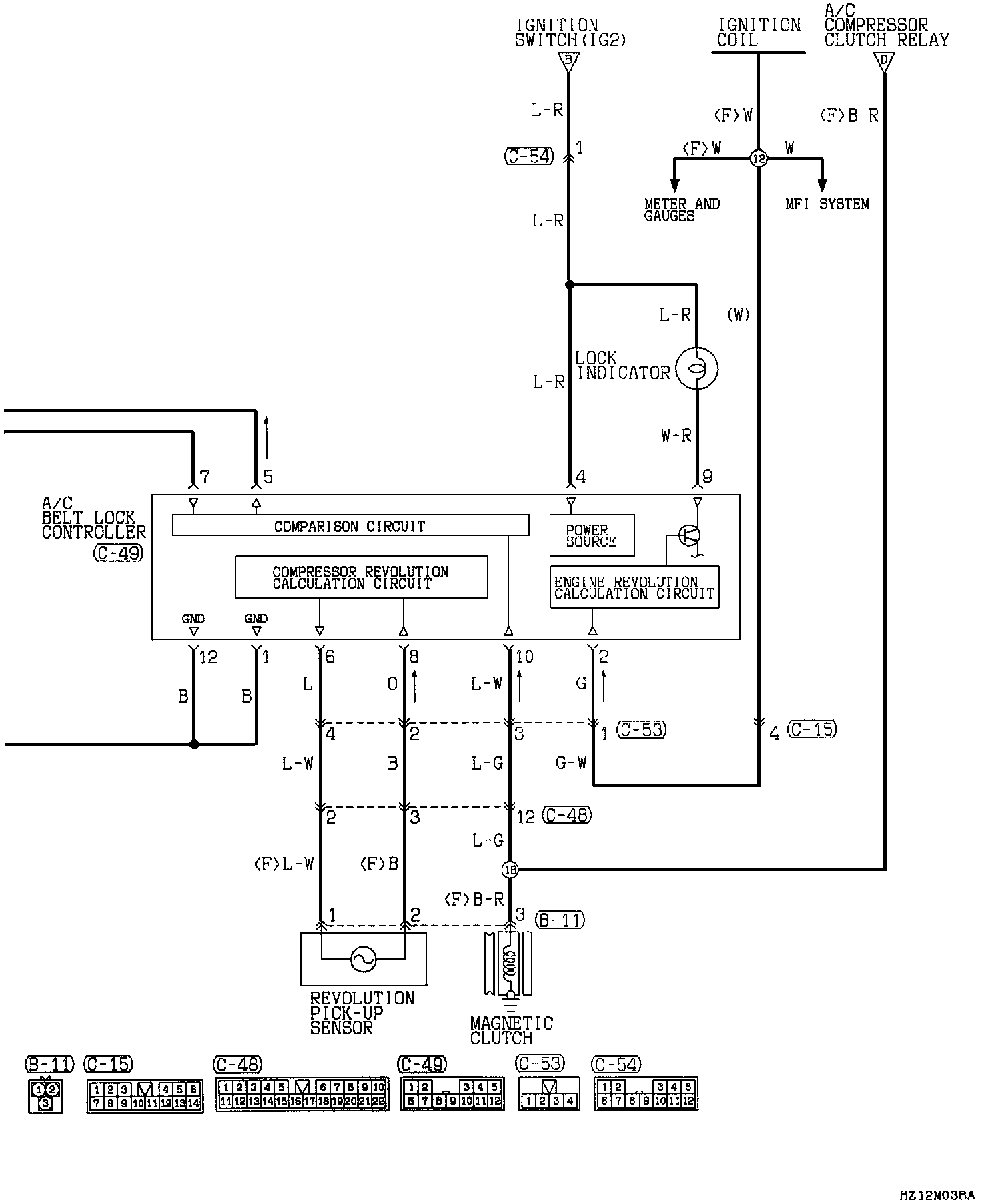

Heater And Air Conditioning Circuits (Part 2 Of 4):

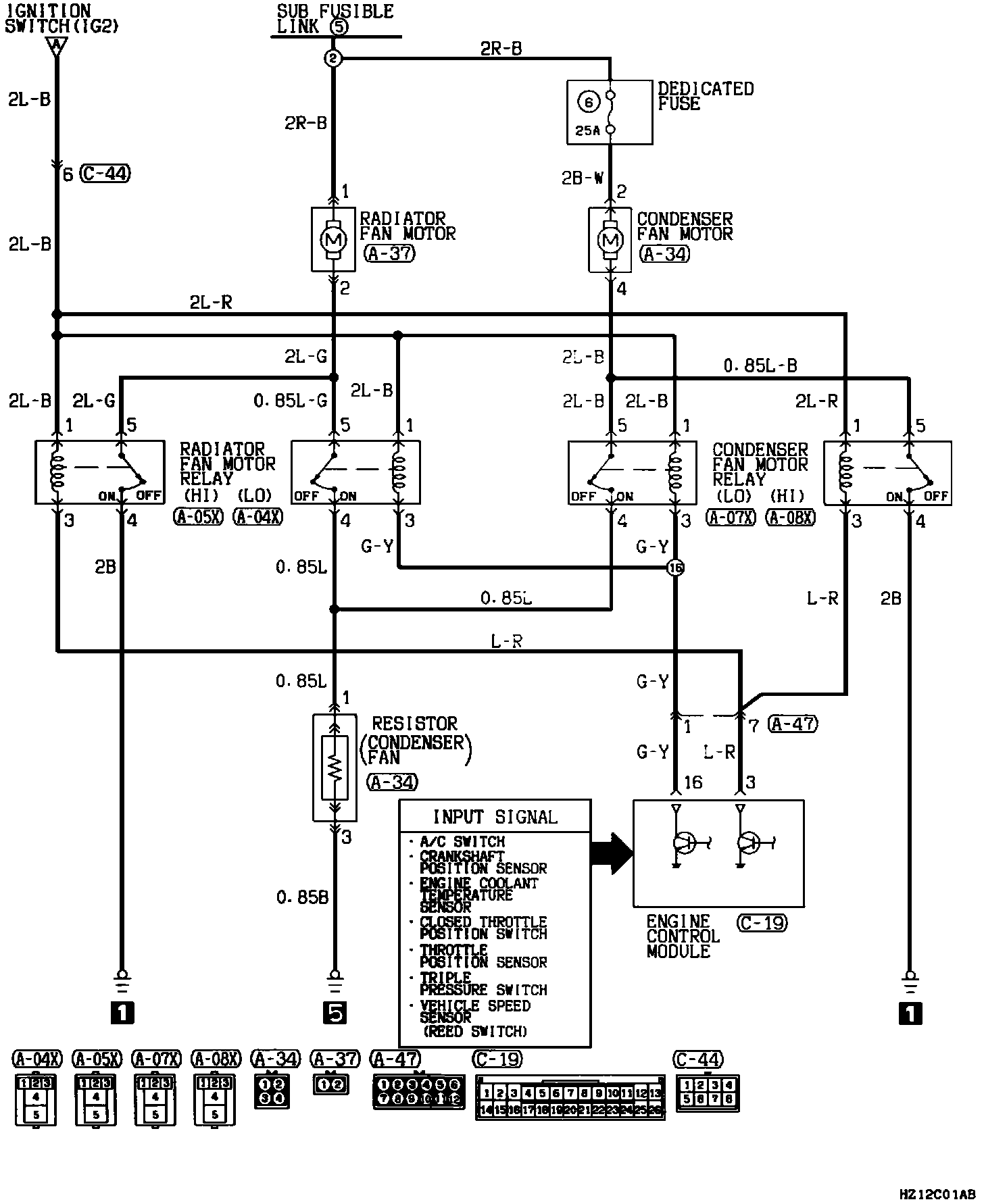

Heater And Air Conditioning Circuits (Part 3 Of 4):

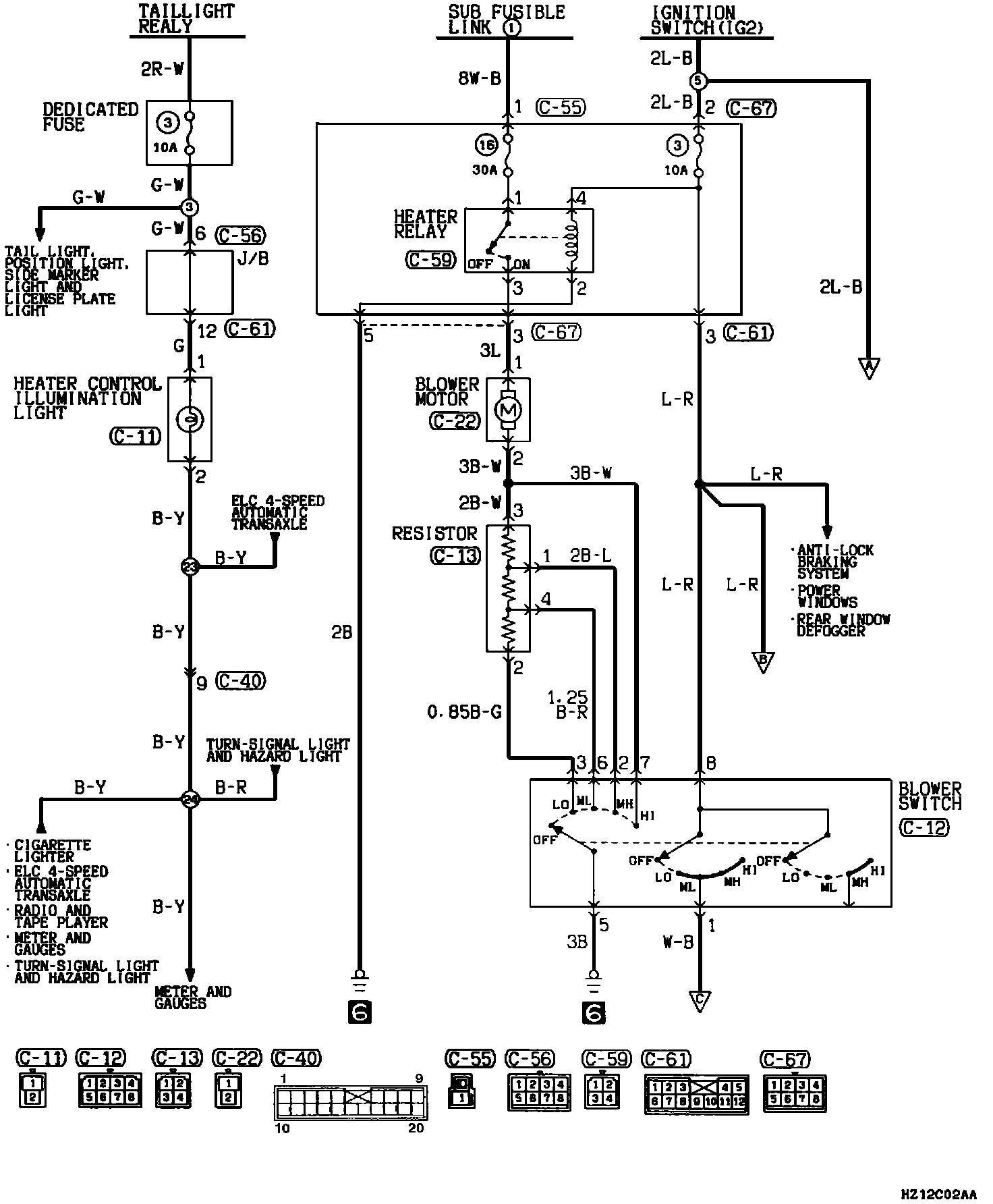

Heater And Air Conditioning Circuits (Part 4 Of 4):
