Dashboard / Instrument Panel: Service and Repair

PRE-REMOVAL AND POST-INSTALLATION OPERATION
- Removal and installation of Floor Console Assembly

REMOVAL STEPS
1. Hood lock release handle
2. Knee pro plug
3. Instrument under cover
4. Lower frame
5. Foot duct
6. Lap duct
7. Lap heater duct
8. Glove box
9. Speaker garnish
10. Glove box frame
11. Meter hood
12. Combination meter
13. Adapter
14. Ashtray
15. Center panel
16. Radio or radio and tape player
17. Center air outlet assembly
18. Heater control assembly
19. Clock or plug
20. Harness connector
21. instrument panel assembly

NOTE: Arrow indicates metal clip position.

SERVICE POINTS OF REMOVAL

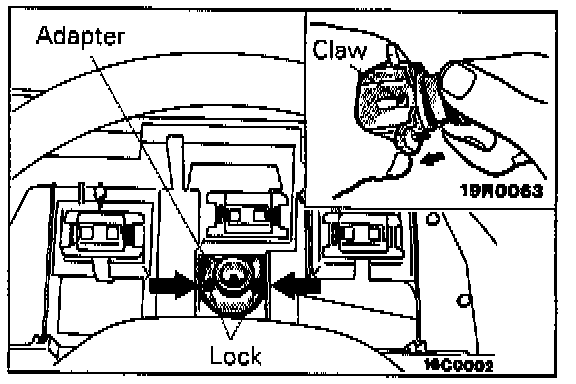

13. Removal Of Adapter
1. Remove the adapter lock.
2. Pull the speedometer cable slightly into the passenger compartment, and then remove the rear of the adapter from the cable
3. After turning the adapter so that the notched section is aligned with the tab on the cable section, remove the adapter by sliding it in the reverse direction.

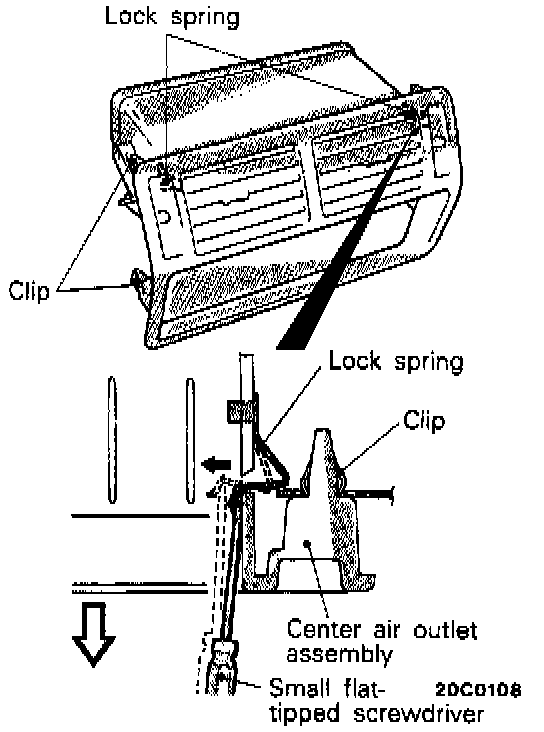

17. Removal Of Center Air Outlet Assembly
1. First remove the clip on the lower section of the center air outlet assembly.
2. Insert a small flat-tipped screwdriver in between the fins, and remove the clip on the top section while pulling the lock spring toward the inside.
3. Take out the center air outlet assembly.

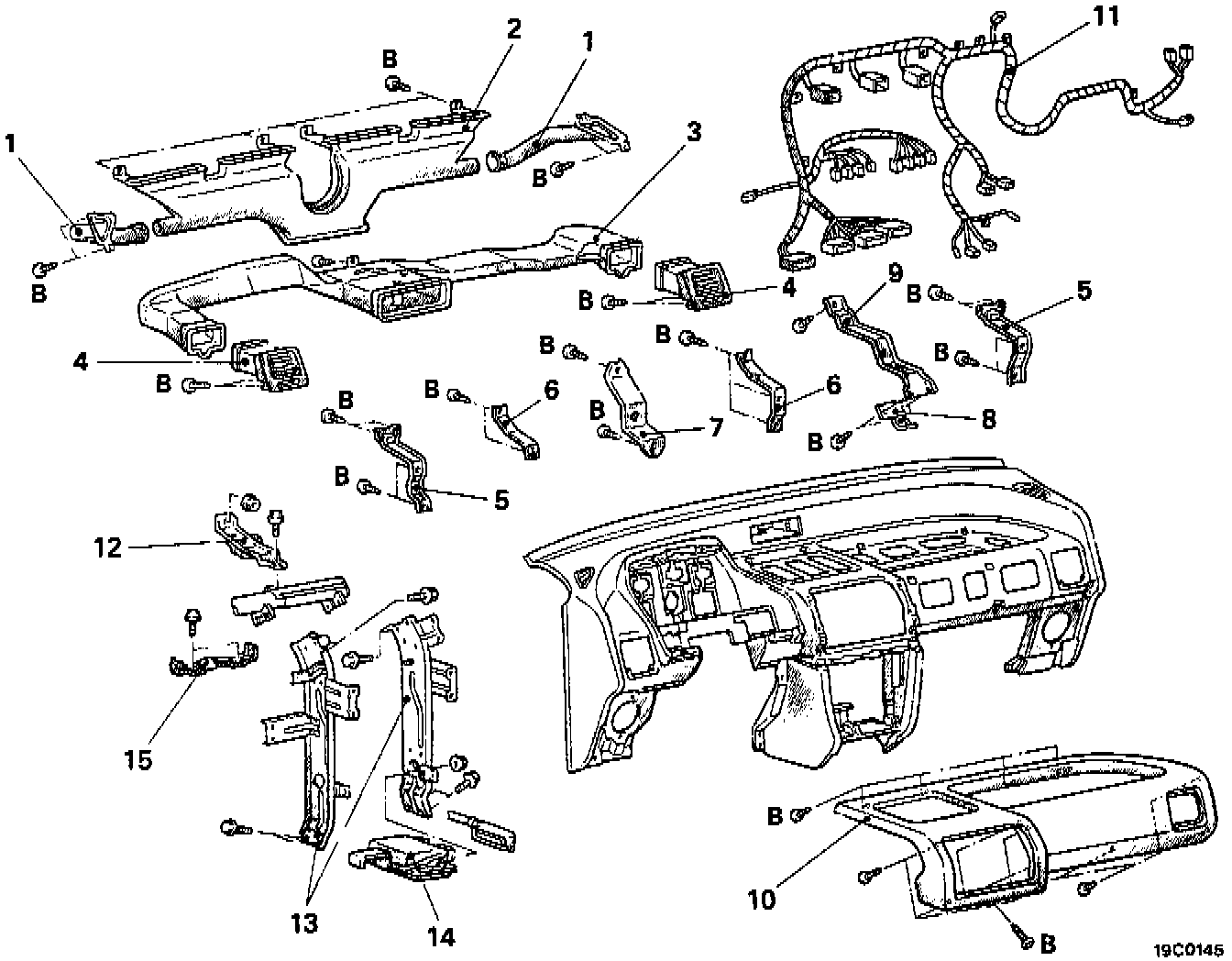

DISASSEMBLY STEPS
1. Side defroster duct
2. Defroster nozzle assembly
3. Distribution duct
4. Side air outlet assembly
5. Bracket
6. Defroster reinforcement
7. Center bracket
8. Glove box striker
9. Glove box reinforcement
10. Instrument pad
11. Instrument panel wiring harness
12. Cross pipe
13. Center reinforcement
14. A.B.S. control unit assembly
15. Side cover bracket
