Test 8 - Inhibitor Switch Wiring Circuit A/T
Test 8 - Inhibitor Switch Wiring Circuit A/T

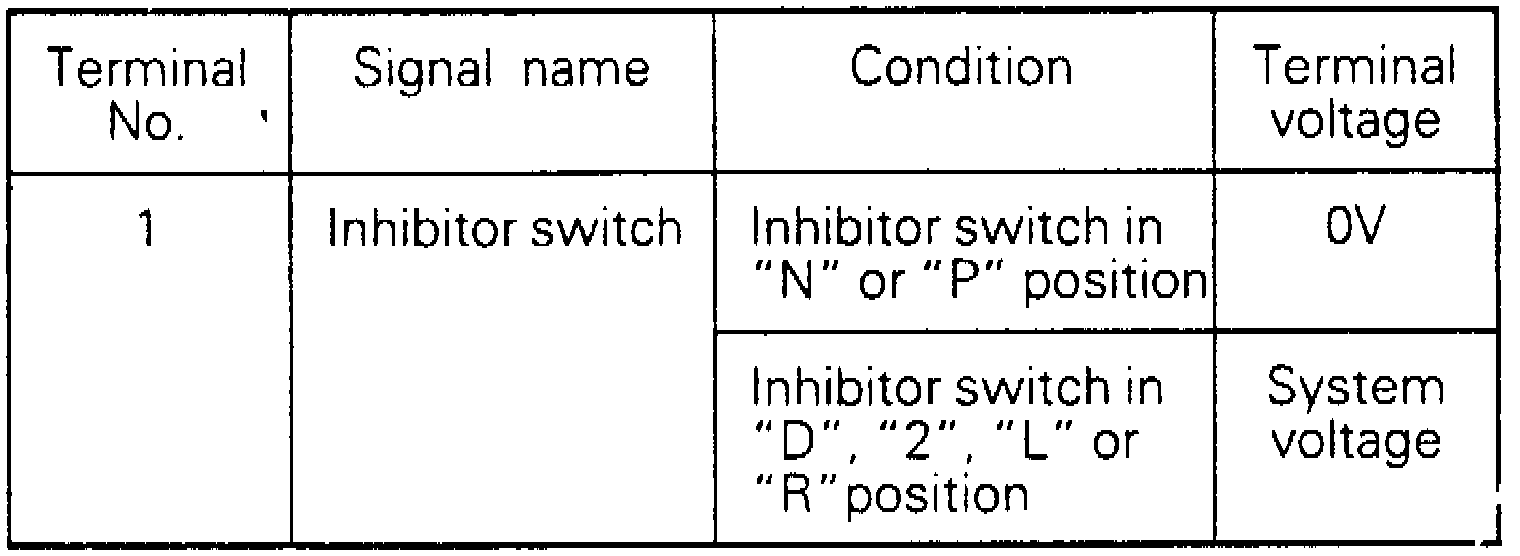

Fig. 34 Test No. 8: Inhibitor Switch Wiring Circuit:
