B Connectors - Engine and Transaxle Harness
B Connectors - Engine and Transaxle Harness

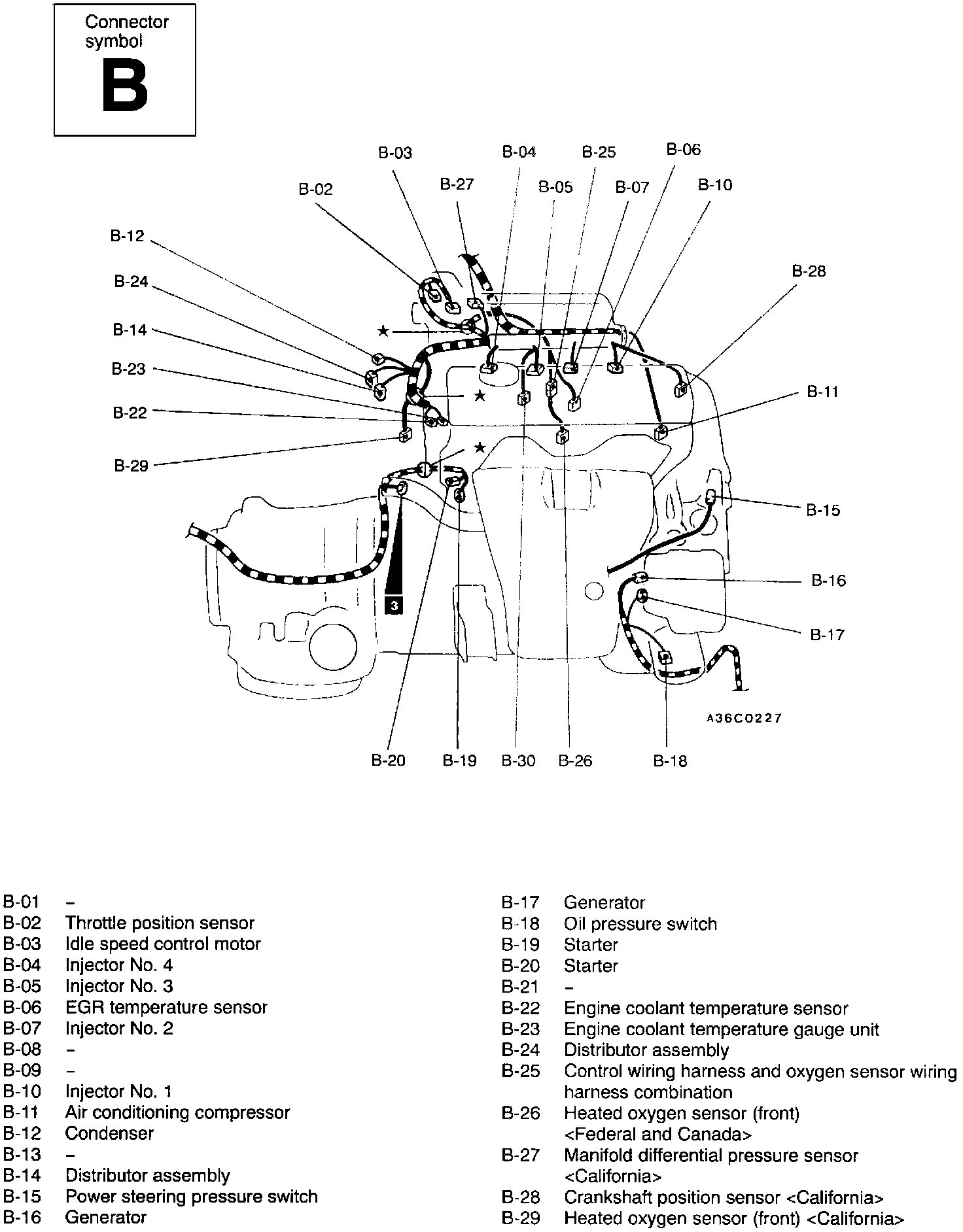

B Connectors - Engine And Transaxle:
