Home >> Eagle >> 1995 >> Summit Wagon FWD L4-2350cc 2.4L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cargo Lamp >> With Keyless Entry System

With Keyless Entry System

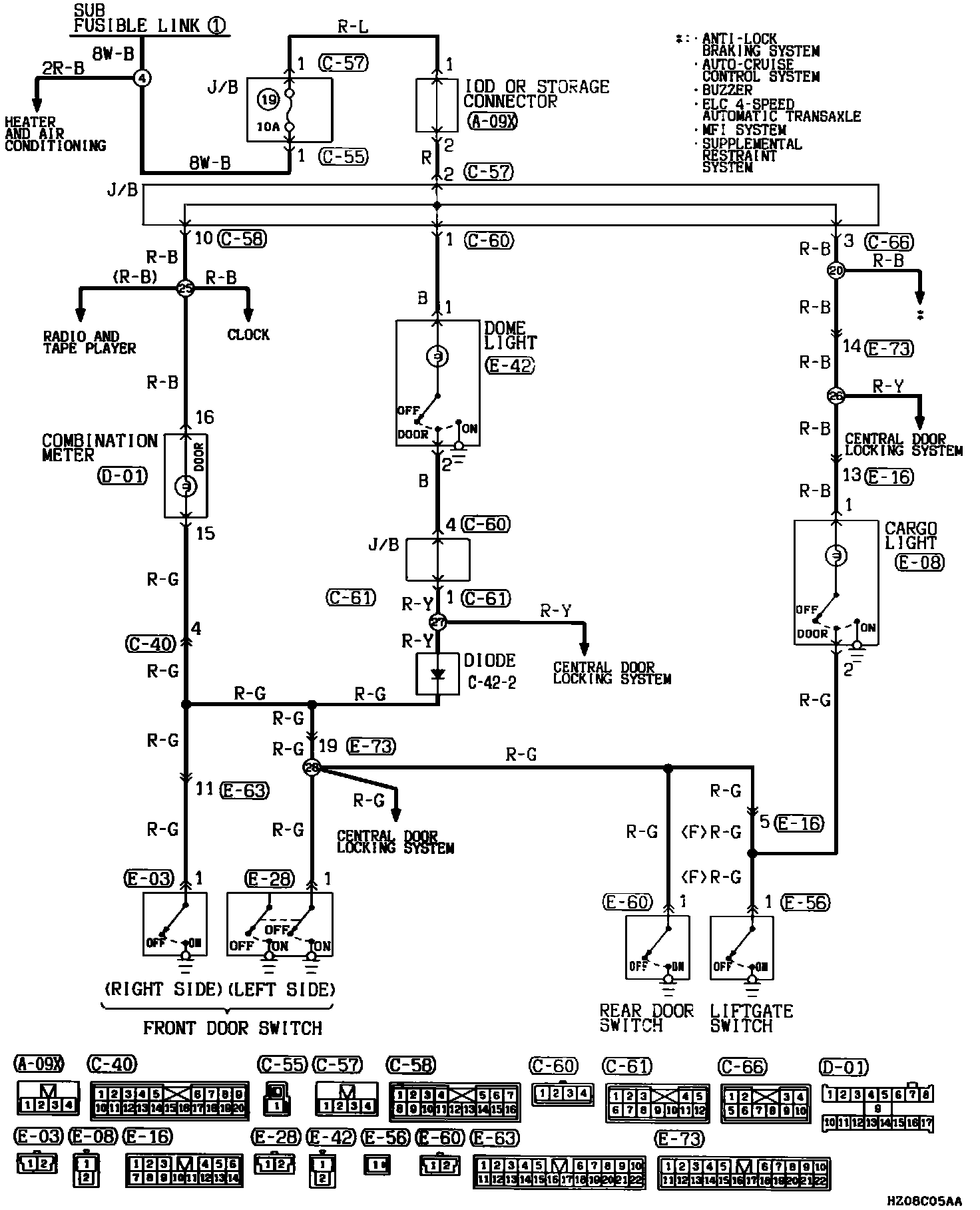

Dome And Cargo Light:
