Home
>>
Eagle
>>
1995
>>
Summit Wagon FWD L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Door Locks
>>
Vehicles Without Keyless Entry System
Vehicles Without Keyless Entry System

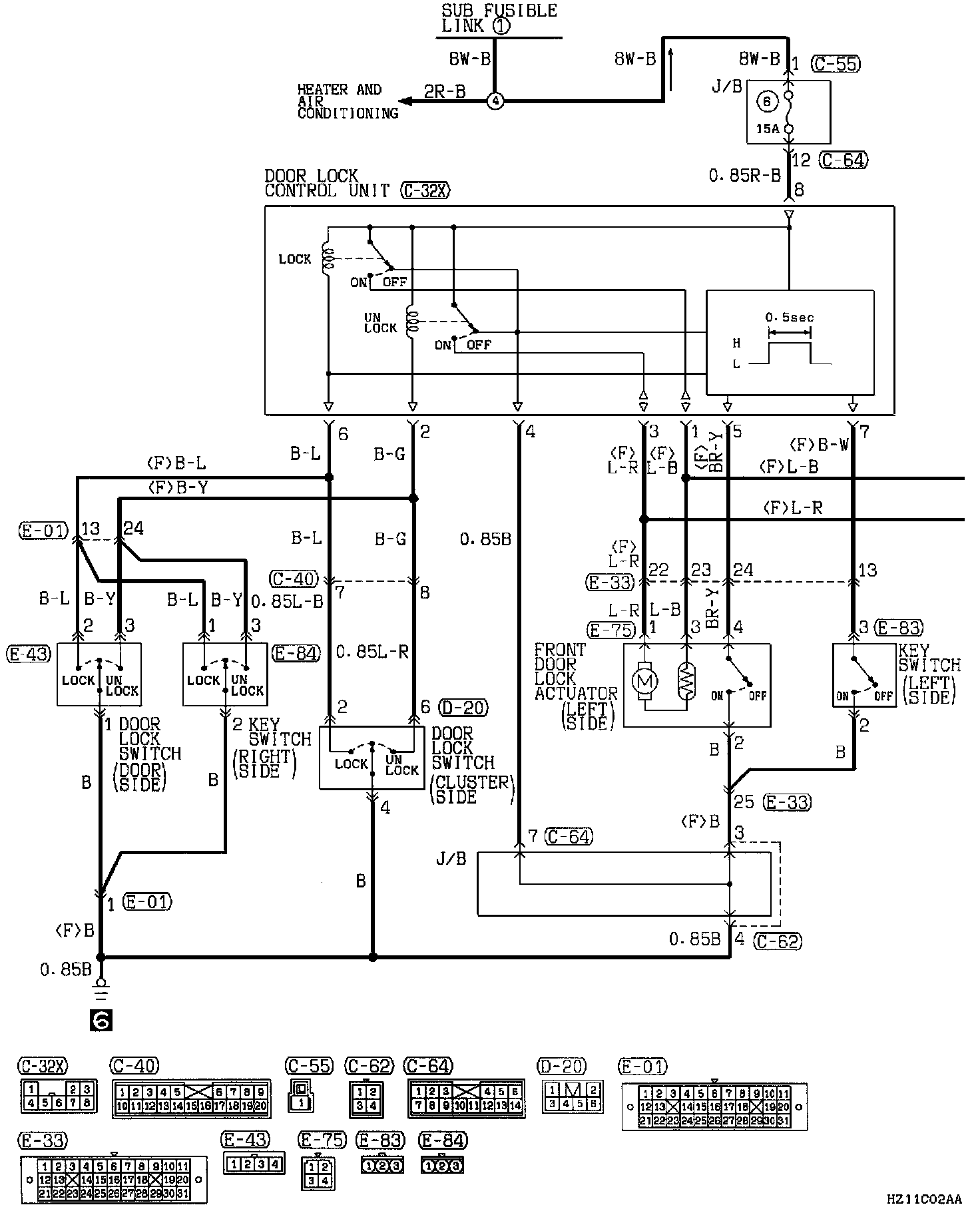

Central Door Locking System (Part 1 Of 2):

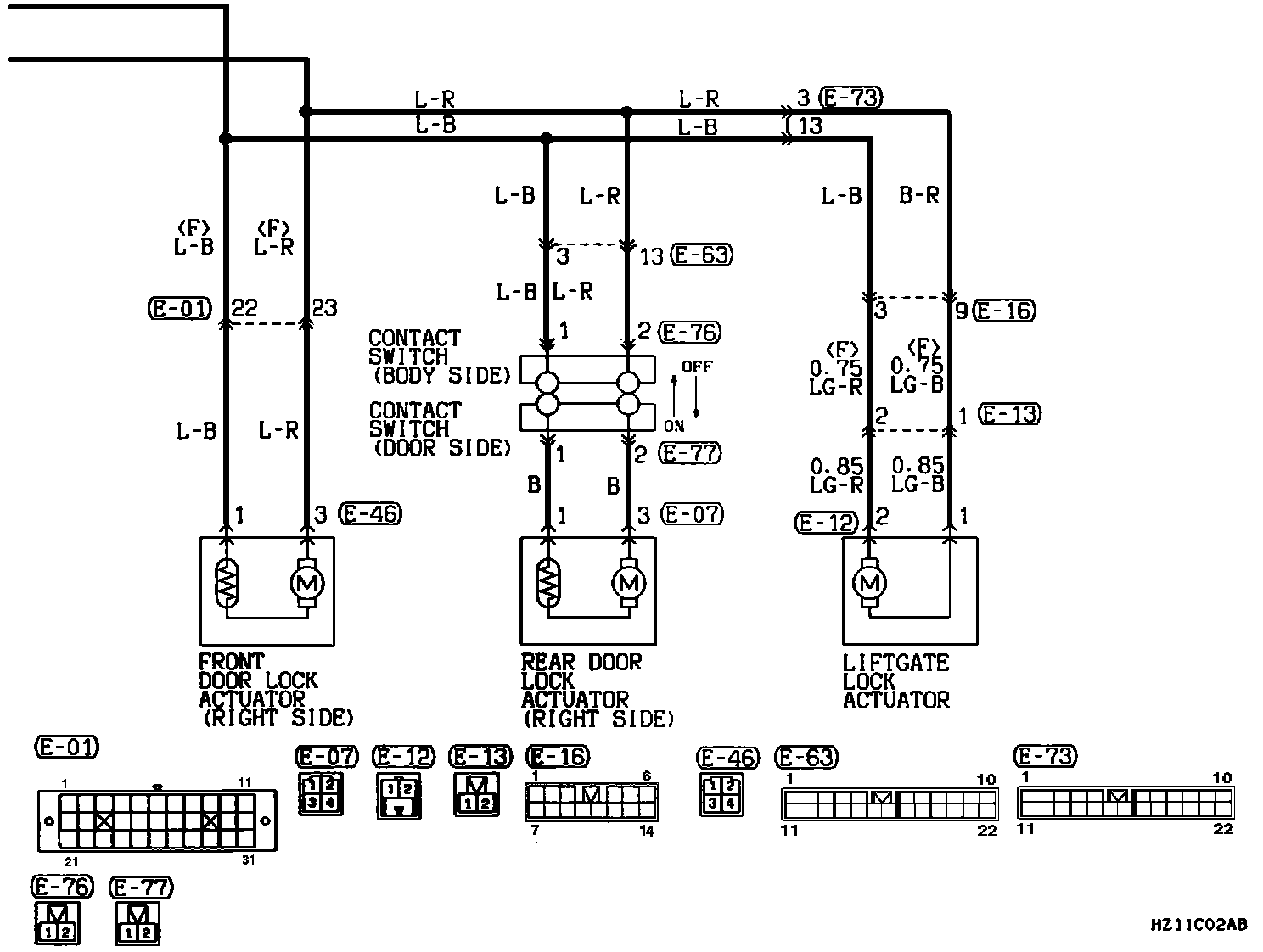

Central Door Locking System (Part 2 Of 2):
