Headlamp
>>
With Daytime Running Lamps
With Daytime Running Lamps

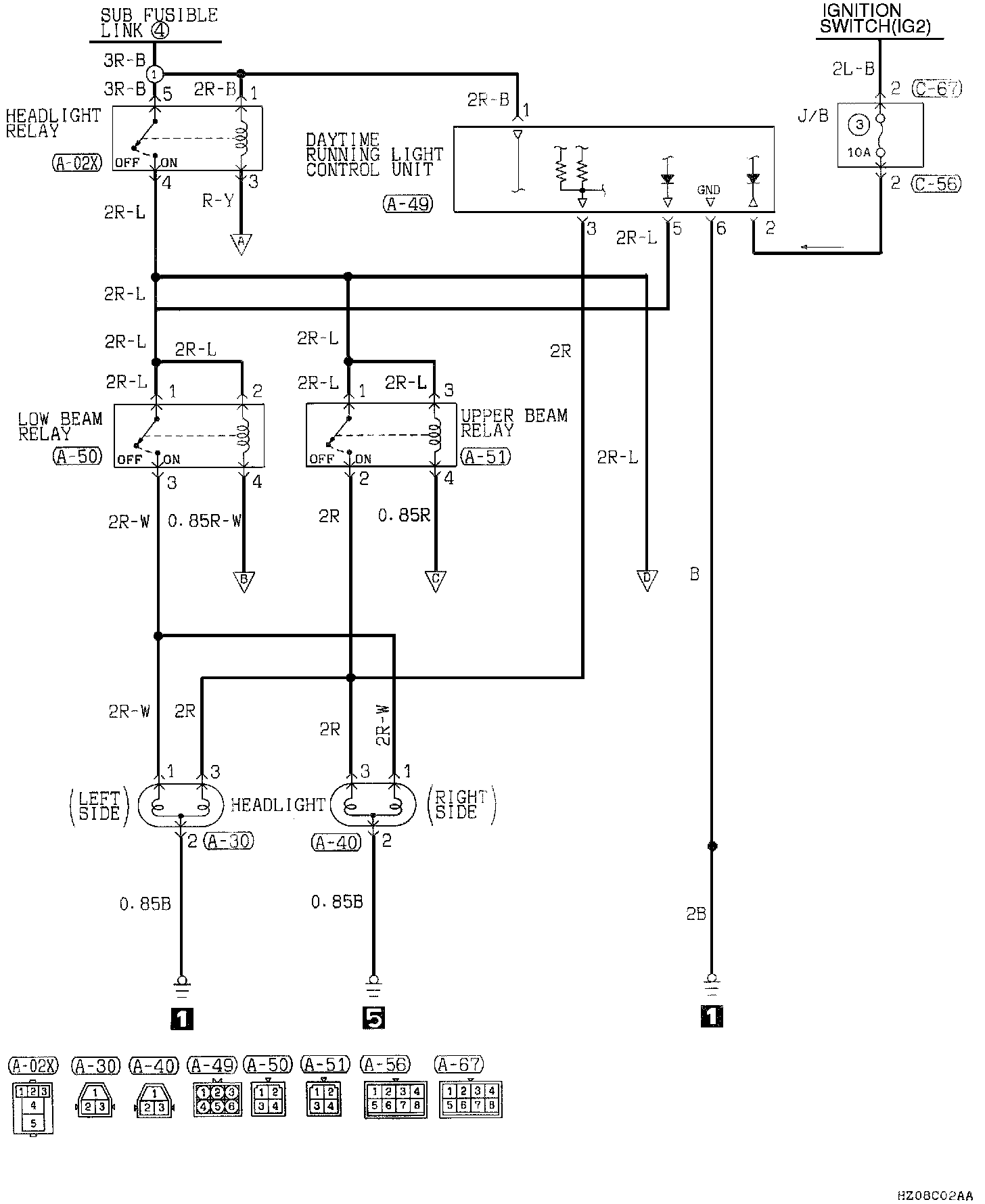

Headlight Circuit (Part 1 Of 2):
Headlight Circuit (Part 2 Of 2):
