A/C Performance Testing

1. Connect a suitable manifold gauge set and tachometer.
2. Position air temperature controls as follows:
a. Select air conditioner.
b. Position mode selection lever to "Face."
c. Position temperature control lever to "Max" cooling.
d. Position air selection lever to "Recirc."
e. Position blower lever to high.
3. Start engine, then adjust RPM to 1000 with compressor clutch engaged.
4. Vehicle doors should be closed, windows up and engine should be at normal operating temperature.
5. Insert a thermometer in the left center vent and allow engine to run for 20 minutes.

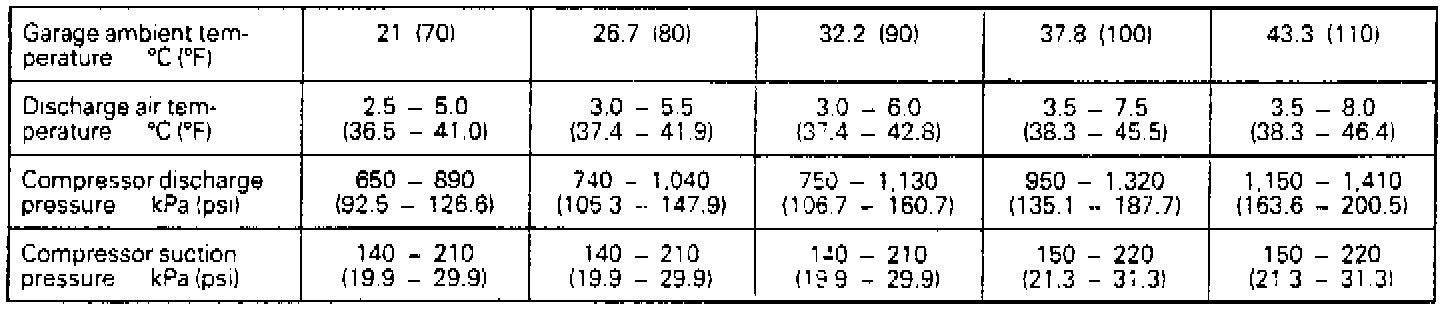

Fig. 4 Performance Temperature Chart:

Fig. 5 Performance Temperature Chart:

6. Note the discharge temperature and compare with charts shown. Reading should be taken with compressor clutch engaged.
