Exhaust Gas Recirculation: Locations

Component Locations:

Location Index

Component Locations:

Locations A through C

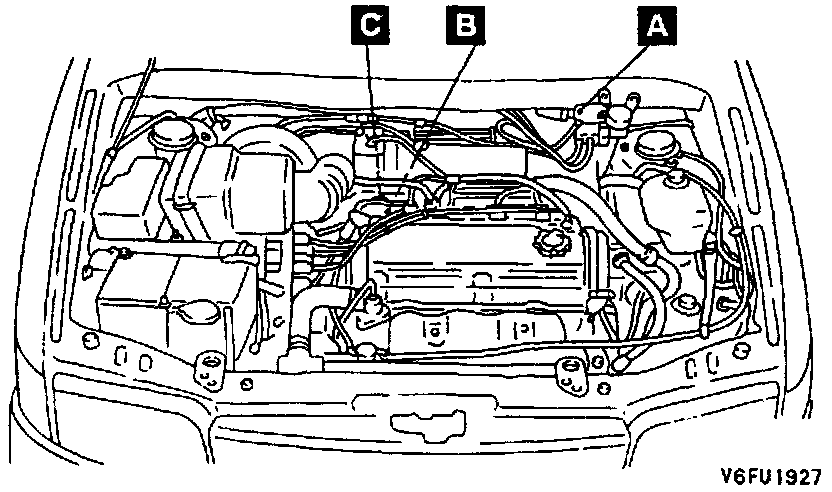

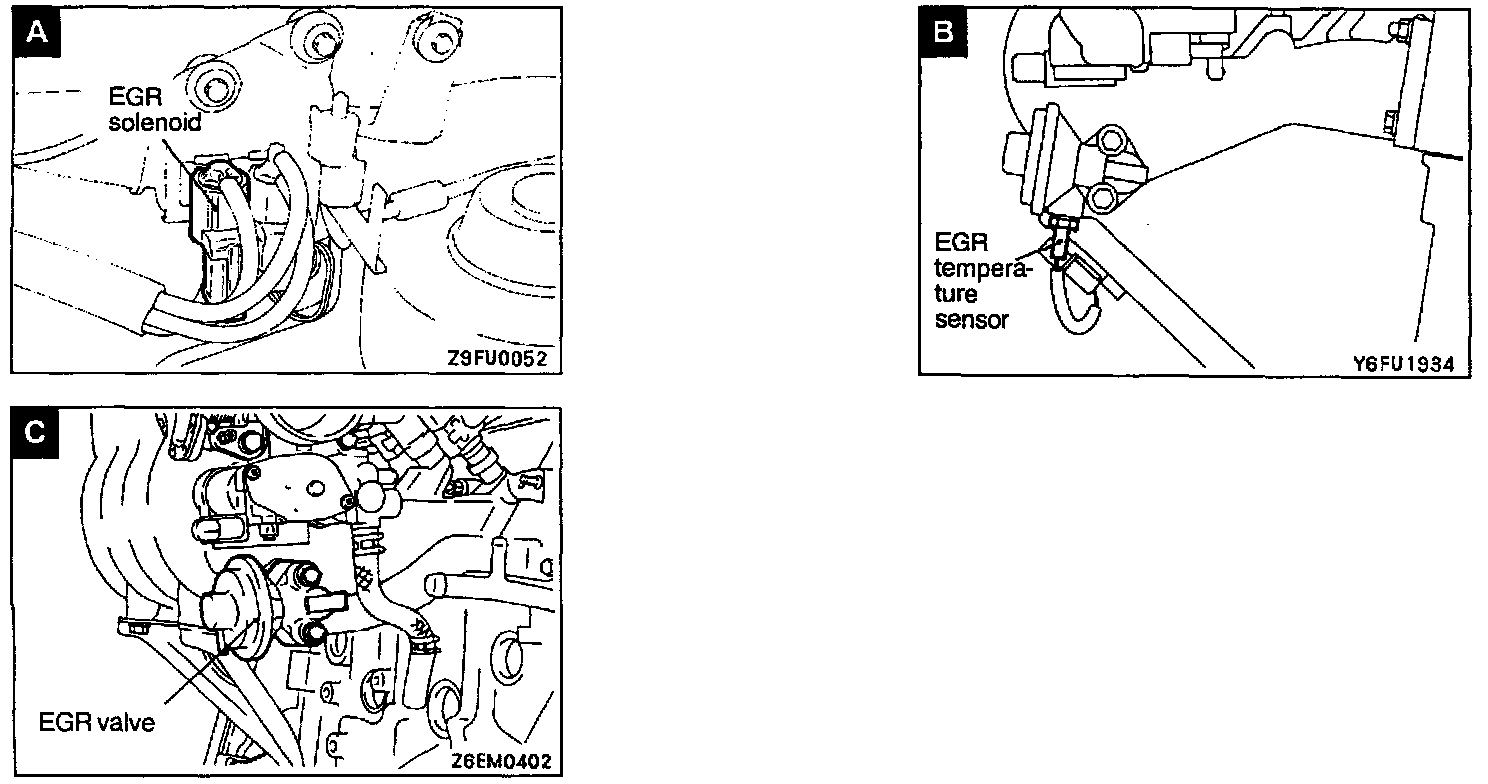

Component Location

EGR Solenoid A
EGR Temperature Sensor [1] B
EGR Valve C

REMARKS:
[1] - Only models equipped with Federal or Canada Emissions have an EGR Temperature Sensor.
