Fuel Pump: Service and Repair

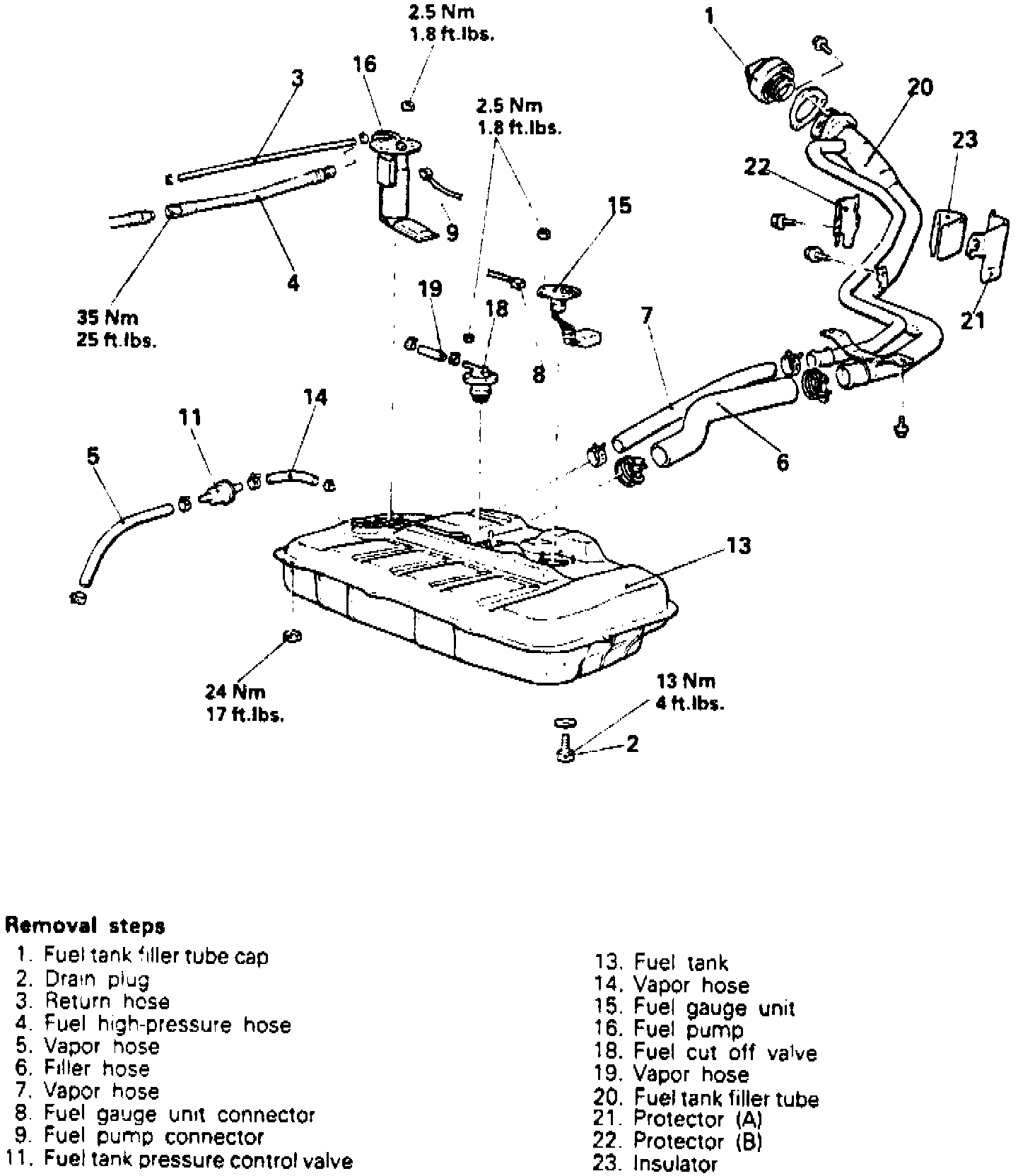

Fig. 56 Fuel Tank & Pump Replacement:

FUEL PUMP REPLACE
1. Release fuel system pressure. Fuel Pressure Release
2. Drain fuel tank into a suitable container.
3. Replace fuel tank and fuel pump in numbered sequence shown in Fig. 56.
