Electrical Diagrams
Schematic:

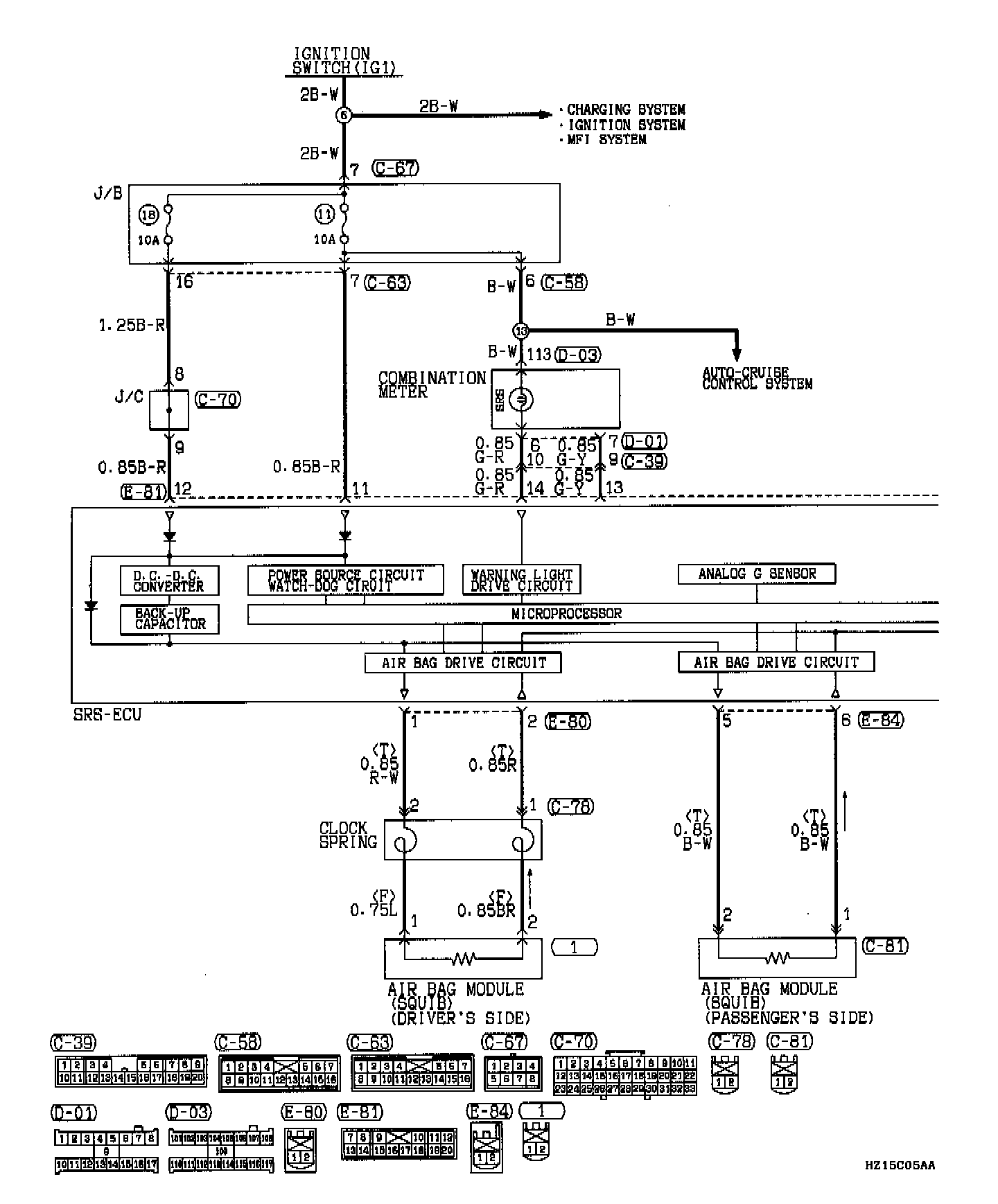

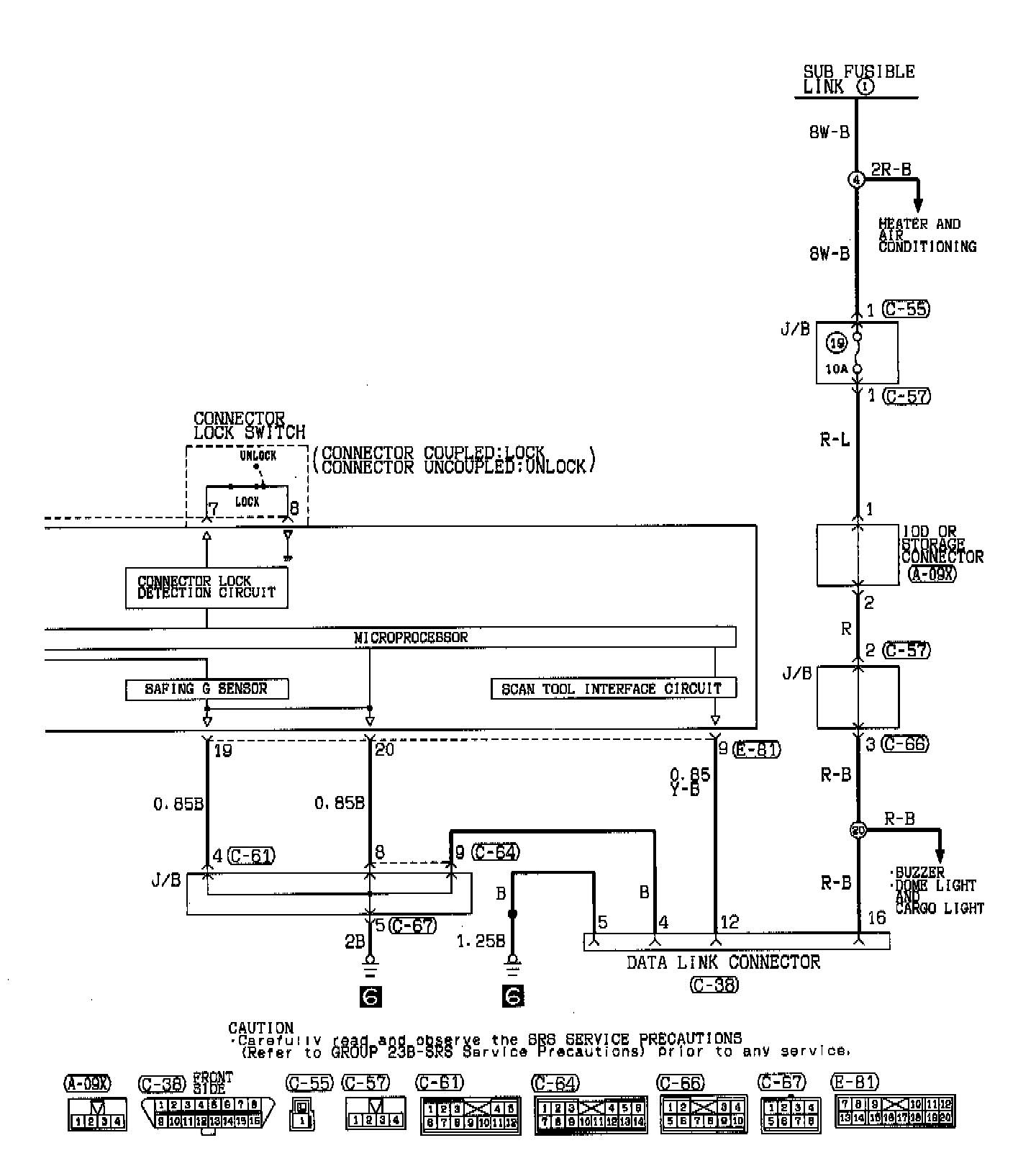

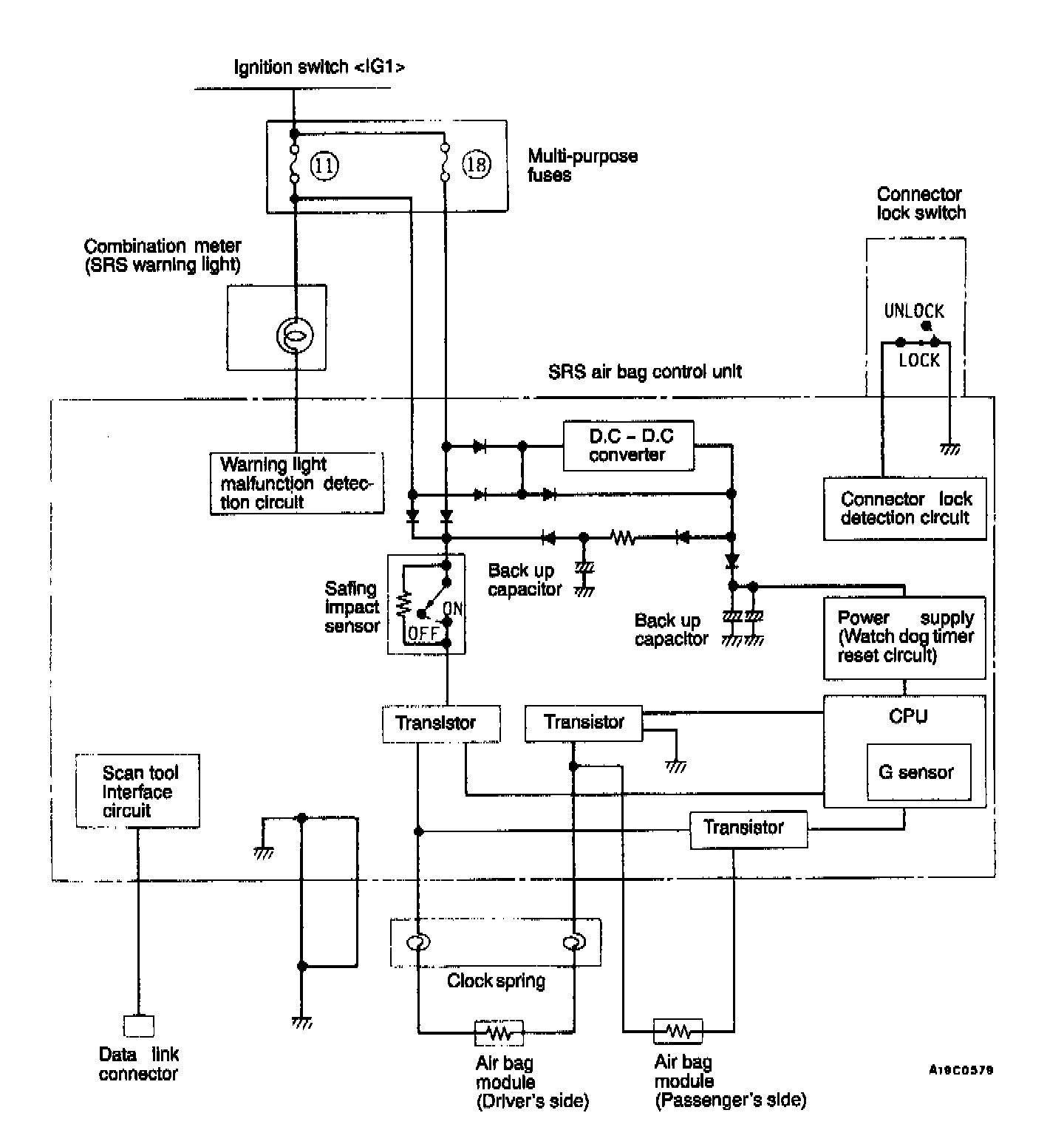

CIRCUIT DIAGRAM
CAUTION
1. Do not repair, splice or modify SRS wiring (except for specific repairs to the body wiring harness; replace wiring if necessary, after reading and following all precautions and procedures in this manual.
2. Do not use an analog ohmmeter to check SRS wiring or components; use only special tools and digital multi-meter.
