Operation CHARM
: Car repair manuals for everyone.
Home
>>
Eagle
>>
1995
>>
Summit Wagon FWD L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Diagrams
>>

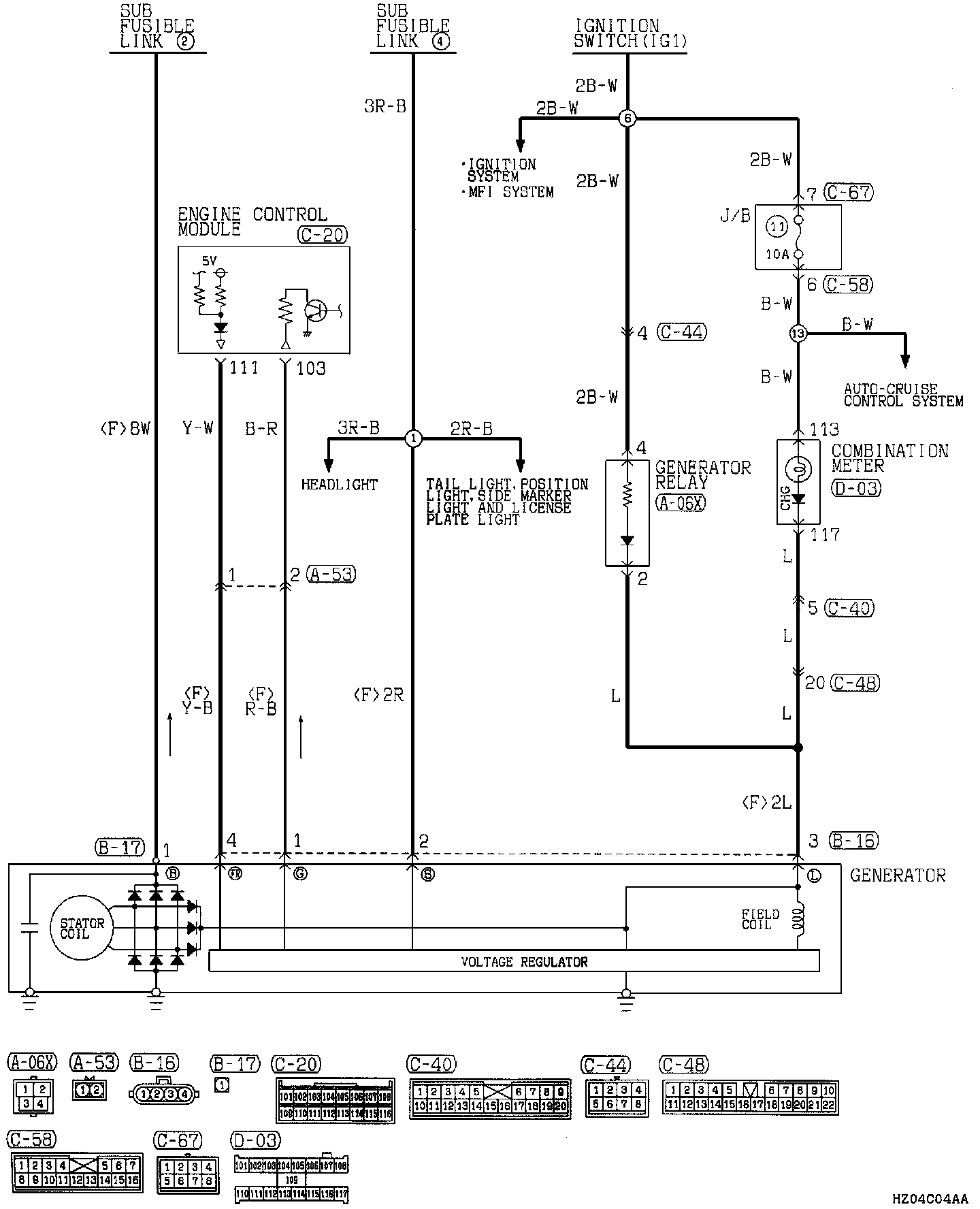

Electrical Diagrams
Electrical Diagrams
Troubleshooting:
