Steering Column: Testing and Inspection

Column Switch:

1. Remove the instrument panel under cover.

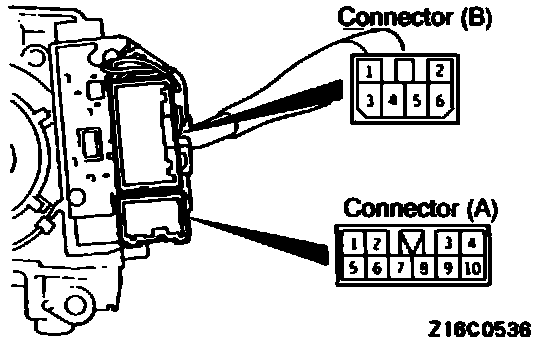

2. Remove the column switch connector.

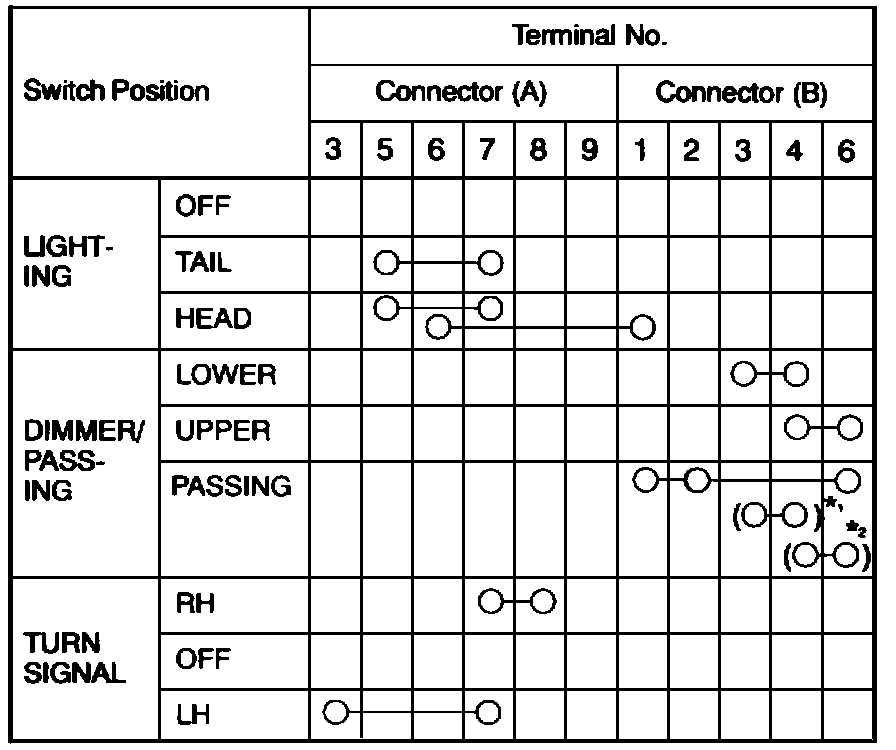

Column Switch Continuity Table:

3. Operate the switch and check for continuity between the terminals.


NOTE:
1. *1: The dimmer switch is at lower position.
2. *2: The dimmer switch is at upper position.
