Brake Warning Indicator

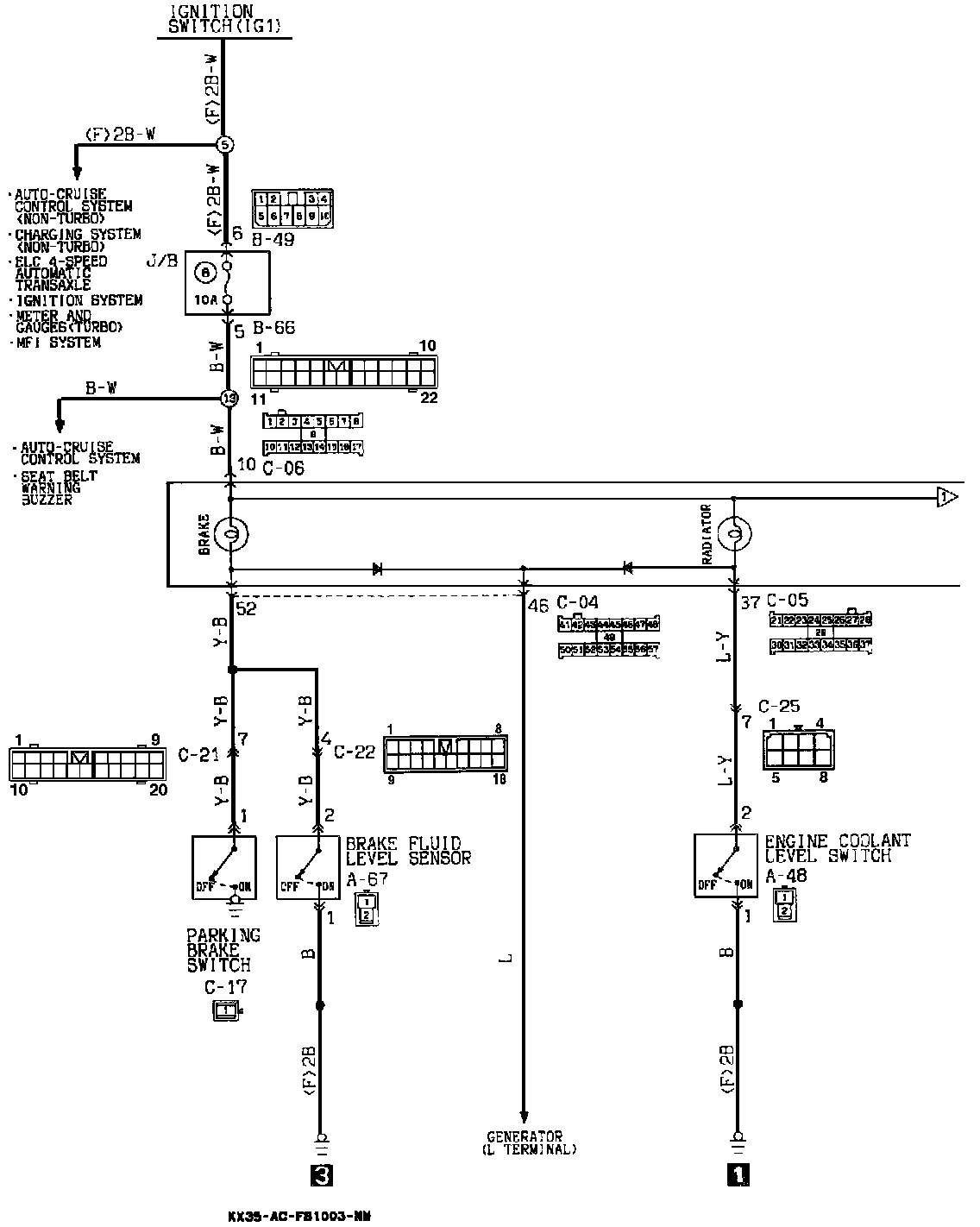

Brake, Engine Coolant, Oil Pressure & Low Fuel Level Warning Light Circuit (Part 1 Of 2):

Brake, Engine Coolant, Oil Pressure & Low Fuel Level Warning Light Circuit (Part 2 Of 2):
