Electrical Diagrams

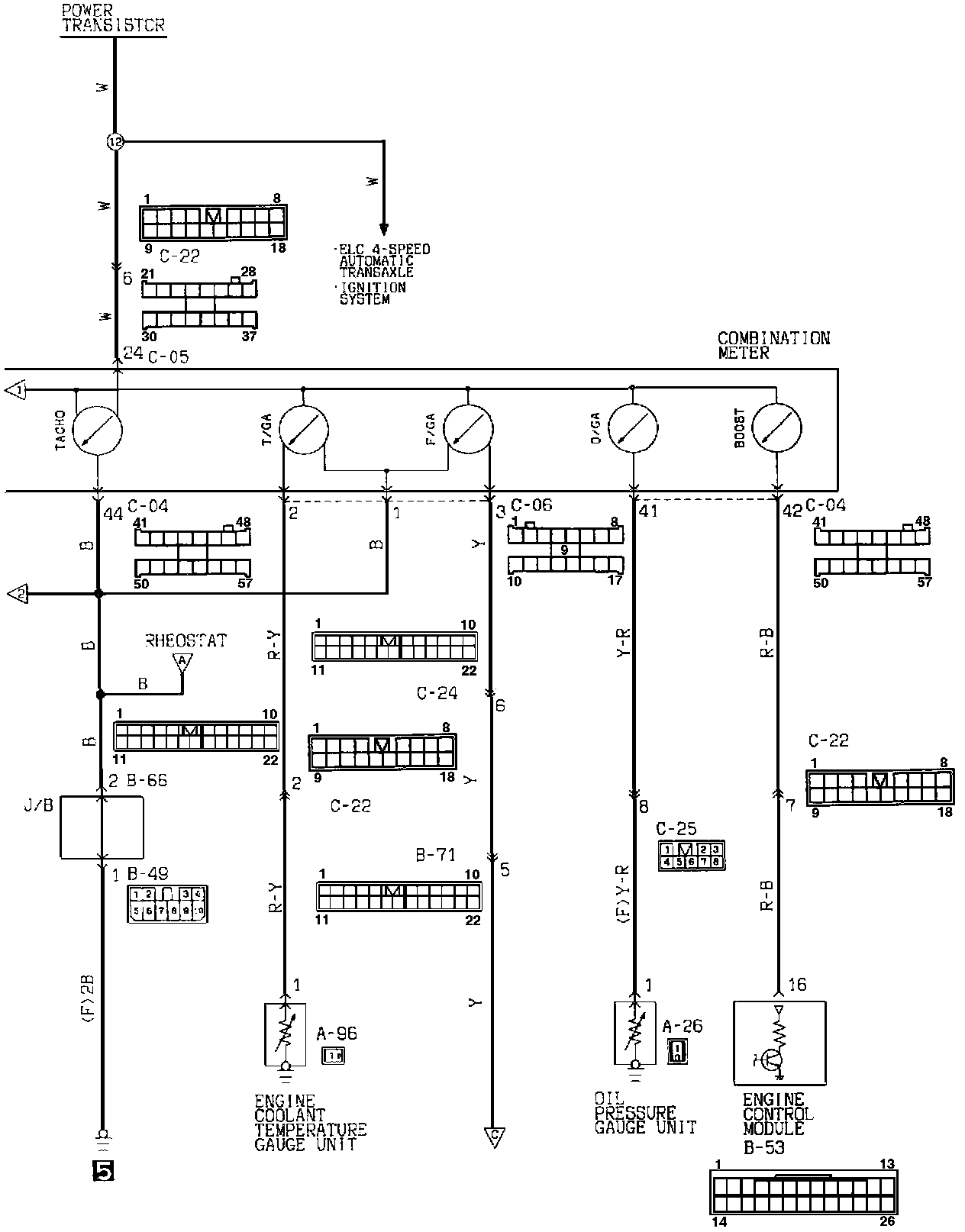

Meter And Gauge Circuit (Part 1 Of 3):

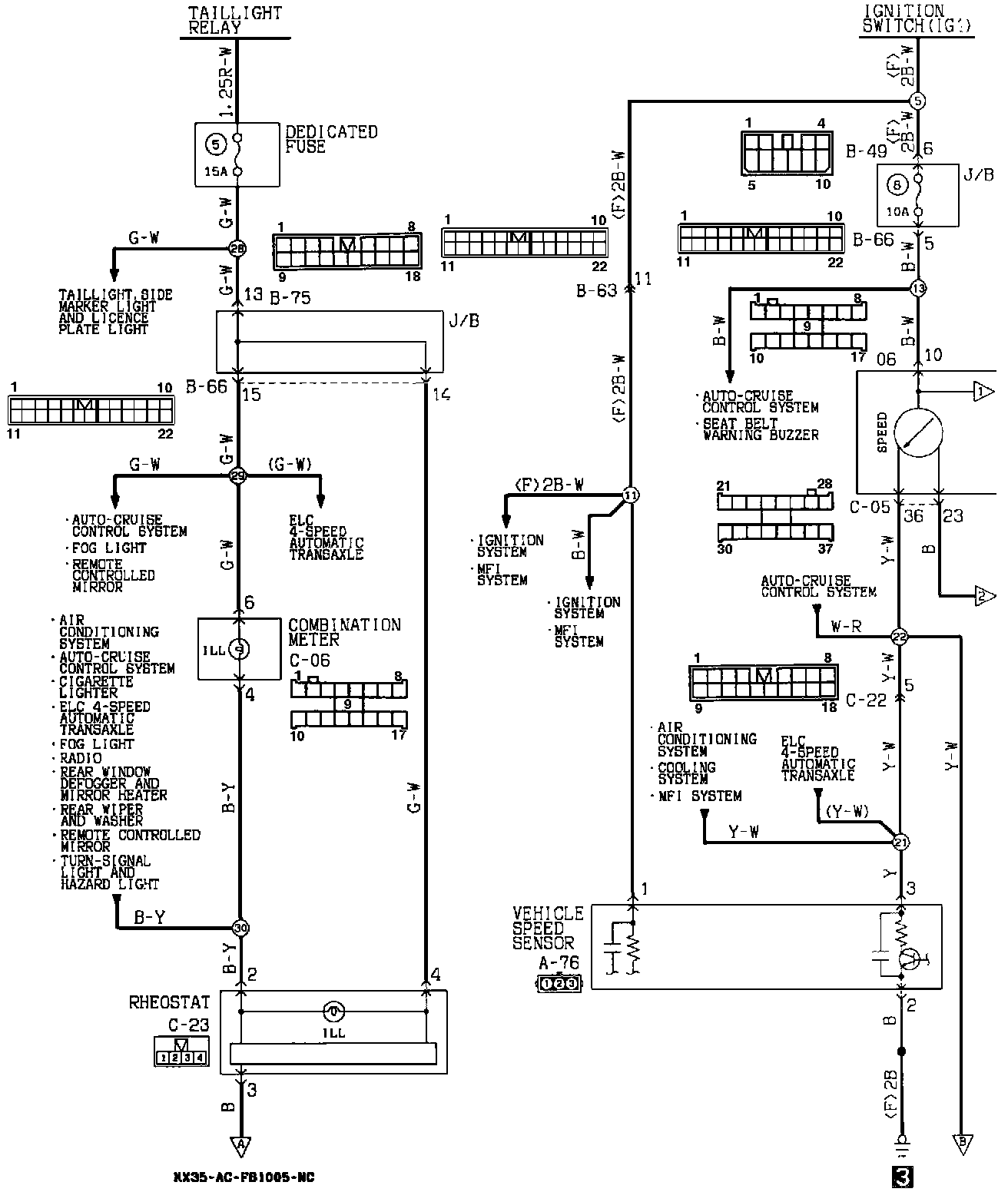

Meter And Gauge Circuit (Part 2 Of 3):




Meter And Gauge Circuit (Part 3 Of 3):
