Fuse: Diagrams

Dedicated Fuses (Relay Box In Engine Compartment):

Dedicated Fuses (Relay Box In Engine Compartment):

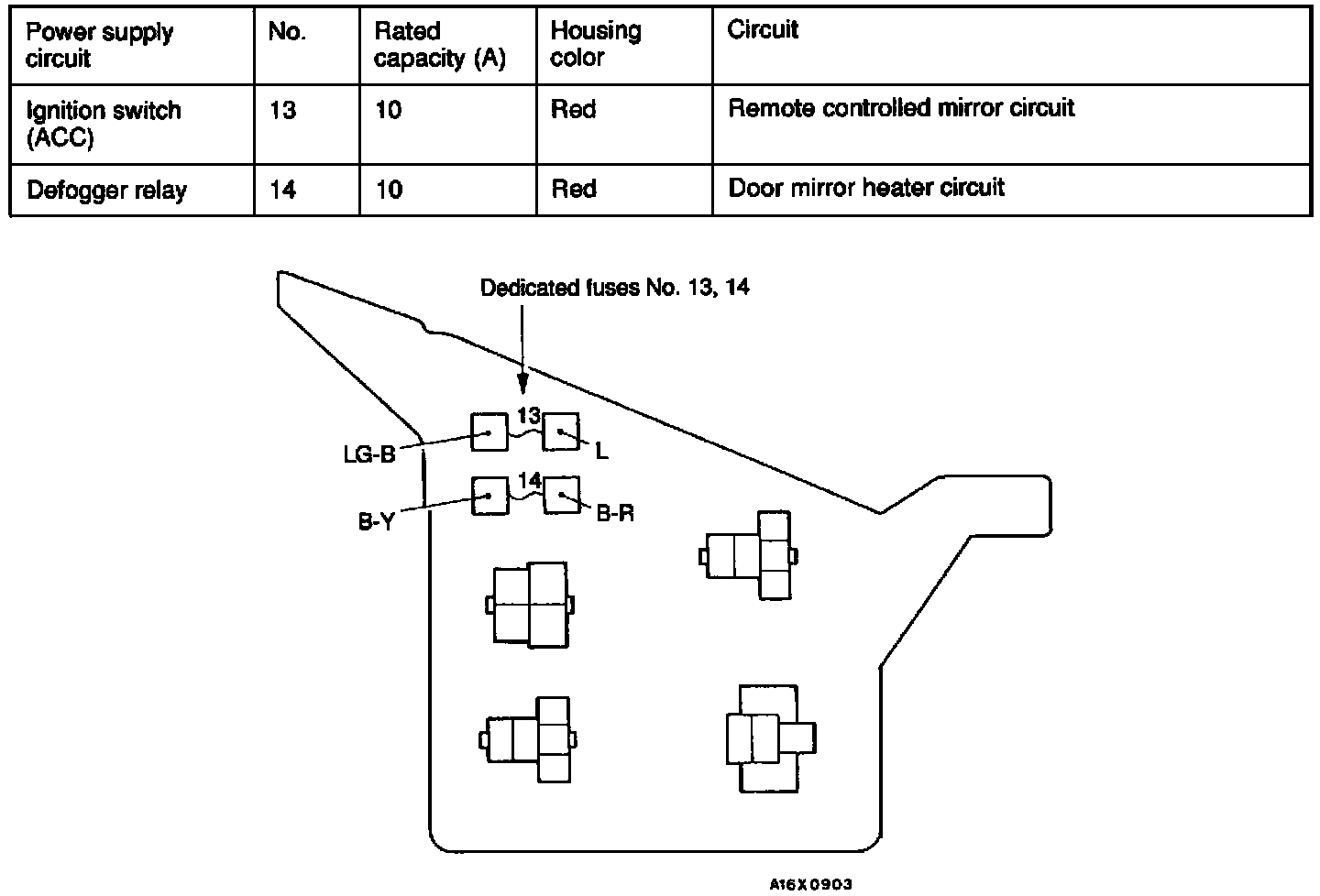

Dedicated Fuses (Interior Relay Box):

Multi Purpose Fuse (In Junction Block):
