Brake Warning Indicator
Brake Warning Indicator

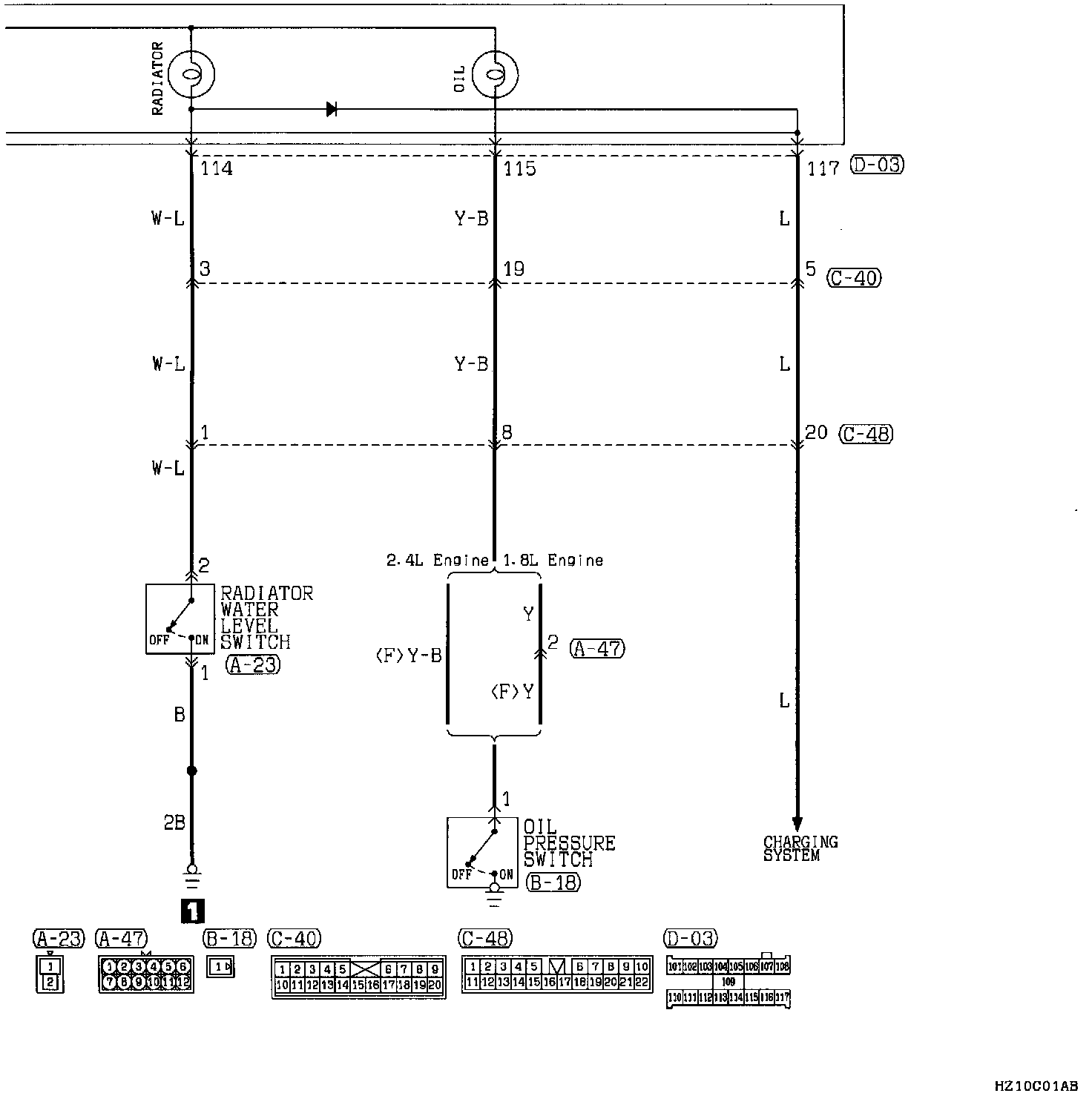

Brake, Fuel, Engine Coolant And Oil Pressure Warning Light (Part 1 Of 2):
Brake, Fuel, Engine Coolant And Oil Pressure Warning Light (Part 2 Of 2):
