A Connectors - Engine Compartment Harness
A Connectors - Engine Compartment Harness

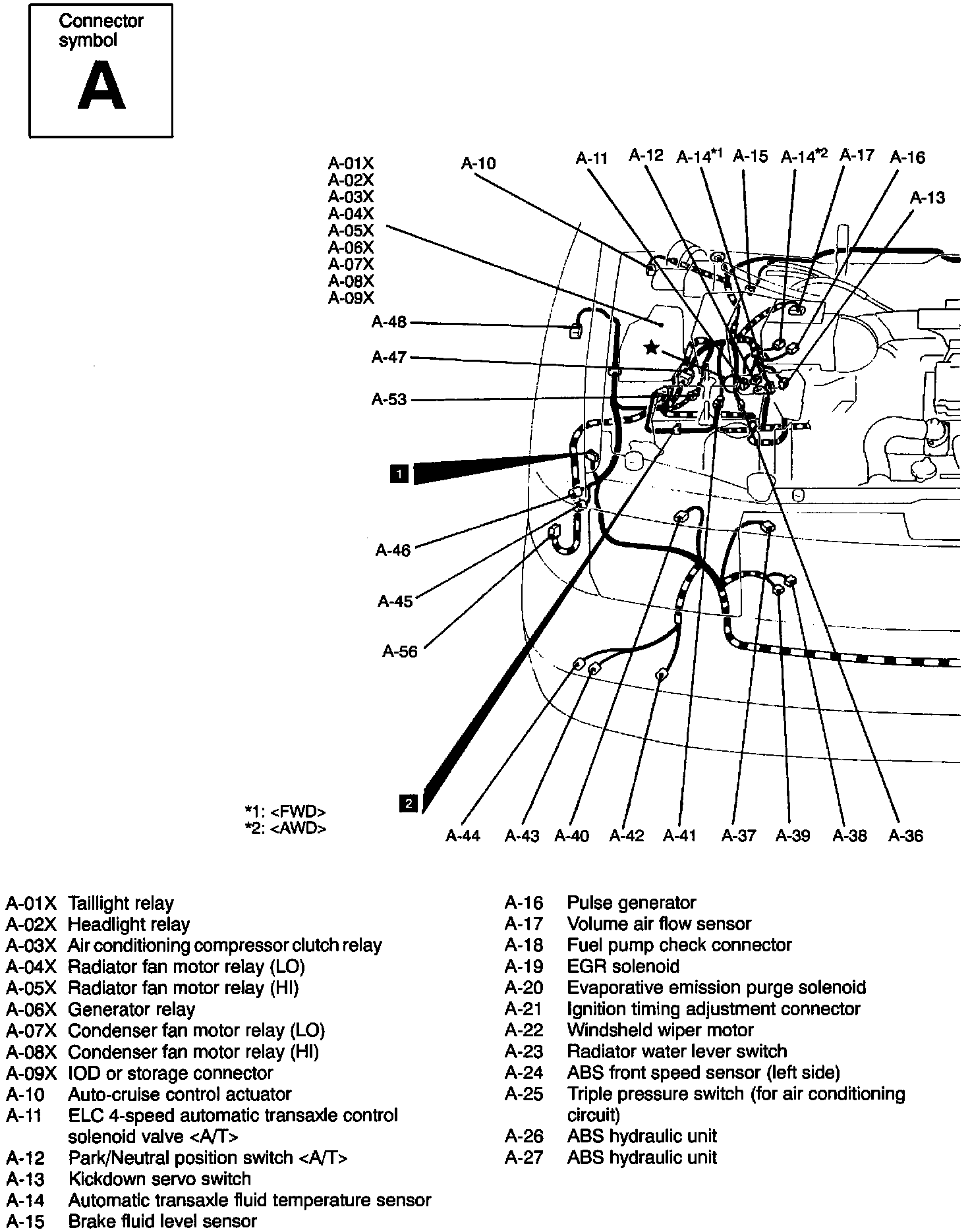

A Connectors - Engine Compartment (Part 1 Of 2):
A Connectors - Engine Compartment (Part 2 Of 2):
