Eagle
>>
1996
>>
Summit Wagon AWD L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

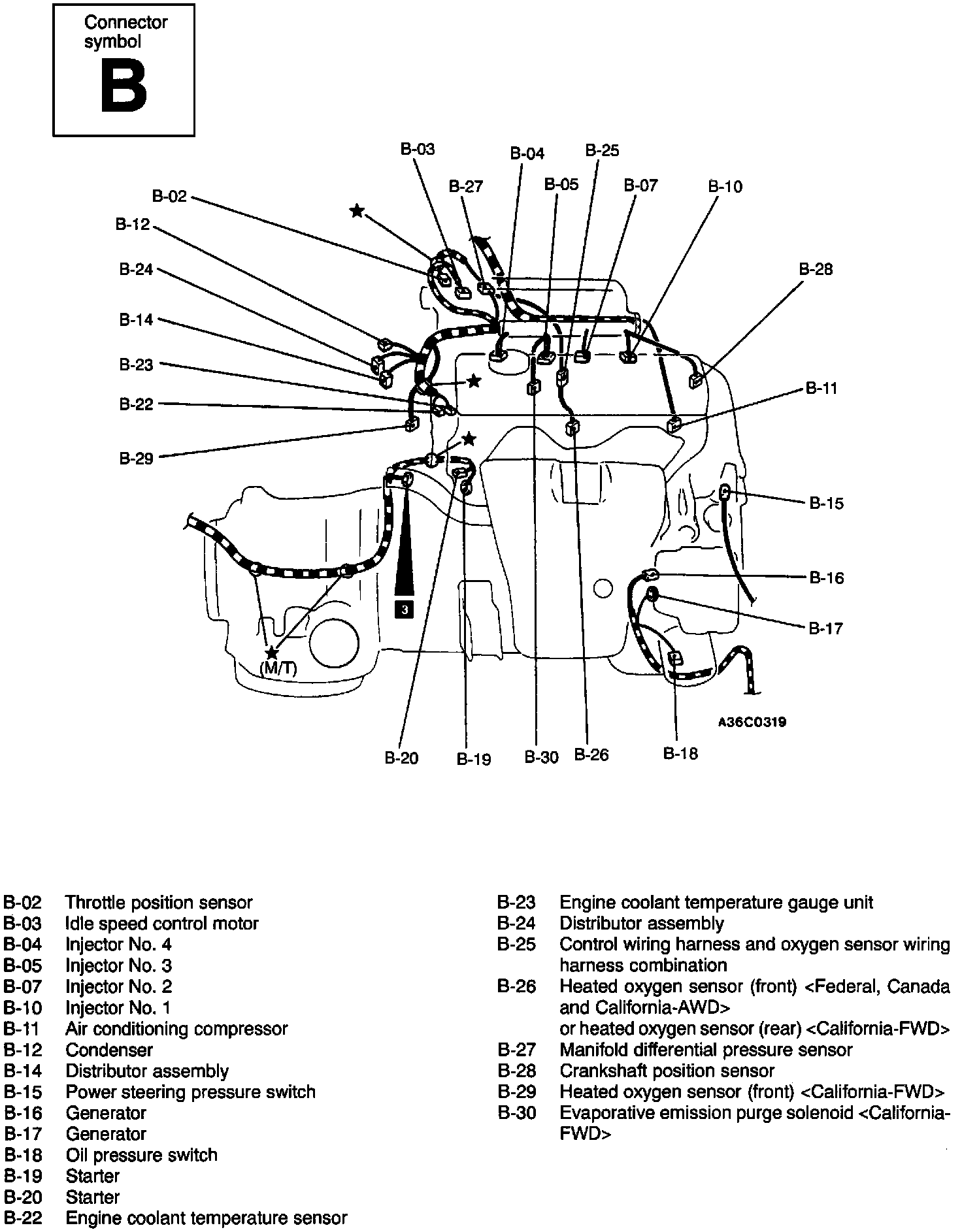

B Connectors - Engine And Transaxle Harness
B Connectors - Engine And Transaxle Harness
B Connectors - Engine And Transaxle:
