C Connectors - Dash Panel Harness
C Connectors - Dash Panel Harness

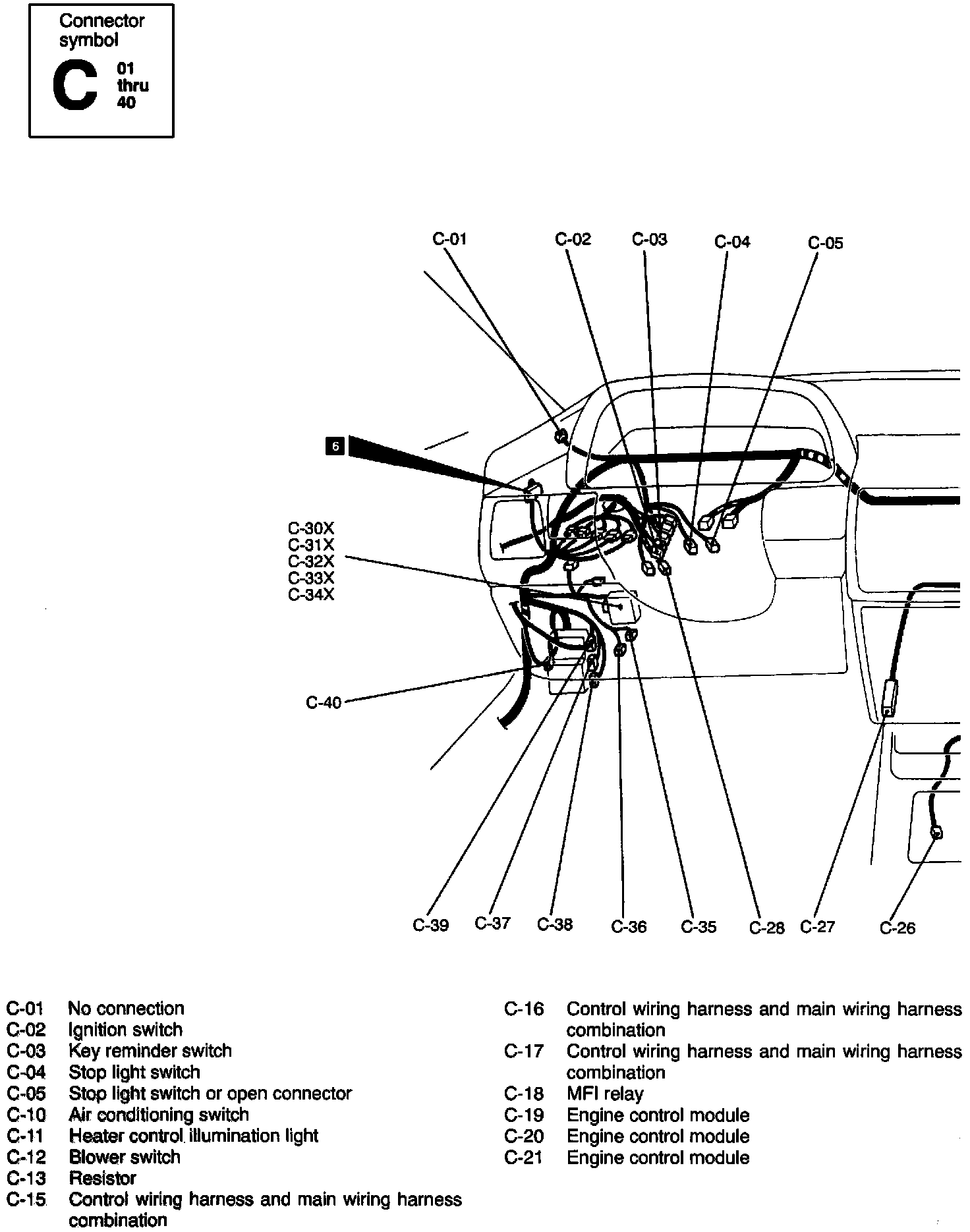

C Connectors - Dash Panel (Part 1 Of 4):

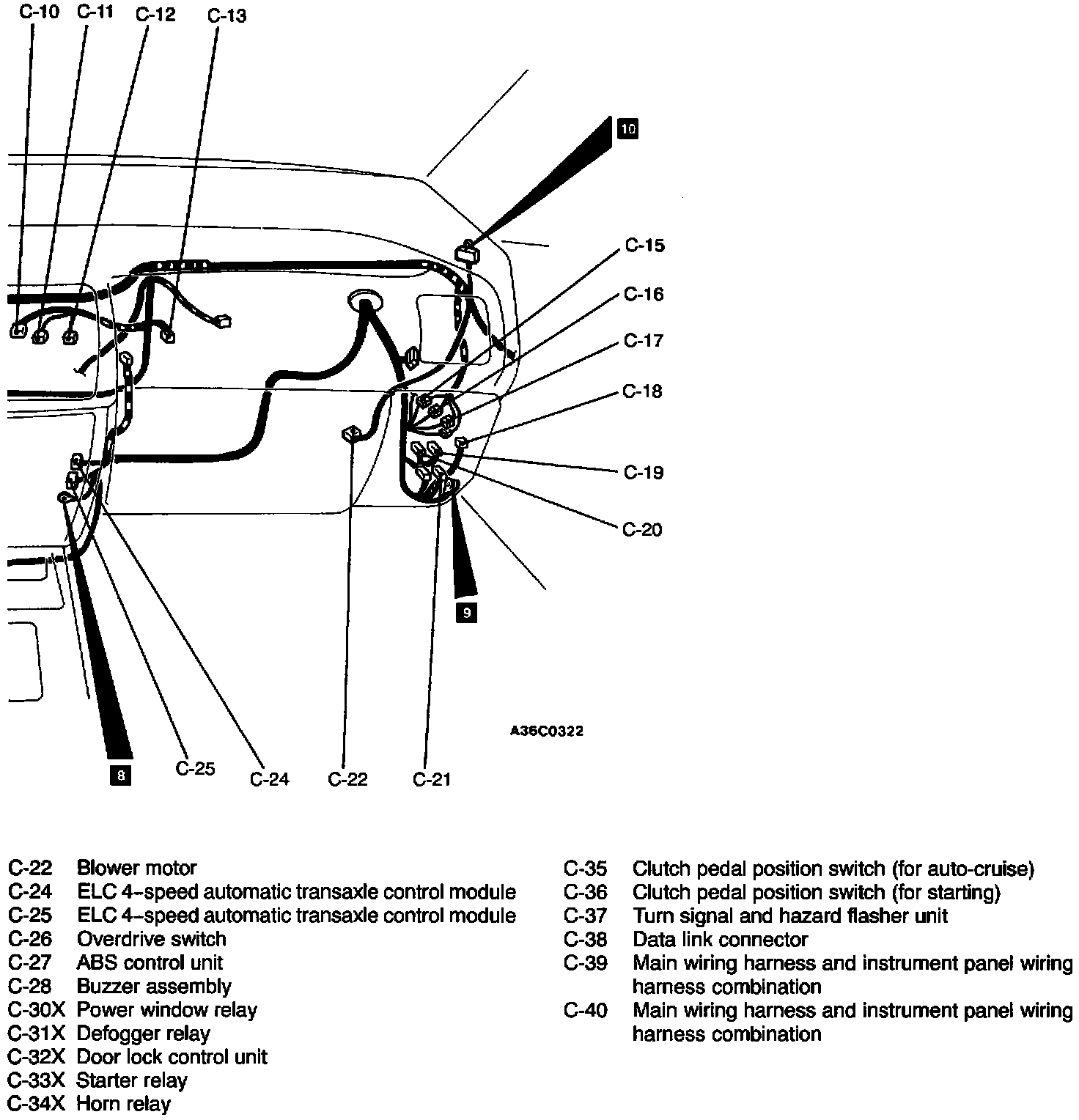

C Connectors - Dash Panel (Part 2 Of 4):

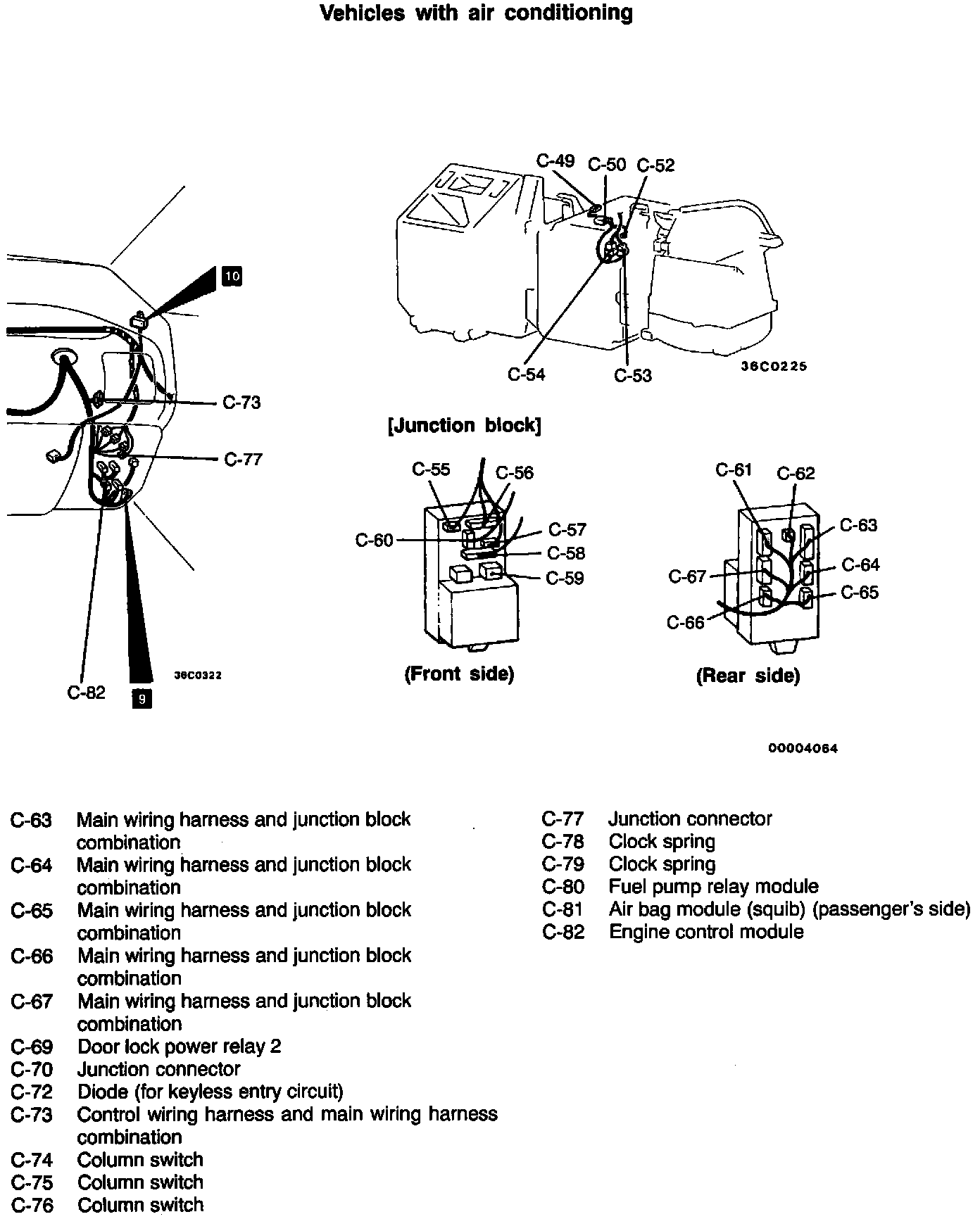

C Connectors - Dash Panel (Part 3 Of 4):

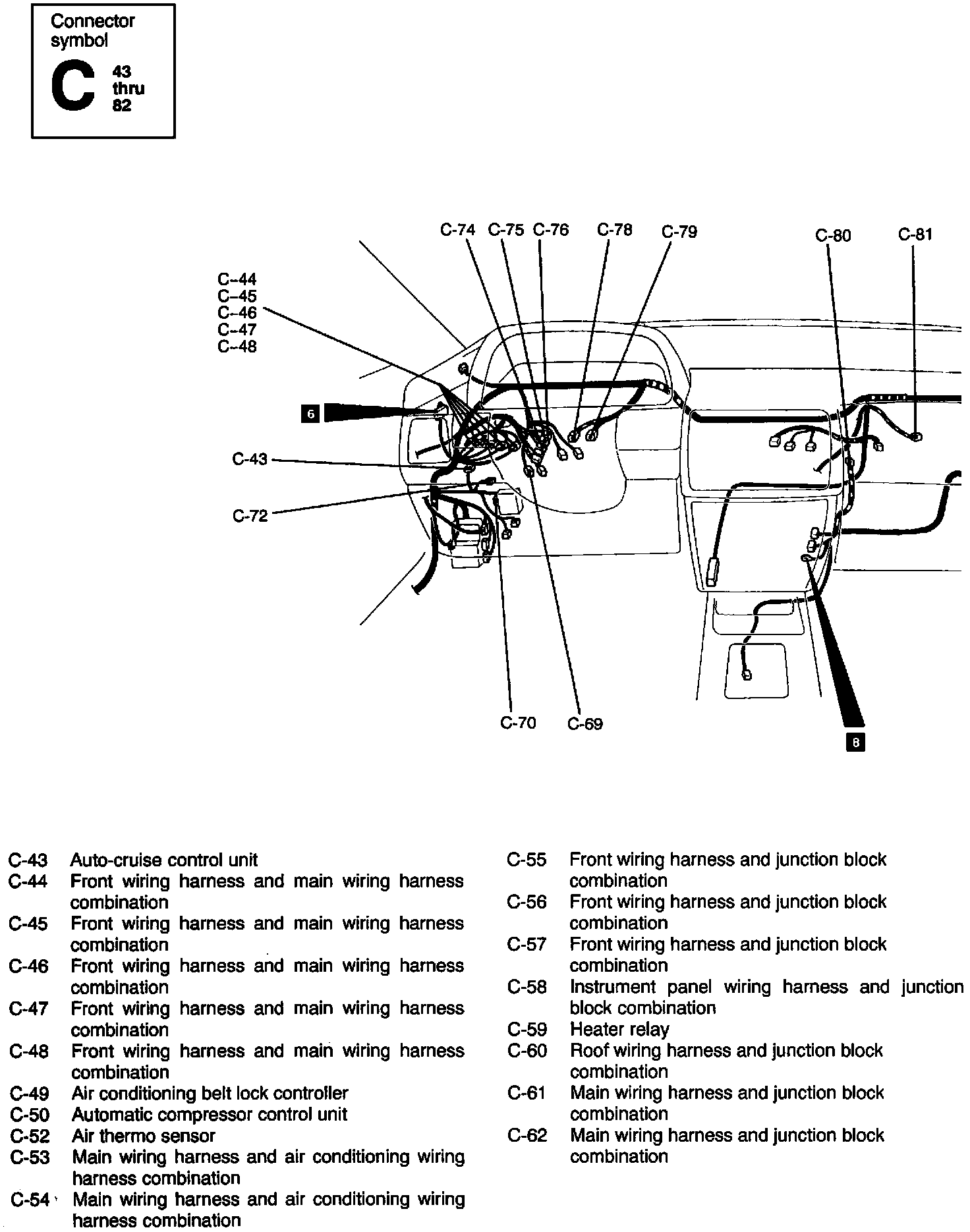

C Connectors - Dash Panel (Part 4 Of 4):
