Home
>>
Eagle
>>
1996
>>
Summit Wagon AWD L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

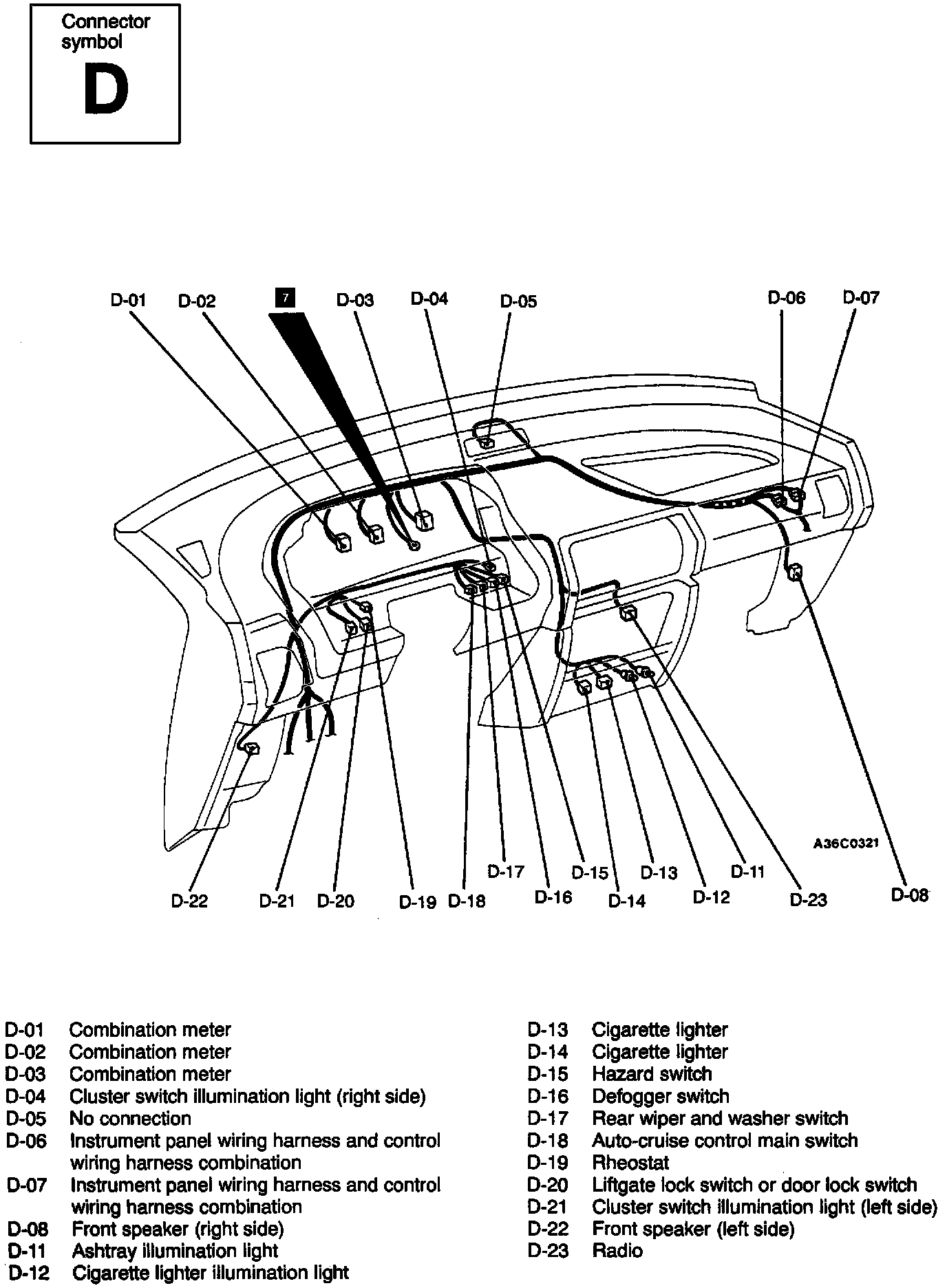

D Connectors - Instrument Panel Harness
D Connectors - Instrument Panel Harness
D Connectors - Instrument Panel:
