E Connectors - Interior Harness
E Connectors - Interior Harness

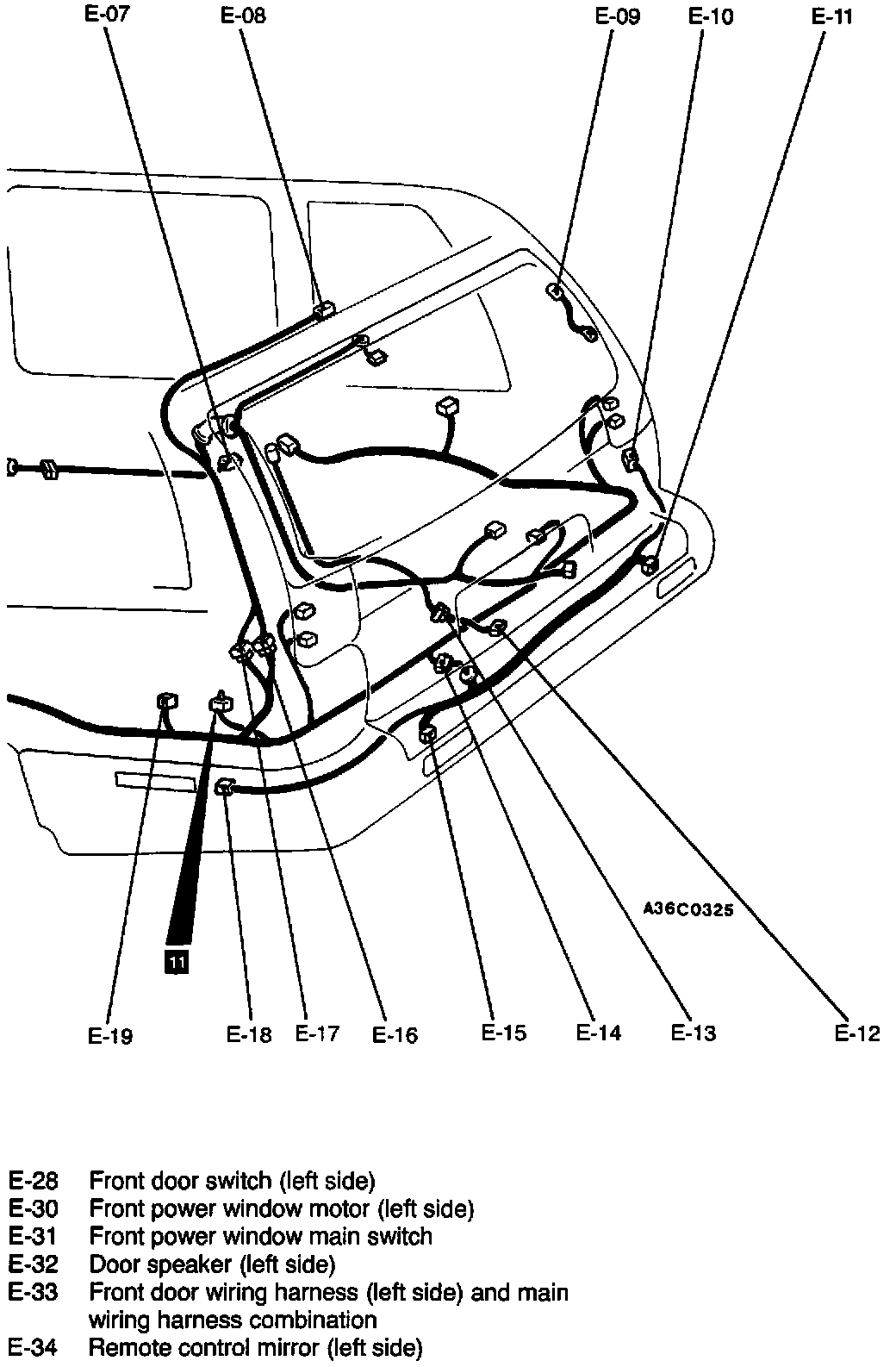

E Connectors - Interior (Part 1 Of 4):

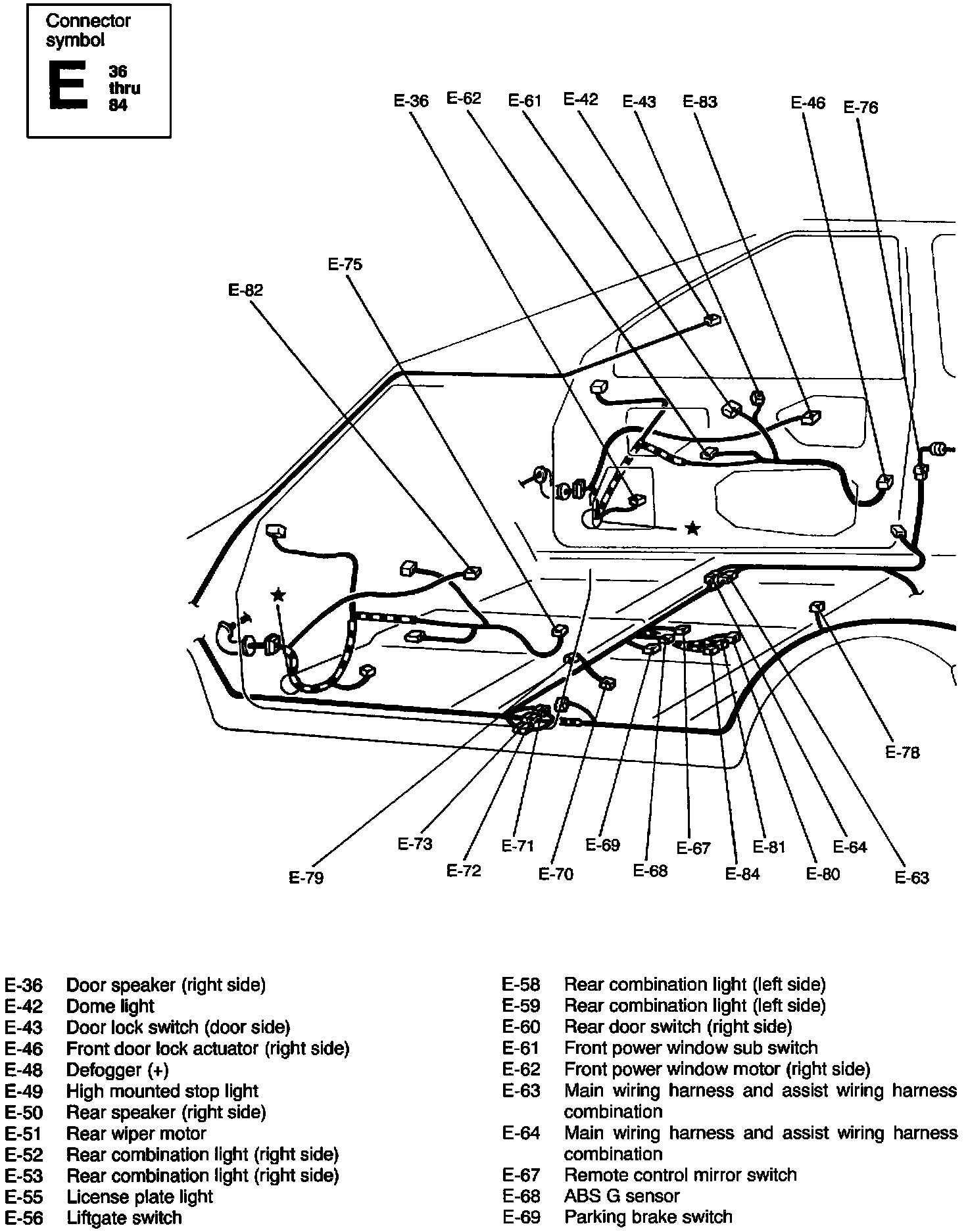

E Connectors - Interior (Part 2 Of 4):
E Connectors - Interior (Part 3 Of 4):
E Connectors - Interior (Part 4 Of 4):
