Evaporator Core: Service and Repair

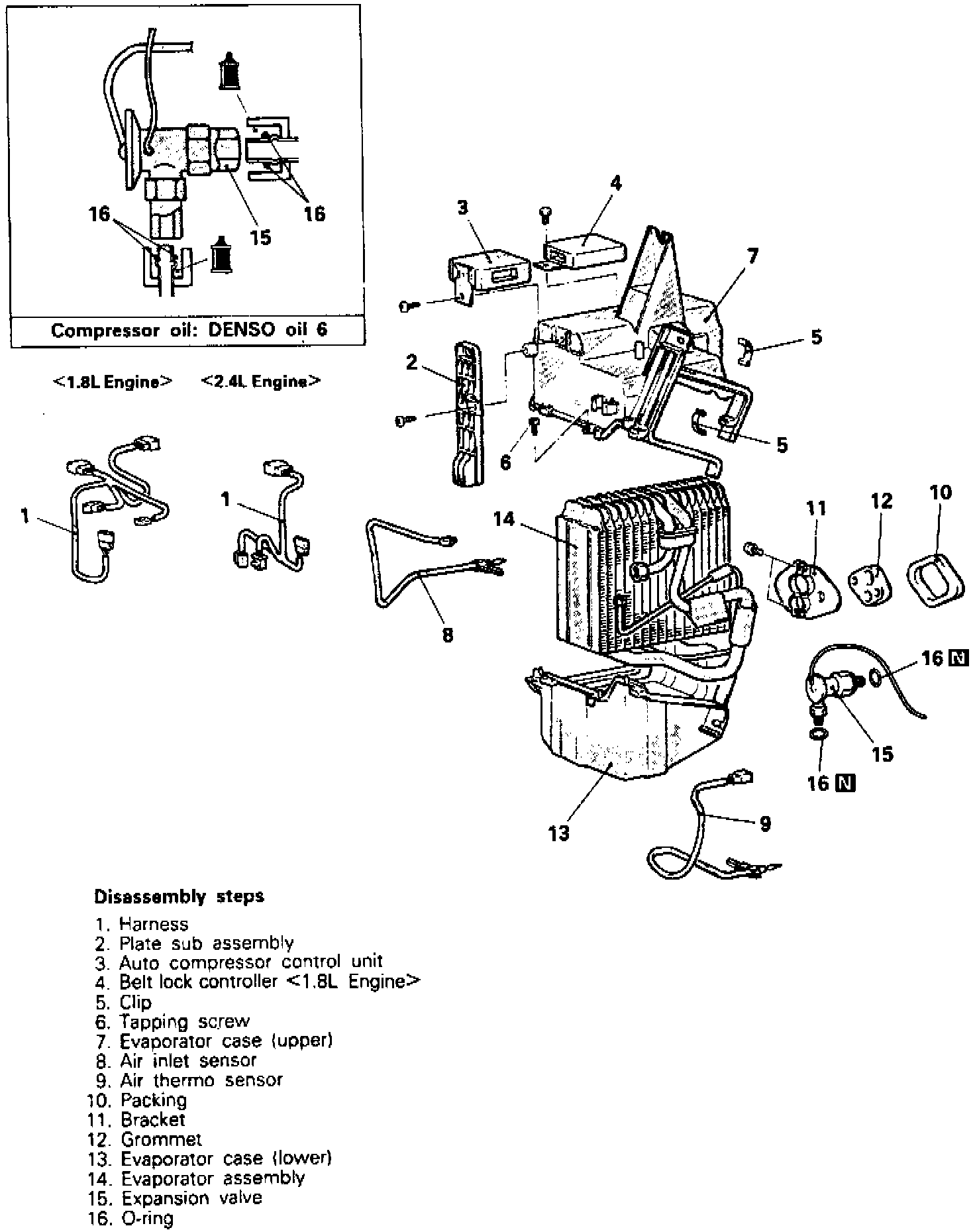

Fig. 11 Evaporator Core Replacement (part 1 Of 2):

Fig. 11 Evaporator Core Replacement (part 2 Of 2):

1. Discharge air conditioning system using suitable recovery system.
2. Remove and disassemble evaporator housing in numbered sequence shown, noting following:

a. Remove retaining clips by pushing center inward.
b. Remove evaporator housing clips using a suitable flat blade screwdriver.
c. Loosen flare nut on expansion valve using two wrenches.

3. Reverse procedure to install.
