Cigarette Lighter: Service and Repair

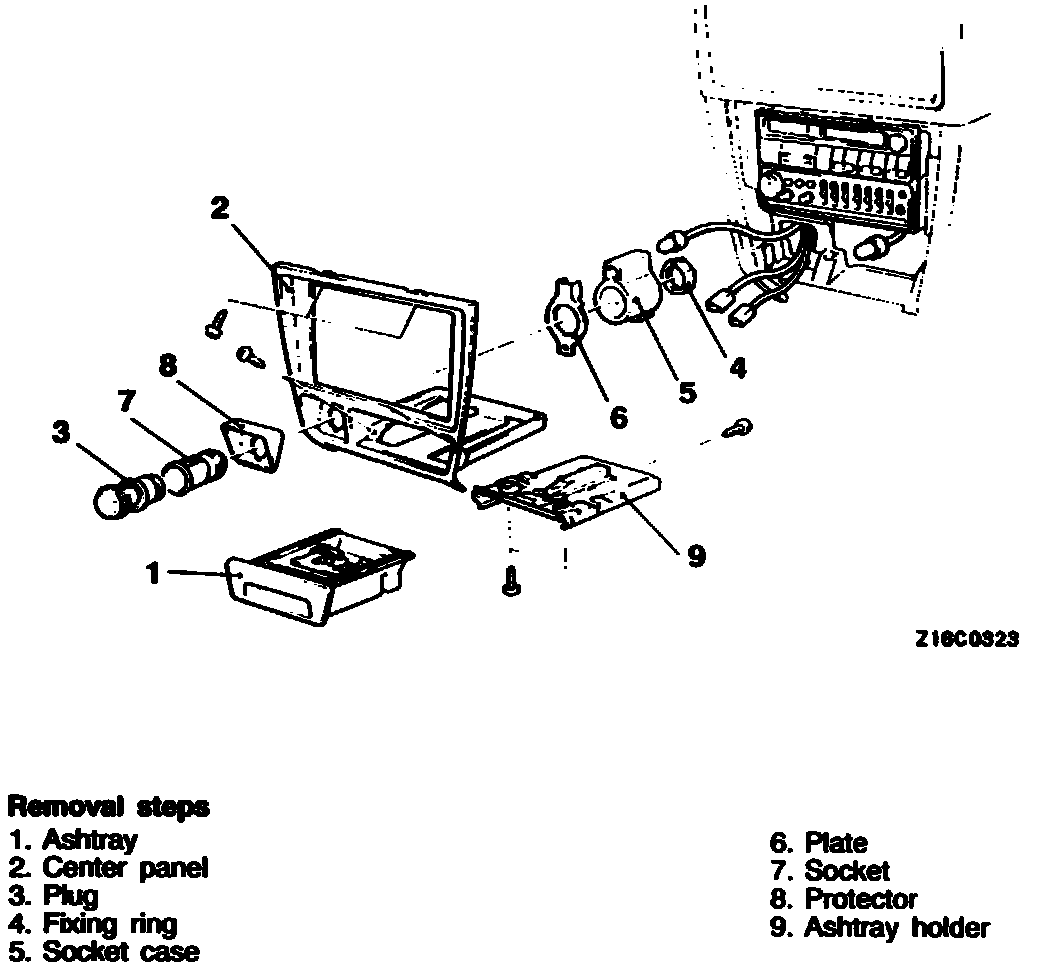

Cigarette Lighter - Removal And Installation:

REMOVE
1. Ashtray
2. Center panel
3. Plug
4. Fixing ring
5. Socket case
6. Plate
7. Socket
8. Protector
9. Ashtray holder

INSTALL
1. Ashtray holder
2. Protector
3. Socket
4. Plate
5. Socket case
6. Fixing ring
7. Plug
8. Center panel
9. Ashtray
