License Plate Lamp: Service and Repair

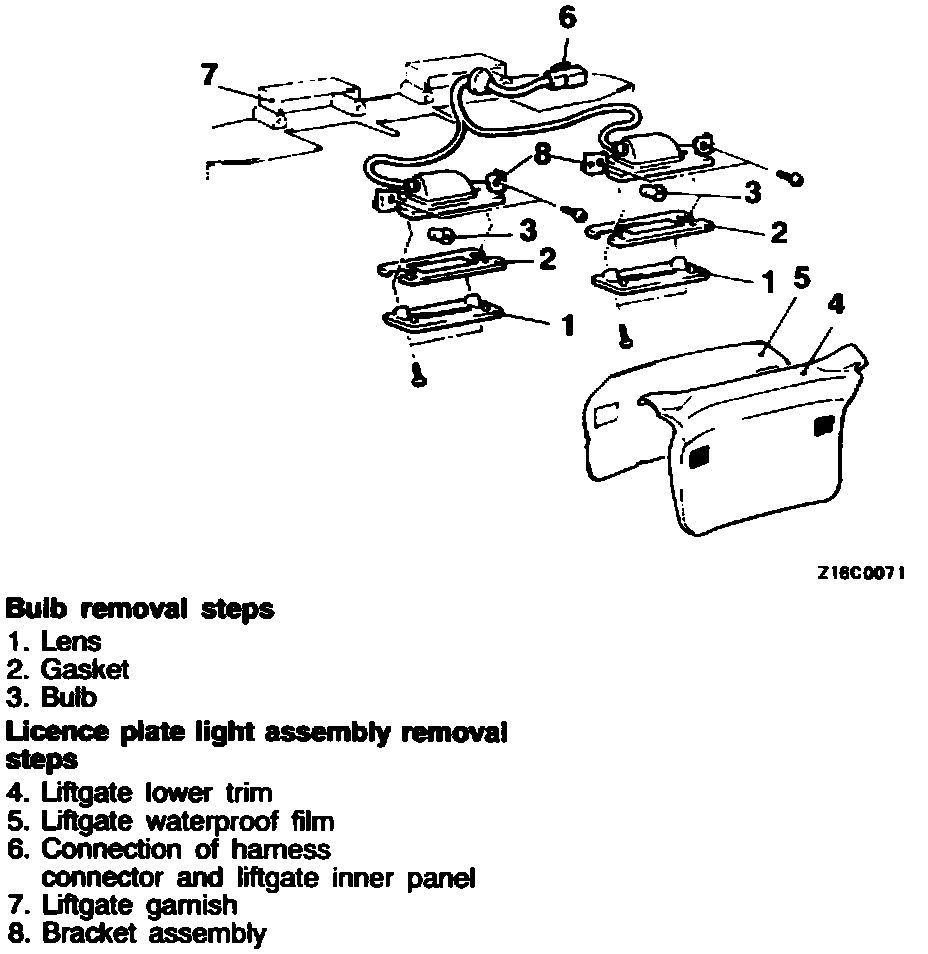

License Plate Light - Removal And Installation:

REMOVE
Bulb
1. Lens
2. Gasket
3. Bulb

License Plate Light Assembly
4. Liftgate lower trim
5. Liftgate waterproof film
6. Connection of harness connector and liftgate inner panel
7. Liftgate garnish
8. Bracket assembly

INSTALL
Bulb
1. Bulb
2. Gasket
3. Lens

License Plate Light Assembly
4. Bracket assembly
5. Liftgate garnish
6. Connection of harness connector and liftgate inner panel
7. Liftgate waterproof film
8. Liftgate lower trim
