Windshield Wiper and Washer

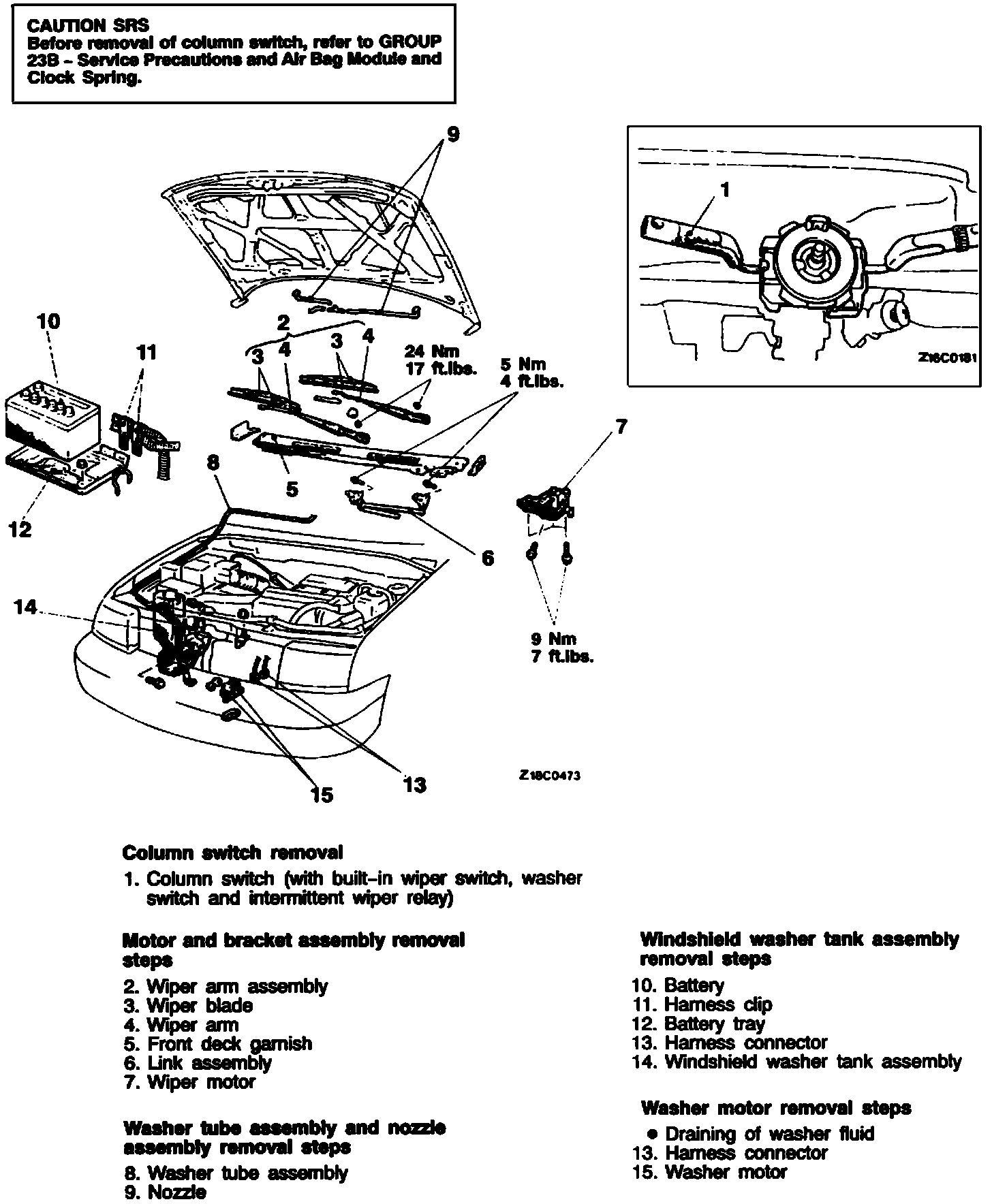

Windshield Wiper And Washer - Removal And Installation:

CAUTION: Before removal of column switch, refer to Service Precautions and Air Bag Module and Clock Spring.

REMOVE
Column Switch
1. Column switch (with built-in wiper switch, washer switch and intermittent wiper relay). Service and Repair

Motor and Bracket
2. Wiper arm assembly
3. Wiper blade
4. Wiper arm
5. Front deck garnish
6. Link assembly
7. Wiper motor

Washer Tube and Nozzle
8. Washer tube assembly
9. Nozzle

Windshield Washer Tank
10. Battery
11. Harness clip
12. Battery tray
13. Harness connector
14. Windshield washer tank assembly

Washer Motor
- Draining of washer fluid
13. Harness connector
15. Washer motor

INSTALL
Column Switch
1. Column switch (with built-in wiper switch, washer switch and intermittent wiper relay) Service and Repair

Motor and Bracket
2. Wiper motor
3. Link assembly
4. Front deck garnish
5. Wiper arm
6. Wiper blade
7. Wiper arm assembly

Washer Tube and Nozzle
8. Nozzle
9. Washer tube assembly

Windshield Washer Tank
10. Windshield washer tank assembly
11. Harness connector
12. Battery tray
13. Harness clip
14. Battery

Washer Motor
13. Washer motor
15. Harness connector
- Draining of washer fluid
