Fuse and Fusible Link Locations
>>

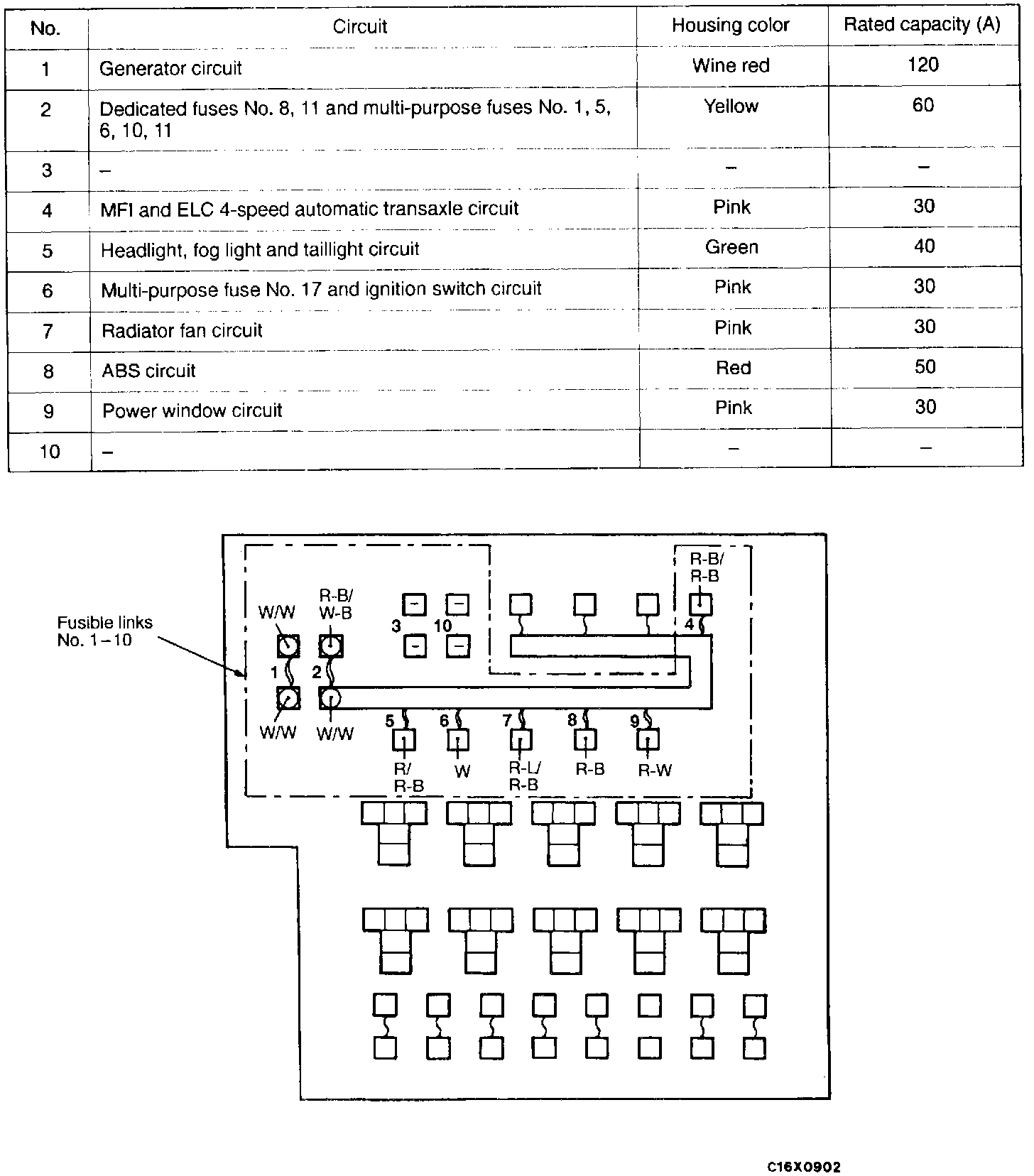

Fusible Link (Relay Box In Engine Compartment)
Fusible Link (Relay Box In Engine Compartment)
Fusible Links (Relay Box In Engine Compartment):
