Home >> Eagle >> 1996 >> Talon FWD L4-1997cc 2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Components >> Fuse and Fusible Link Locations >> Relay Box In Engine Compartment

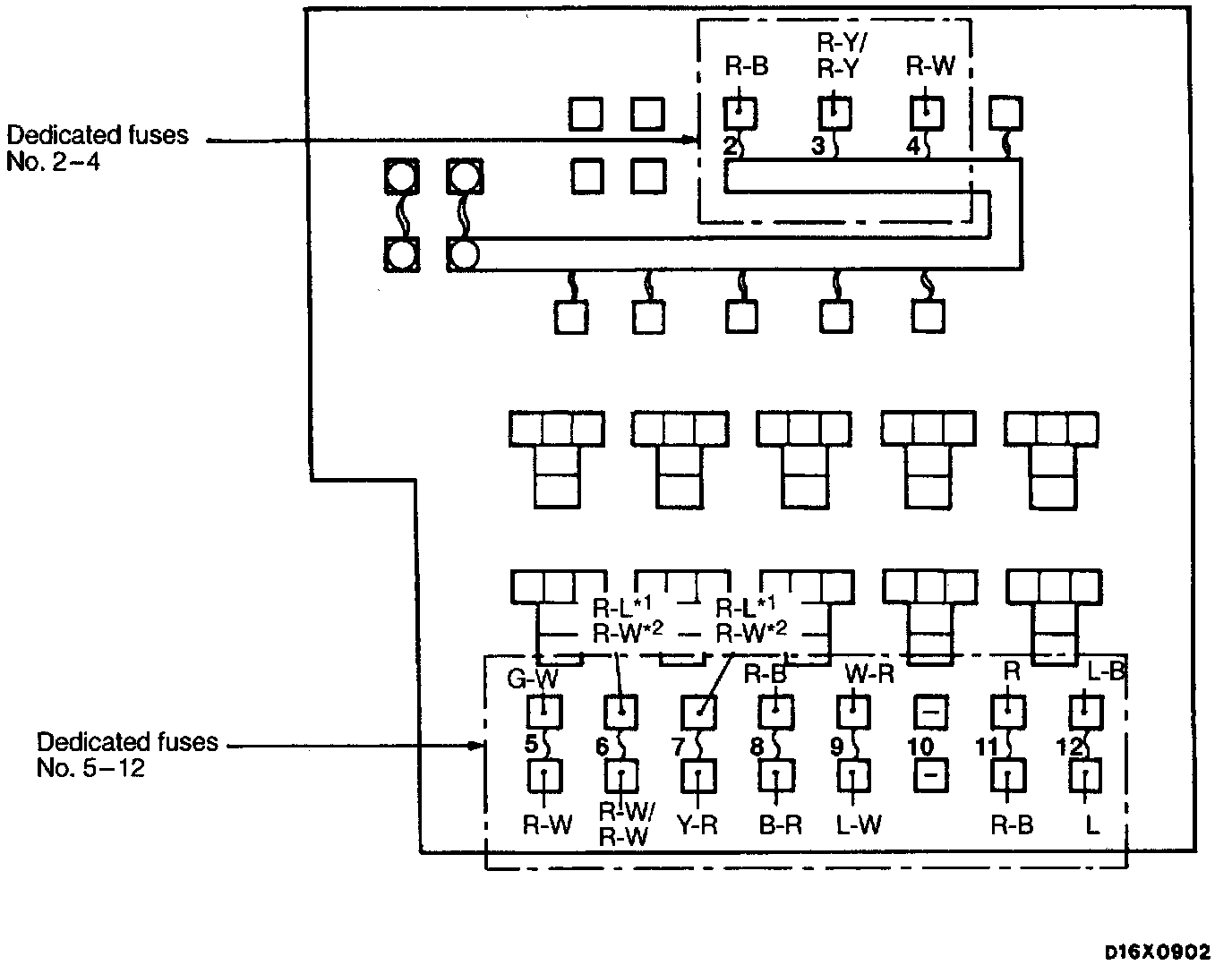

Relay Box In Engine Compartment

Dedicated Fuses (Relay Box In Engine Compartment):



Dedicated Fuses (Relay Box In Engine Compartment):
