Eagle
>>
1996
>>
Talon FWD L4-1997cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
>>
Back-Up Lamp Relay
Back-Up Lamp Relay

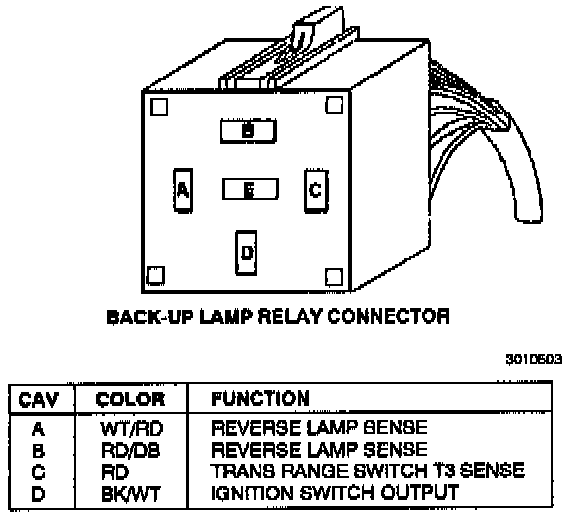

Back-up Lamp Relay Connector:
