Low Fuel Lamp/Indicator

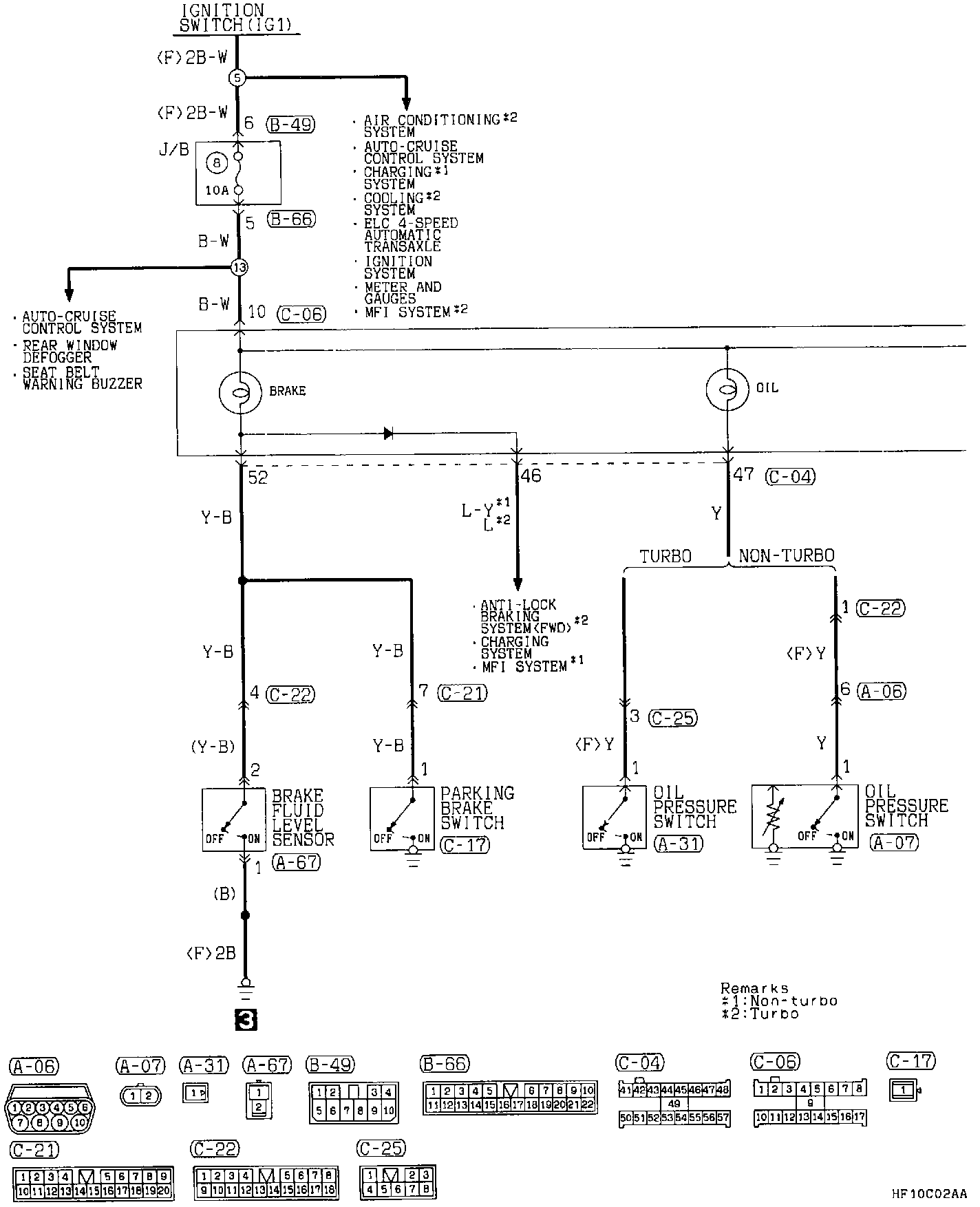

Brake, Oil Pressure And Low Fuel Level Warning Light Circuit (Part 1 Of 2):

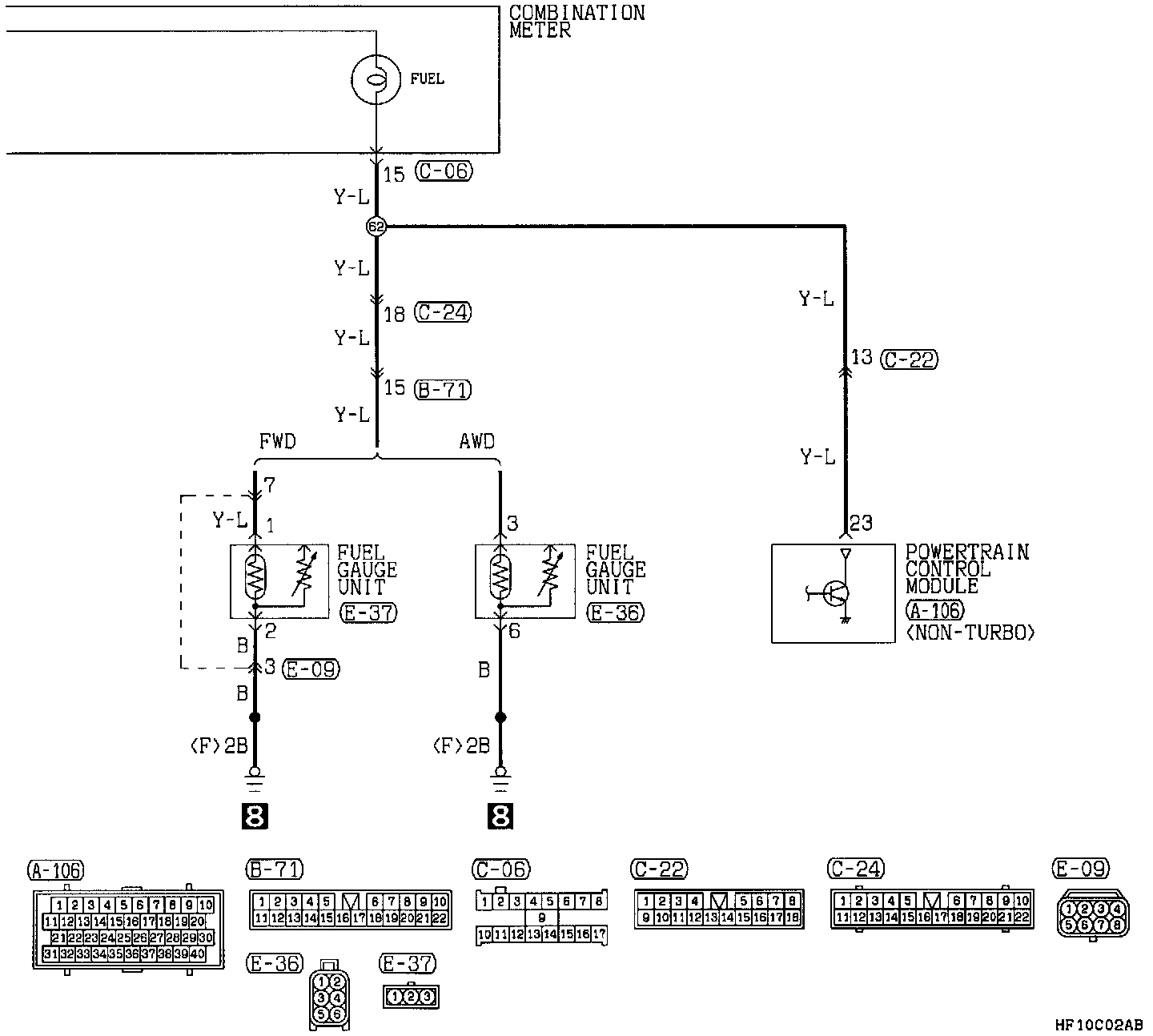

Brake, Oil Pressure And Low Fuel Level Warning Light Circuit (Part 2 Of 2):
