Home >> Eagle >> 1996 >> Talon FWD L4-1997cc 2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Harness >> C Connectors - Instrument Panel And Floor Console Harness

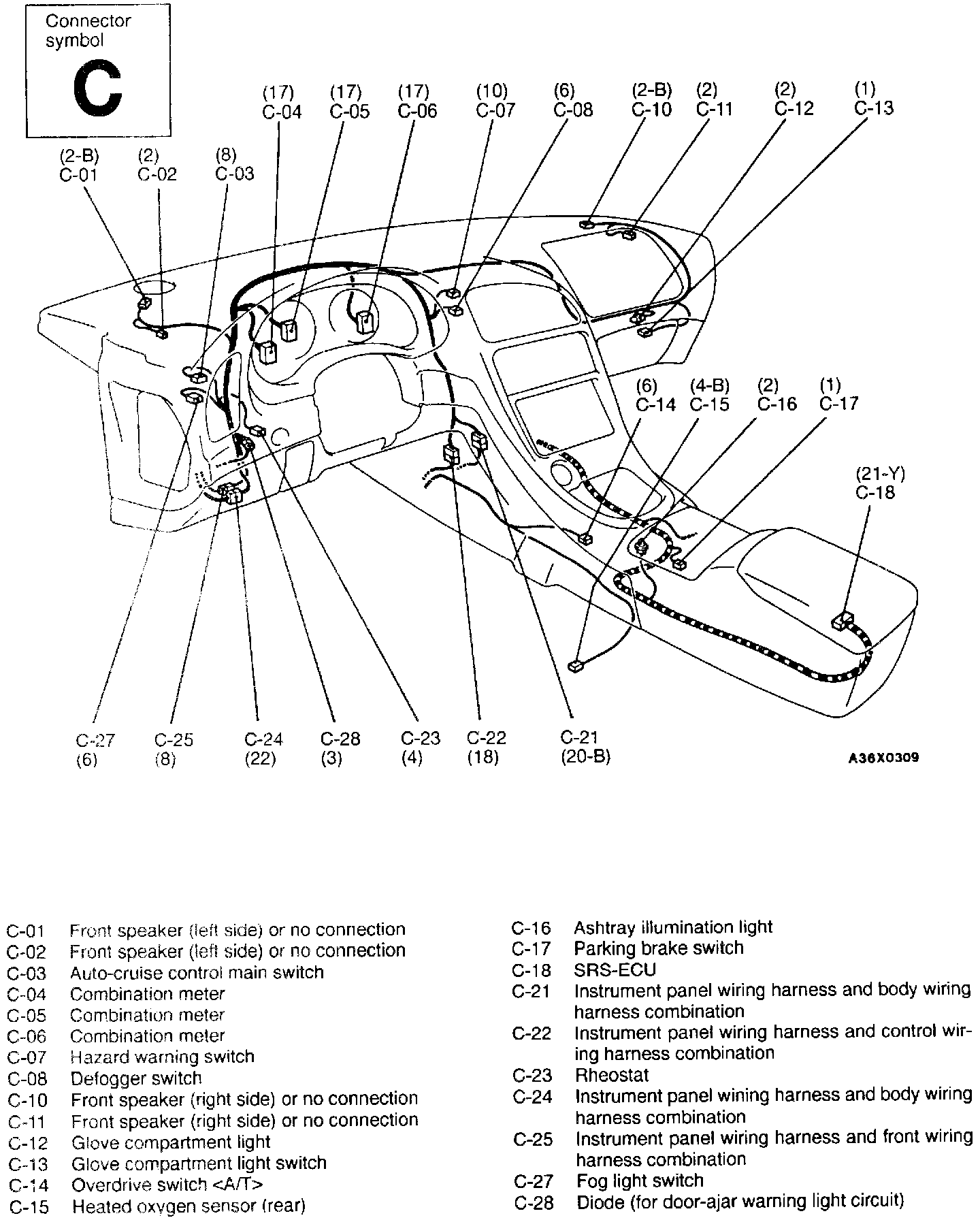

C Connectors - Instrument Panel And Floor Console Harness

C Connectors - Instrument Panel And Floor Console:
