Fuel Tank: Service and Repair

Pre-removal operation
^ Release fuel pressure from lines & hoses
^ Drain fuel from tank

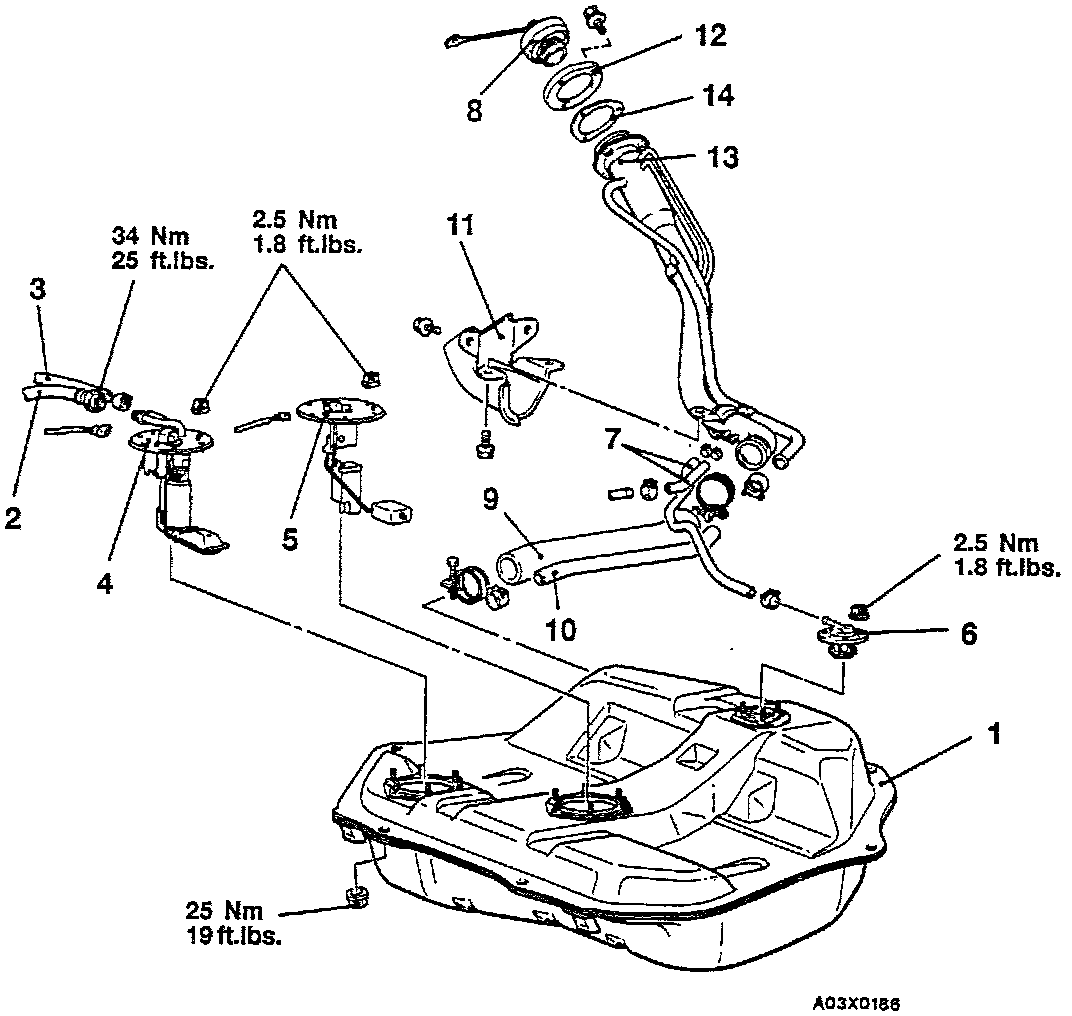

Removal steps
1. Fuel tank
2. High-pressure fuel hose
3. Return hose
4. Fuel pump assembly
5. Fuel gauge unit
6. Fuel cut-off valve assembly
7. Vapor hose
8. Fuel tank filler tube cap
9. Filler hose
10. Vapor hose
11. Fuel tank filler tube protector
12. Reinforcement
13. Fuel tank filler tube assembly
14. Packing

NOTE: When replacing the fuel pump assembly or the fuel gauge unit only, it is possible to work from the service holes underneath the rear seat cushion without having to remove the fuel tank.

Post-installation Operation
^ Refill fuel tank with clean fuel
^ Check for fuel leaks
