Stabilizer Bar: Service and Repair

Fig. 30 Stabilizer Bar Removal:

Remove stabilizer bar in numbered sequence, noting the following:
1. Reverse procedure to install, noting the following:
a. Set stabilizer bar so identification mark is at the left.

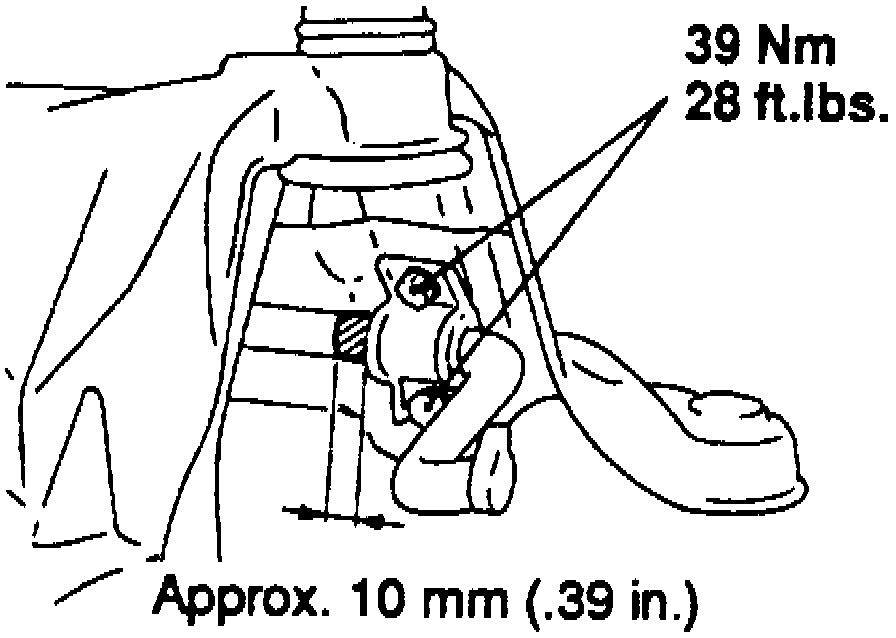

Fig. 31 Stabilizer Bar Bushing Alignment:

b. Install bushing, ensuring the dimension is as shown.
