Wiper and Washer Systems: Service and Repair

Winshield Wiper And Washer - Removal And Installation:

REMOVE

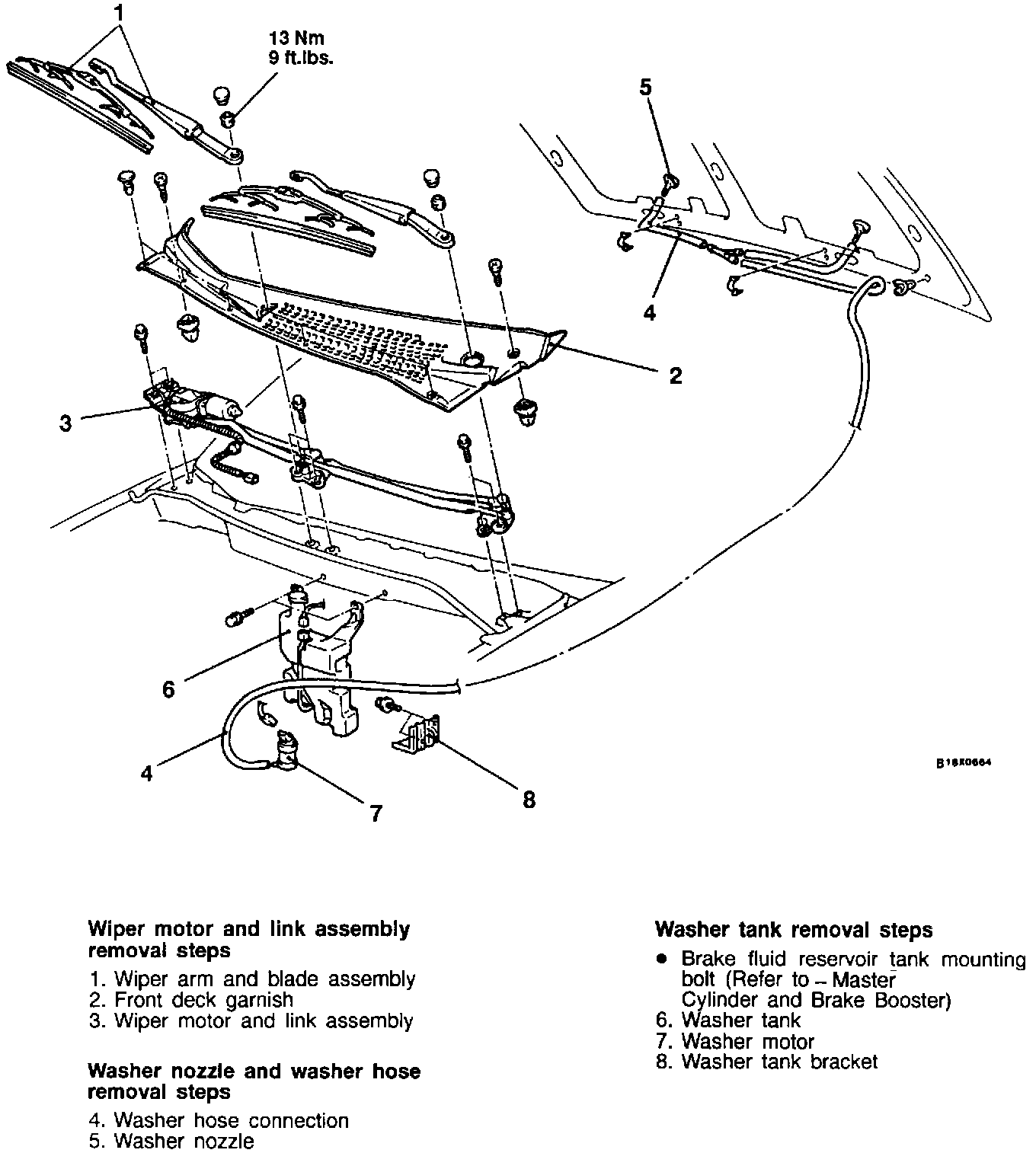

Motor And Link Assembly
1. Wiper arm and blade assembly
2. Front deck garnish
3. Motor and link assembly


Washer Nozzle
4. Washer hose connection
5. Washer nozzle

Washer Tank
- Brake fluid reservoir tank mounting bolt
6. Windshield washer tank
7. Washer hose
8. Washer motor
9. Washer tank bracket

INSTALL
Motor And Link Assembly
1. Motor and link assembly
2. Front deck garnish
3. Wiper arm and blade assembly

Washer Nozzle
4. Washer nozzle
5. Washer hose connection

Washer Tank
6. Washer tank bracket
7. Washer motor
8. Washer hose
9. Windshield washer tank
- Brake fluid reservoir tank mounting bolt
