Operation CHARM
: Car repair manuals for everyone.
Home
>>
Eagle
>>
1996
>>
Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Charging System (CH) Tests
Charging System (CH) Tests
Related Images:

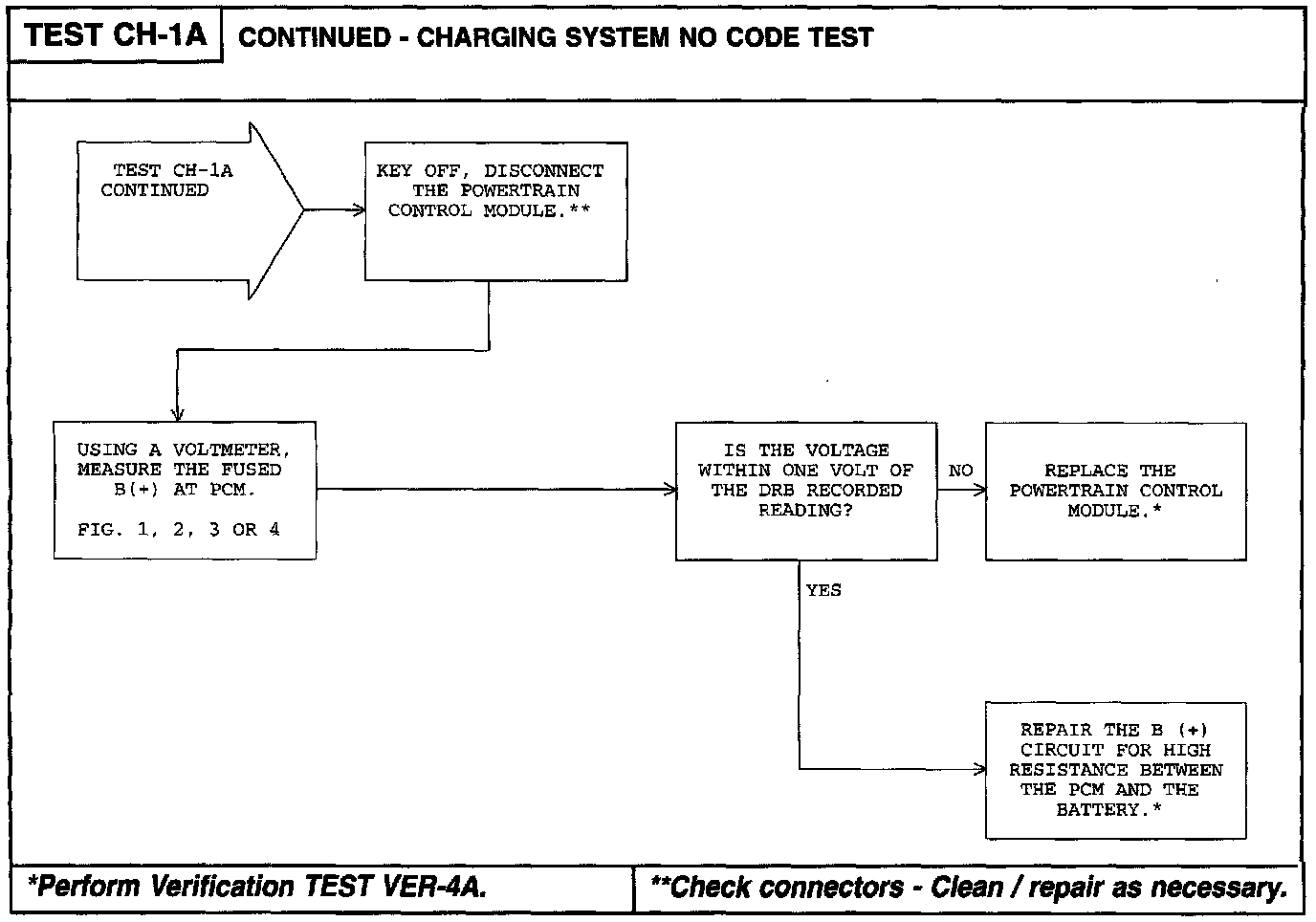

Flow Chart:
Related Images:
Flow Chart:
Related Images:
Flow Chart:
